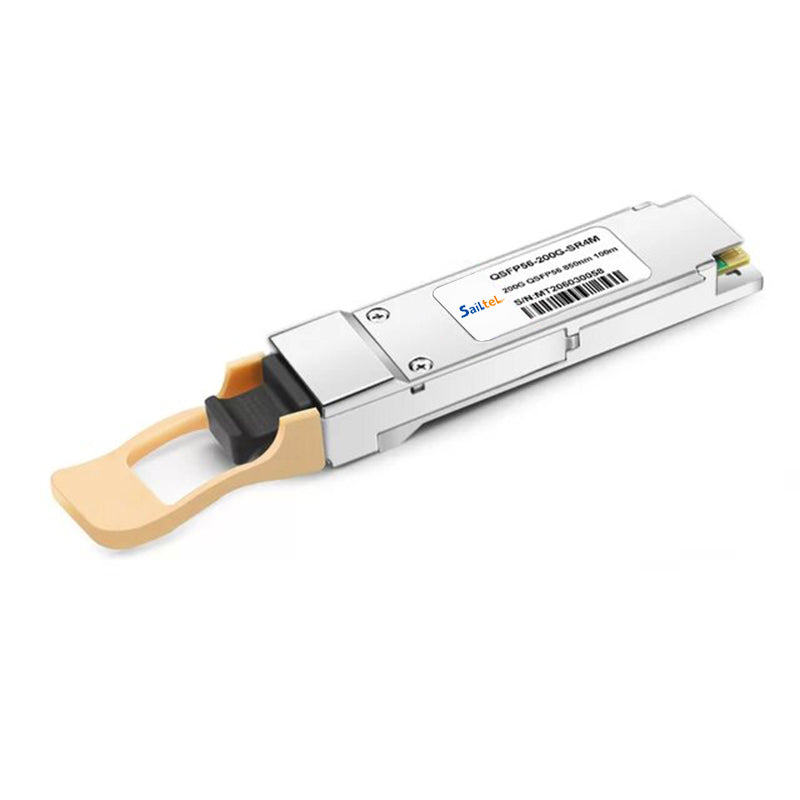

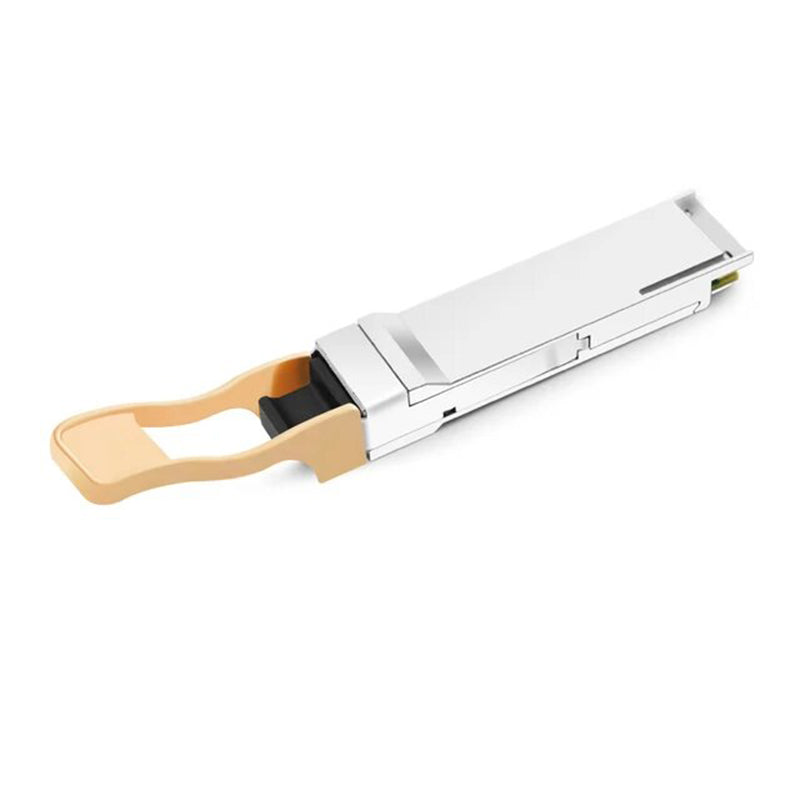

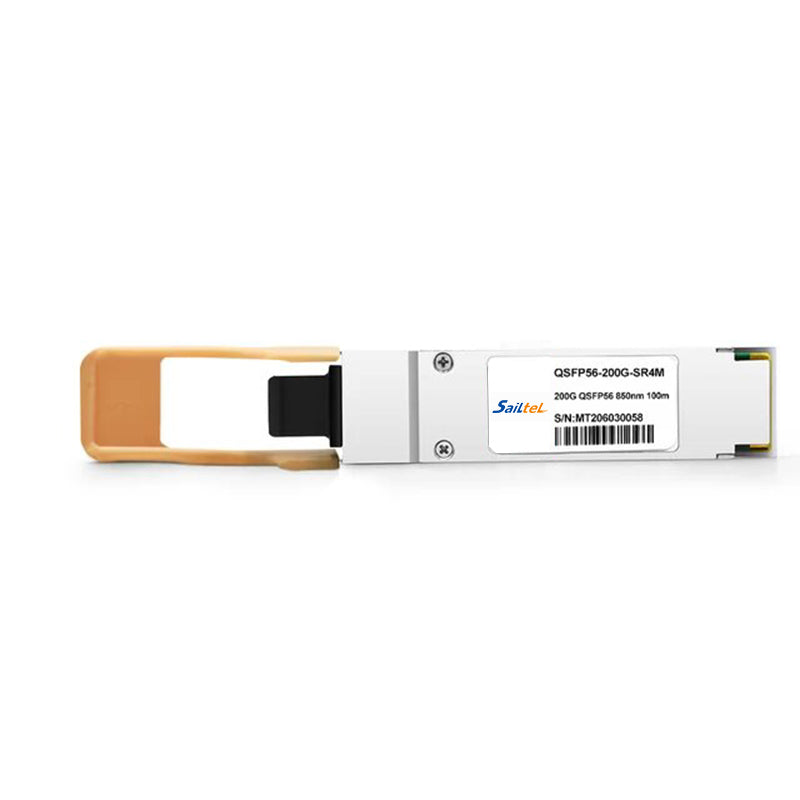

200G QSFP56 SR4 PAM4 Transceiver 850nm MTP/MPO-12 OM3/OM4 100m with FEC DDM

1 Description

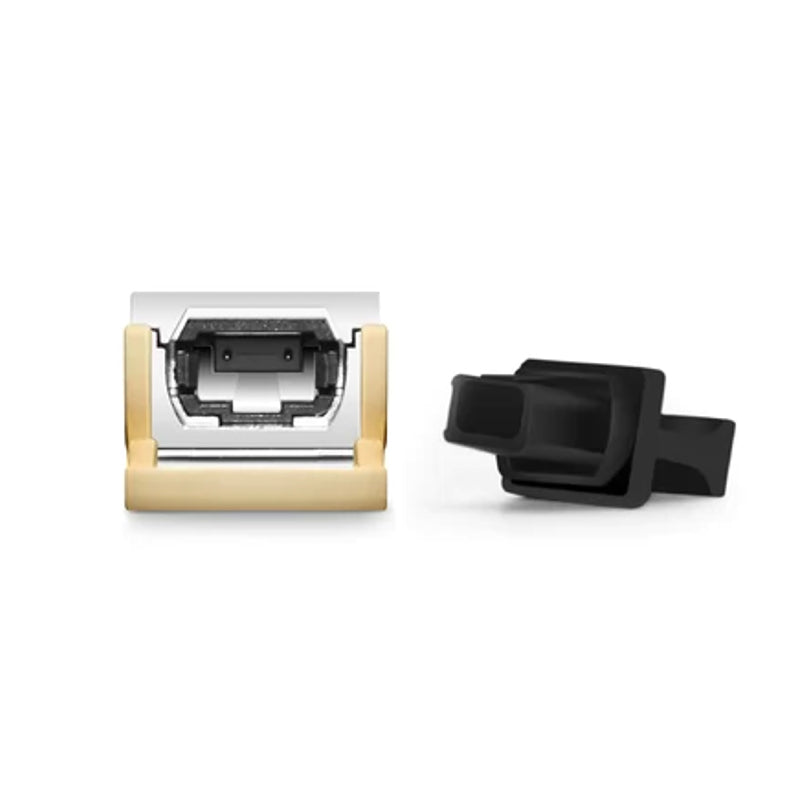

The 200G SR4 full-duplex optical module offers 4 independent transmit and receive channels, each capable of 53.125Gb/s operation for an aggregate data rate of 200Gb/s on 70 meters of OM3 multi-mode fiber. An optical fiber cable with an MTP/MPO-12 APC connector can be plugged into the QSFP56 SR4 module receptacle. The central wavelengths of all 4 parallel lanes are 850nm. It contains an optical MPO-12 APC connector for the optical interface and a 38-pin connector for the electrical interface.

2 Product Features

• Hot-pluggable QSFP56 Form Factor
• High-speed Electrical Compliant with IEEE802.3bs 200GBASE-SR4 and IEEE 802.3cd
• 4 channels full-duplex transceiver module
• 5 Gbit/s aggregate bit rate
• Maximum link length of 70 m OM3, 100 m OM4 with FEC
• Single MPO-12/UPC receptacle
• Maximum power dissipation < 5 W
• Supports 200G Ethernet, InfiniBand HDR, data center, and cloud networks

3 Application Scenario

• 200G InfiniBand HDR
• 200G Ethernet
• Data Center Interconnect
