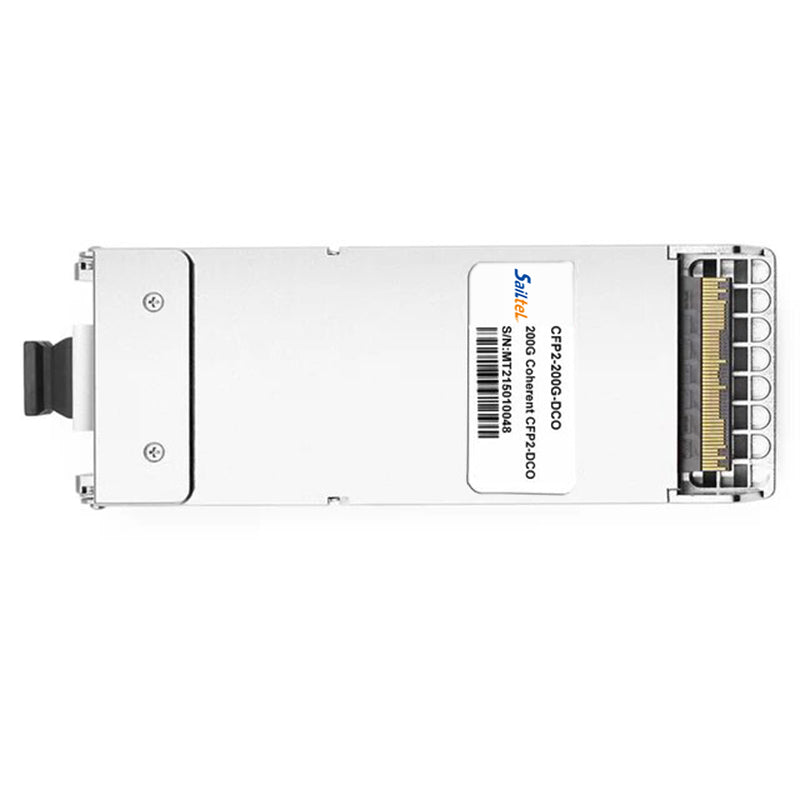

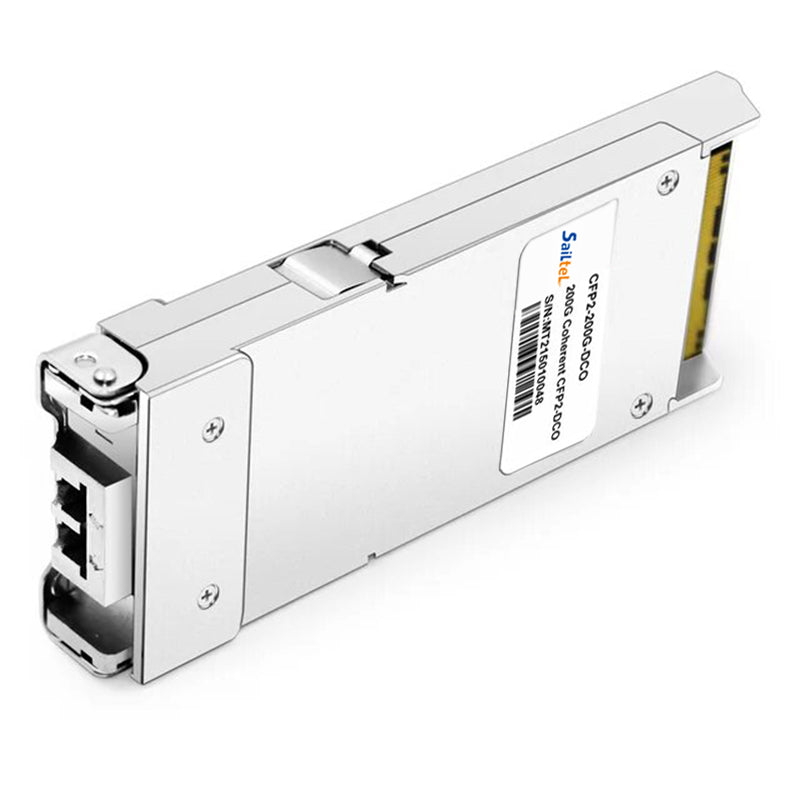

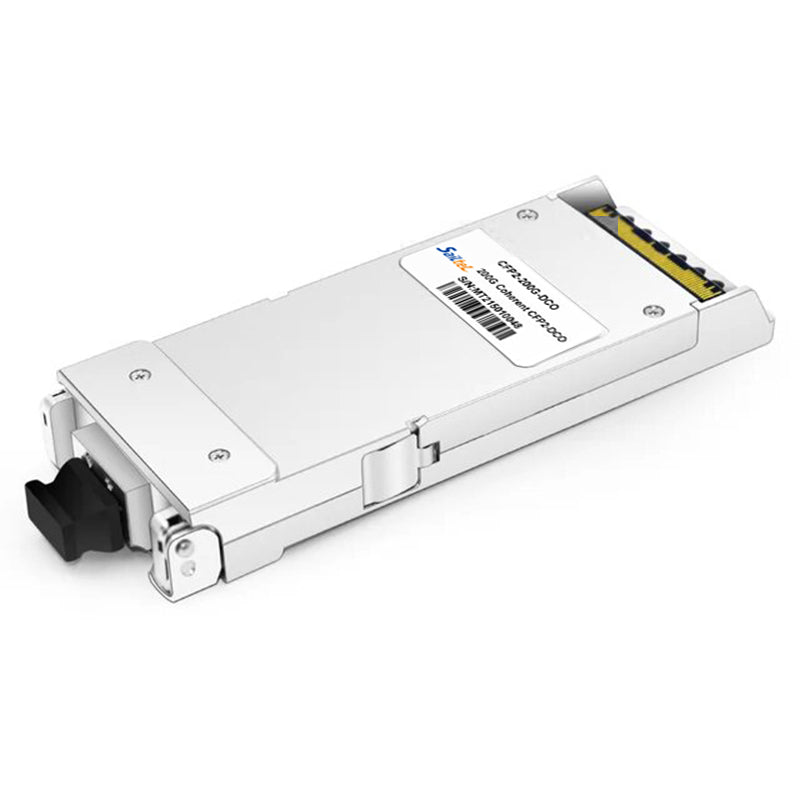

CFP2 200G DCO Transceiver 200G Coherent CFP2-DCO C-band Tunable

1 Description

The CFP2 200G DCO Transceiver is a CFP2 MSA-compliant digital coherent optical module designed for line-side trunk DWDM data center interconnect (DCI), metro carrier, and regional/long-haul applications. The CFP2-DCO module uses a general-purpose C-band flexible grid laser source, providing transmitter and local oscillator signals, calibrated to provide 100 MHz frequency accuracy and ±6 GHz local off-grid tuning.

2 Product Features

• Low latency HD-FEC/SD-FEC

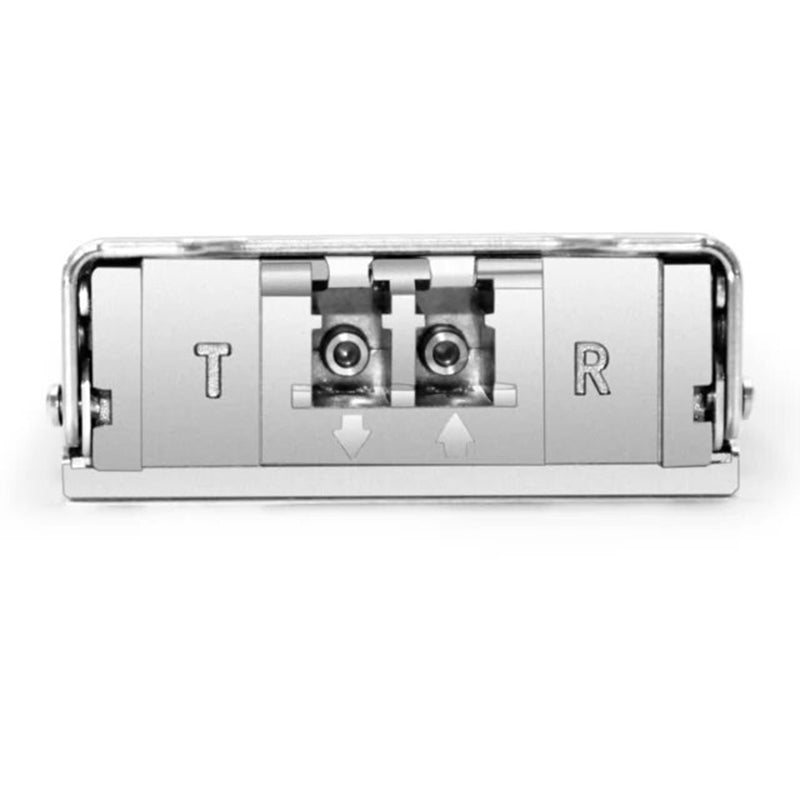

• Duplex LC receptacles
• Full C-band 50GHz ITU-T transmitter
• 3V power supply voltage
• 104-pin CFP2 MSA-compliant connector
• Compliant with CFP2 MSA
• Used in metro carriers, access, and Cloud/DCI applications
• Supports 100 Gbps DP-QPSK and 200 Gbps DP-8QAM/PCS-16QAM modulations

3 Application Scenario

• Metro/regional ROADM networks
• Data Center Interconnect

4 Order Information
