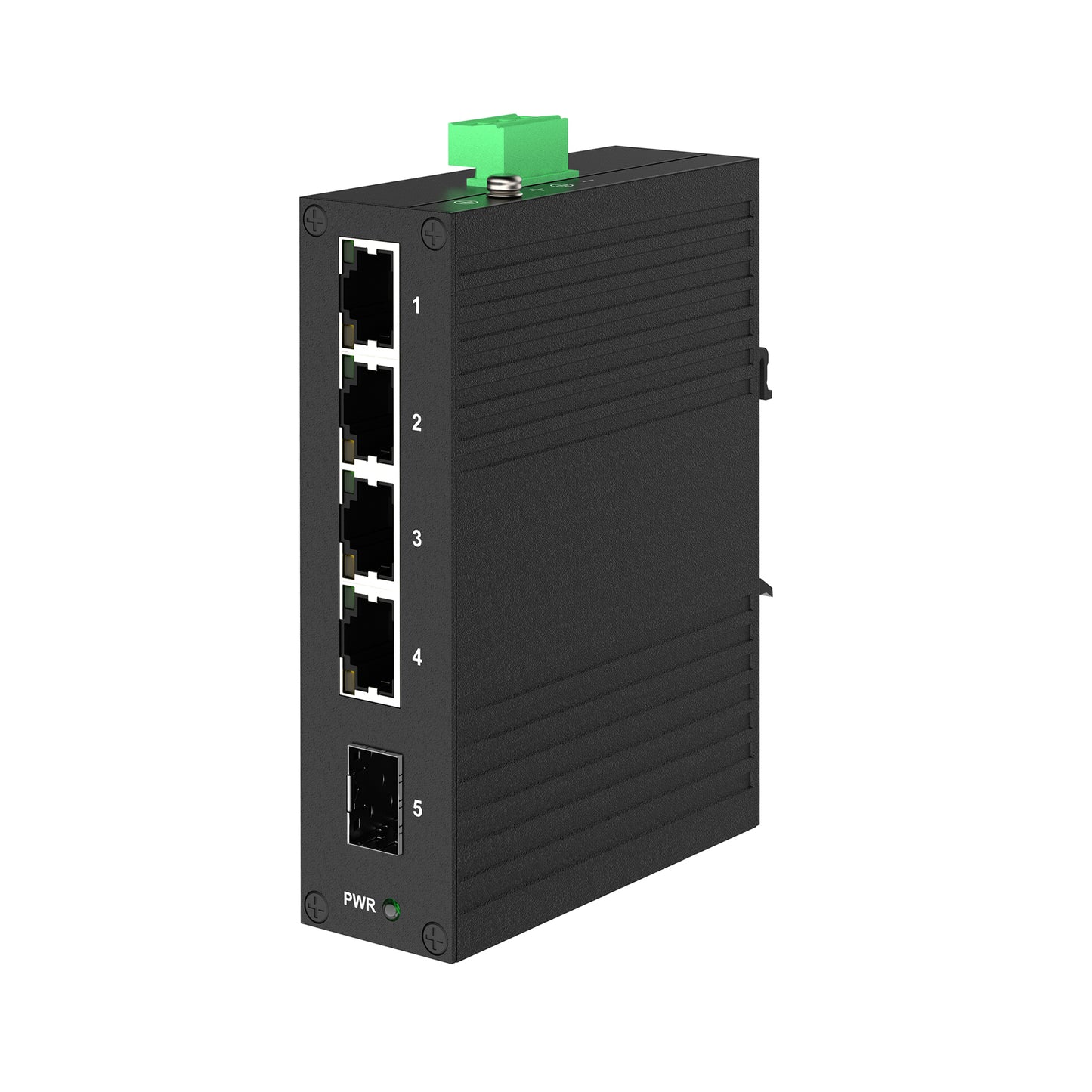

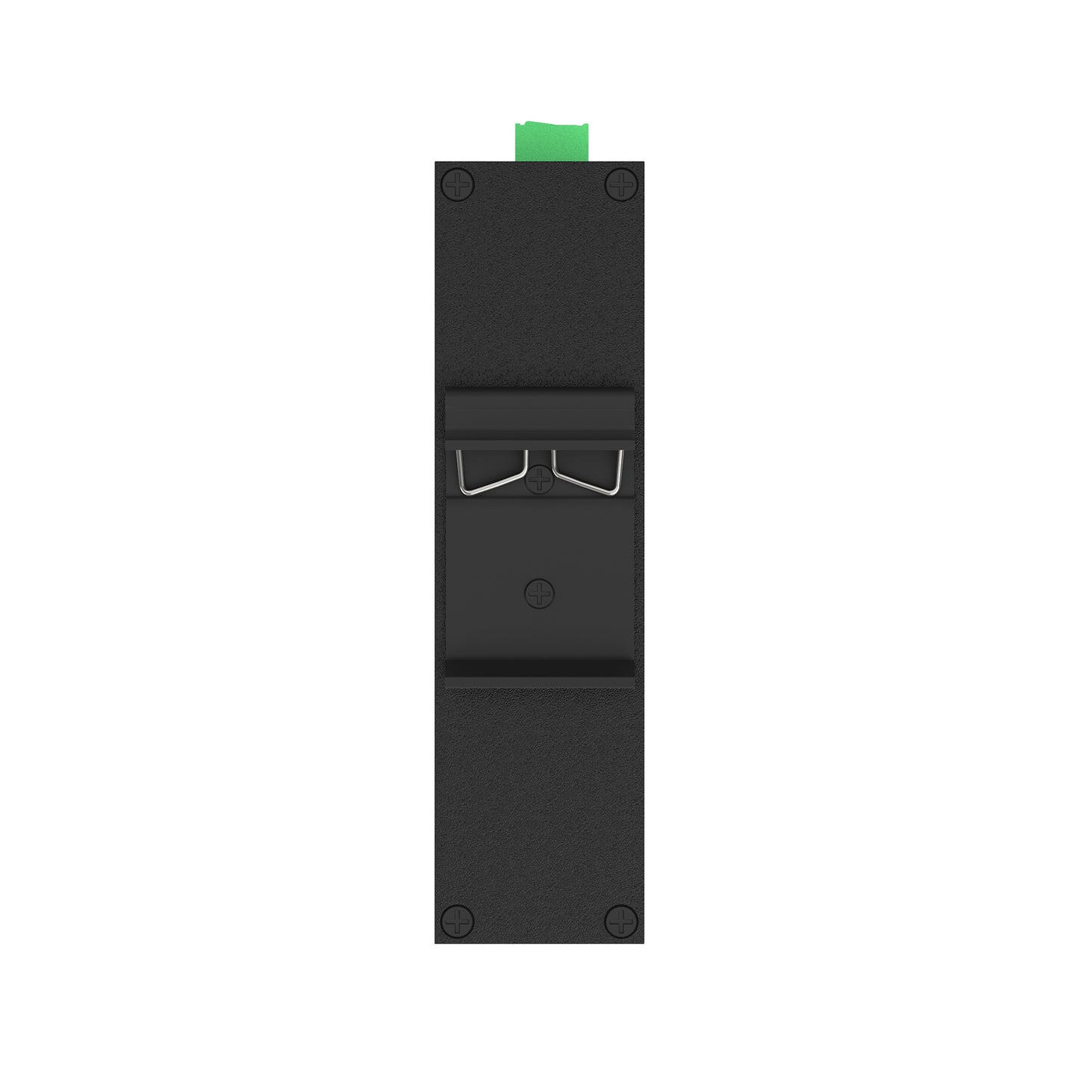

IDS1004F1 4FE+1SFP Din-rail Unmanaged Industrial Ethernet Switch
IDS1004F1 4FE+1SFP Din-rail Unmanaged Industrial Ethernet Switch
1 Description
The IDS1004F1 is a high performance Ethernet Switch with 4 x10/100TX RJ45 Copper ports and 1x100M SFP port, which meets the high reliability requirements demanded by industrial rolling stock applications. It provides L2 wire speed for network aggregation deployment. For more usage flexibilities, IDS1004F1 supports wide operating temperature from -40~75℃.
2 Feature
- Conforms to IEEE802.3, IEEE 802.3u

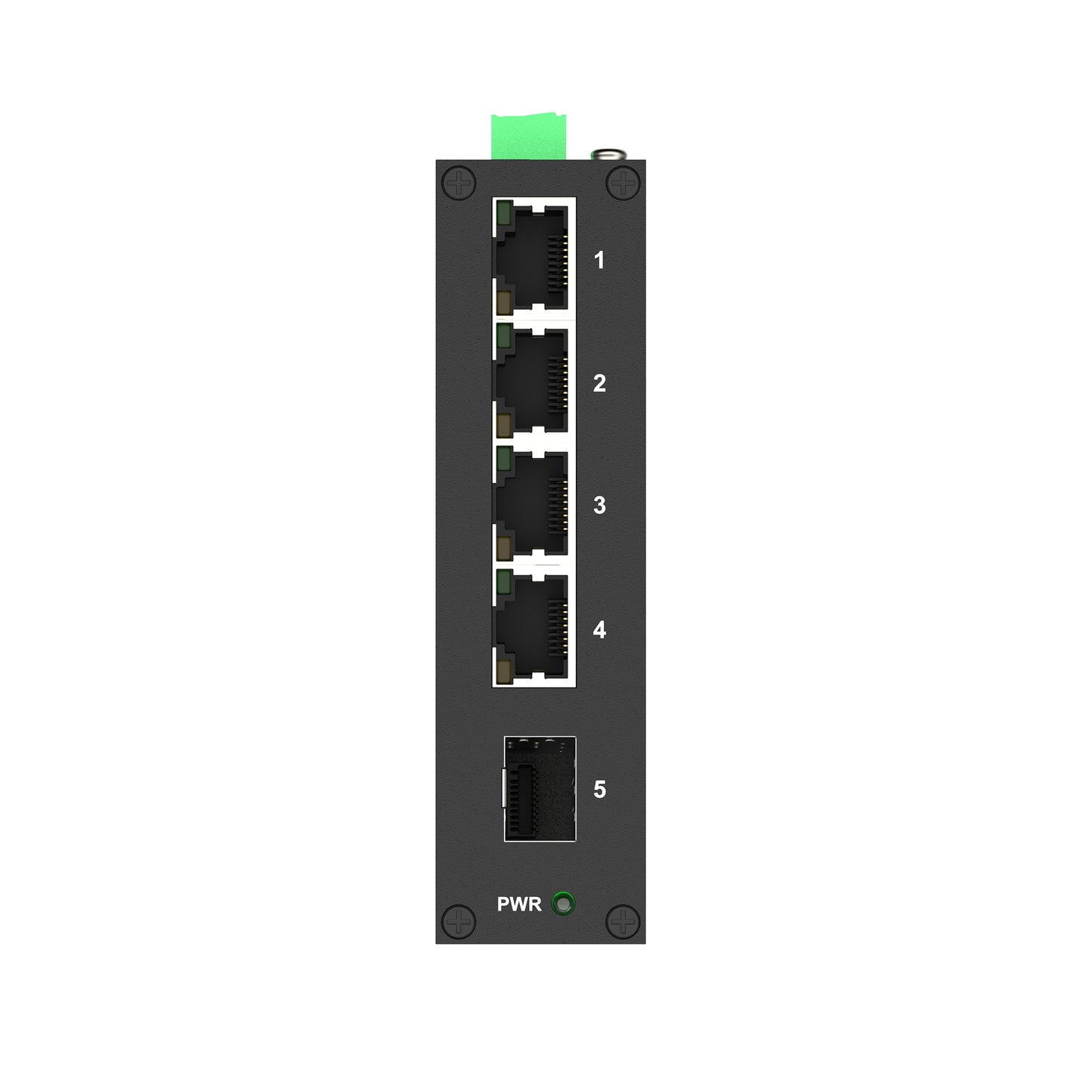

- Provide 4 10/100TX RJ45 Copper ports and 1x100M SFP port
- High back-plane bandwidth 10Gbps
- 3x Flow control
- Surge protection for power port and data ports
- Wide power input: 12~57VDC
- Wide working temperature: -40~75℃
- IP30 Aluminum case
- 200,000 hours MTBF (Parts count reliability prediction)
3 Specifications
Attributes |
|
Networking Interfaces |
4 10/100M RJ45 Copper ports. 1 100M SFP port |
LED Indicators |
Power, Link/Act |
Copper Cable |
|
10Base-T |
2-pair UTP/STP Cat. 3,4,5/5E,6 cable EIA/TIA-568 100-ohm (100m) |
100Base-T |
2-pair UTP/STP Cat. 5/5E,6 cable EIA/TIA-568 100-ohm (100m) |
Performance |
|
Switching Capacity |
1 Gbps |
Forwarding Capacity |
744 Kpps |
Forwarding Mode |
Store and Forward |
Packet Buffer Memory |
512 Kbit |
MAC Address Table |
1K |
Physical |
|
Dimensions |
103x78x32mm |
Weight |
|
Operating Temperature |
-40 to 75℃ |
Storage Temperature |
-40 to 85℃ |
Operating Humidity |
5 to 95% Noncondensing |
Power Method |
12-57VDC |
Max. Power Consumption |
5W |
EMC Safety |
FCC, CE, RoHS |
Reliability |
|
Package List |
|
Industrial Ethernet Switch |
1pcs |
User Manual |
1pcs |
4 Order Information
Part Number |
Product Description |
IDS1004F1 |
4FE+1SFP Din-rail Unmanaged Industrial Ethernet Switch |
