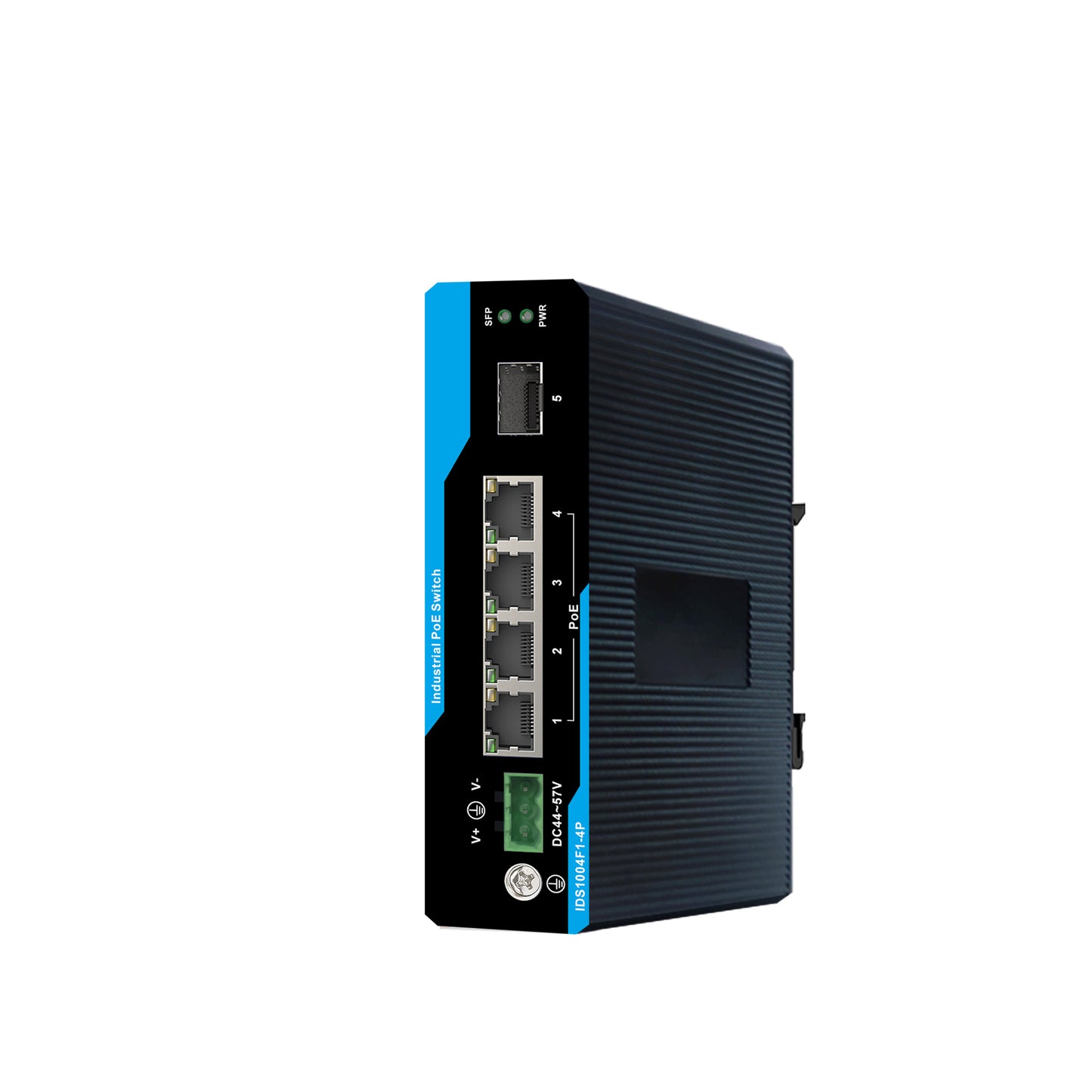

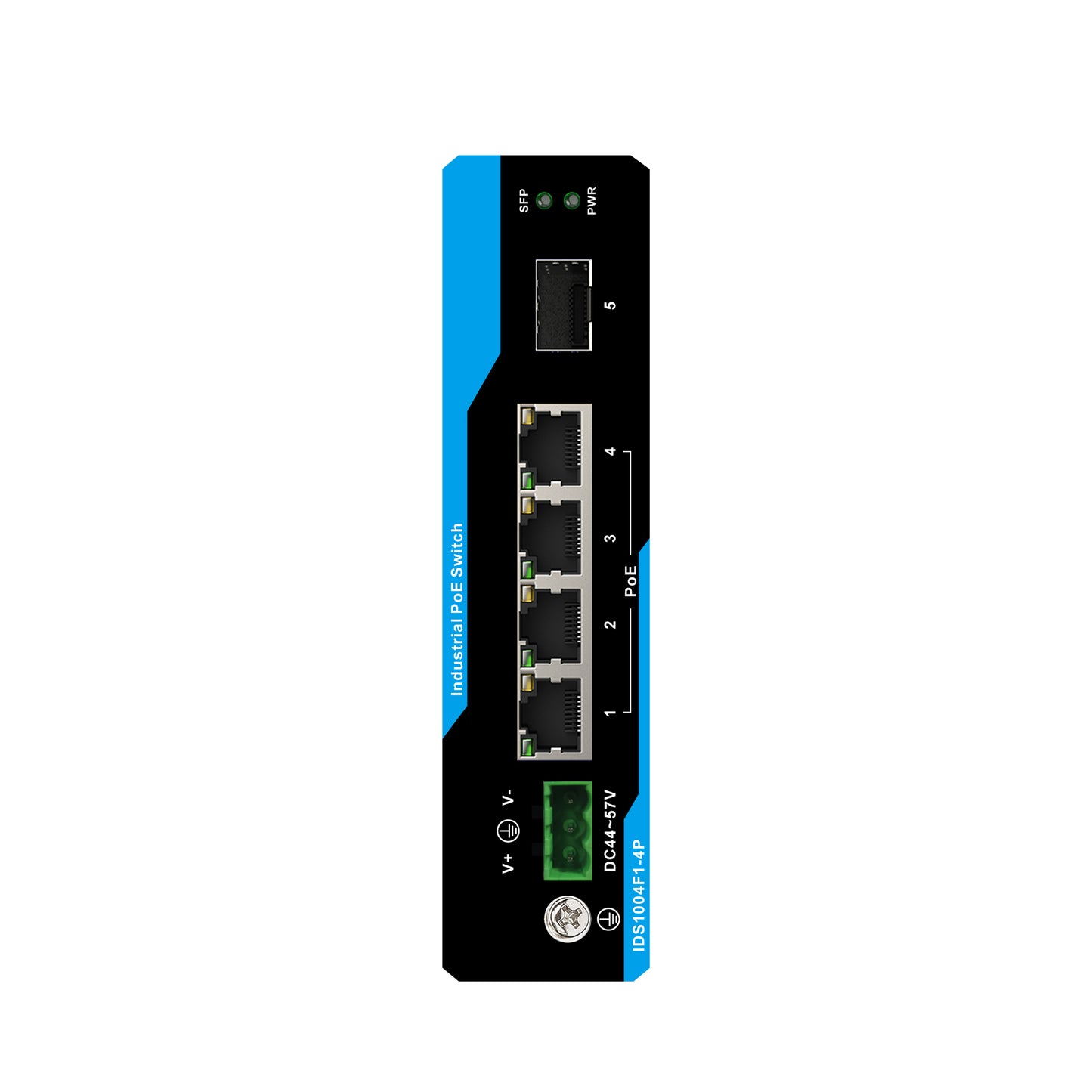

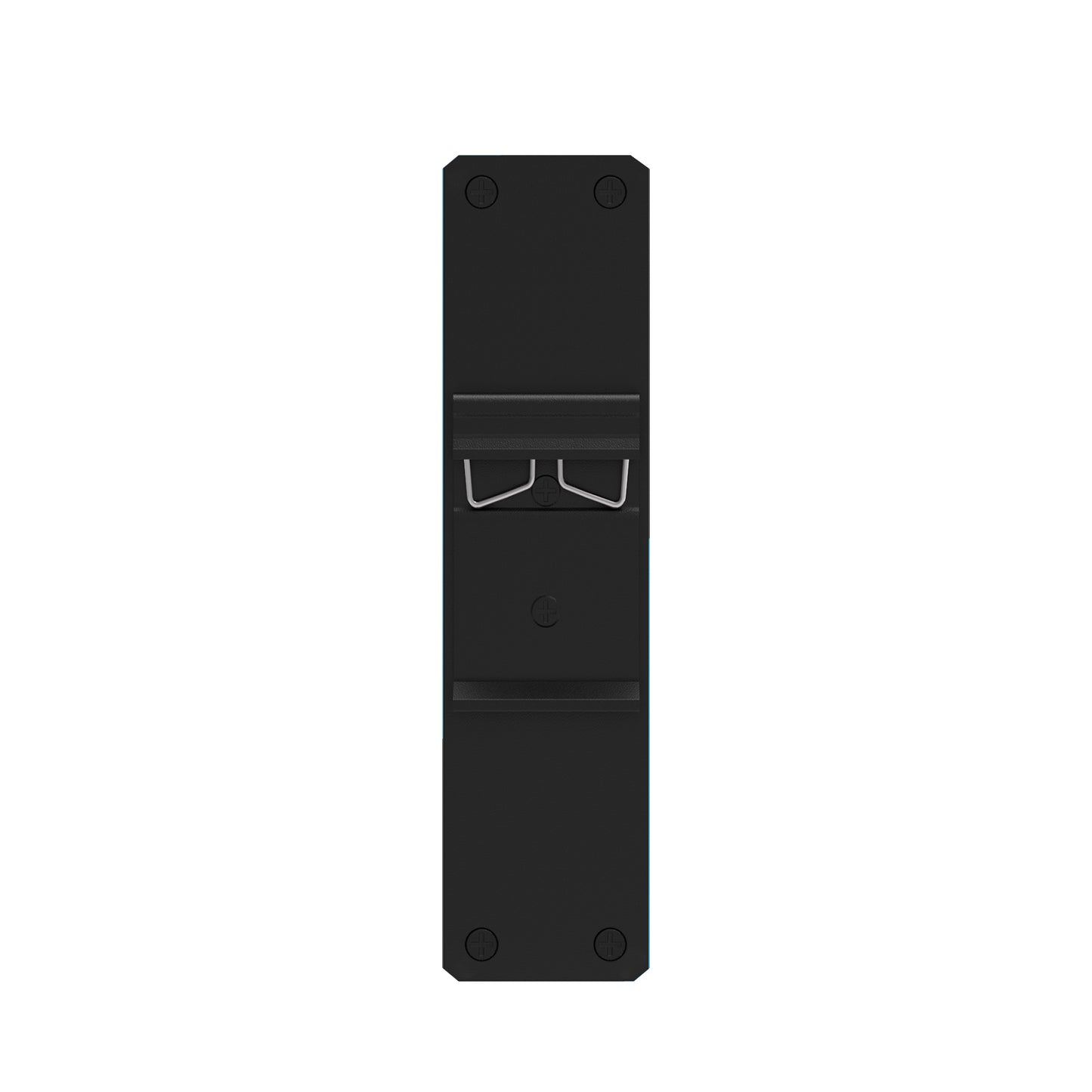

IDS1004F1-4P 4FE+1SFP Din-rail Unmanaged Industrial PoE Switch
IDS1004F1-4P 4FE+1SFP Din-rail Unmanaged Industrial PoE Switch
Couldn't load pickup availability
1 Description
The IDS1004F1-4P is a high performance Ethernet Switch with 4 x10/100TX RJ45 Copper ports with 4 PoE and 1x100M SFP port, which meets the high reliability requirements demanded by industrial rolling stock applications. It provides L2 wire speed for network aggregation deployment. For more usage flexibilities, IDS1004F1-4P supports wide operating temperature from -40~75℃.
2 Feature
- Conforms to IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE802.3af, IEEE802.3at
- Provide 4 10/100TX RJ45 Copper ports with 4 PoE and 1x100M SFP port
- PoE Budget 120W
- Back-plane bandwidth 1Gbps
- 3x Flow control
- Surge protection for power port and data ports
- Wide power input: 44~57VDC
- Wide working temperature: -40~75℃
- IP30 Aluminum case
- 200,000 hours MTBF (Parts count reliability prediction)
3 Specifications
|
Attributes |
|
|
Networking Interfaces |
4 10/100M RJ45 Copper ports. 1 100M SFP port. |
|
LED Indicators |
Power, Link/Act, PoE |
|
Copper Cable |
|
|
10Base-T |
2-pair UTP/STP Cat. 3,4,5/5E,6 cable EIA/TIA-568 100-ohm (100m) |
|
100Base-T |
2-pair UTP/STP Cat. 5/5E,6 cable EIA/TIA-568 100-ohm (100m) |
|
Performance |
|
|
Switching Capacity |
1 Gbps |
|
Forwarding Capacity |
744K |
|
Forwarding Mode |
Store and Forward |
|
Packet Buffer Memory |
512 Kbit |
|
MAC Address Table |
1K |
|
PoE Budget |
120W |
|
Physical |
|
|
Dimensions |
150x100x32mm |
|
Weight |
|
|
Operating Temperature |
-40 to 75℃ |
|
Storage Temperature |
-40 to 85℃ |
|
Operating Humidity |
5 to 95% Noncondensing |
|
Power Method |
44-57VDC |
|
Max. Power Consumption |
Including PoE Output: 125W Excluding PoE Output: 5W |
|
EMC Safety |
FCC, CE, RoHS |
|
Reliability |
|
|
Power over Ethernet |
|
|
PoE Interfaces |
Ports 1-4 |
|
PoE Standard |
IEEE802.3af, IEEE802.3at |
|
Max. PoE Wattage per Port |
30W |
|
PoE Voltage |
52VDC (Depend on Power Adapter) |
|
PoE Pin Assignment |
V- (RJ45 Pin1,2), V+ (RJ45 Pin 3,6) |
|
Package List |
|
|
Industrial PoE Switch |
1pcs |
|
User Manual |
1pcs |
4 Order Information
|
Part Number |
Product Description |
|
IDS1004F1-4P |
4FE+1SFP Din-rail Unmanaged Industrial PoE Switch |
