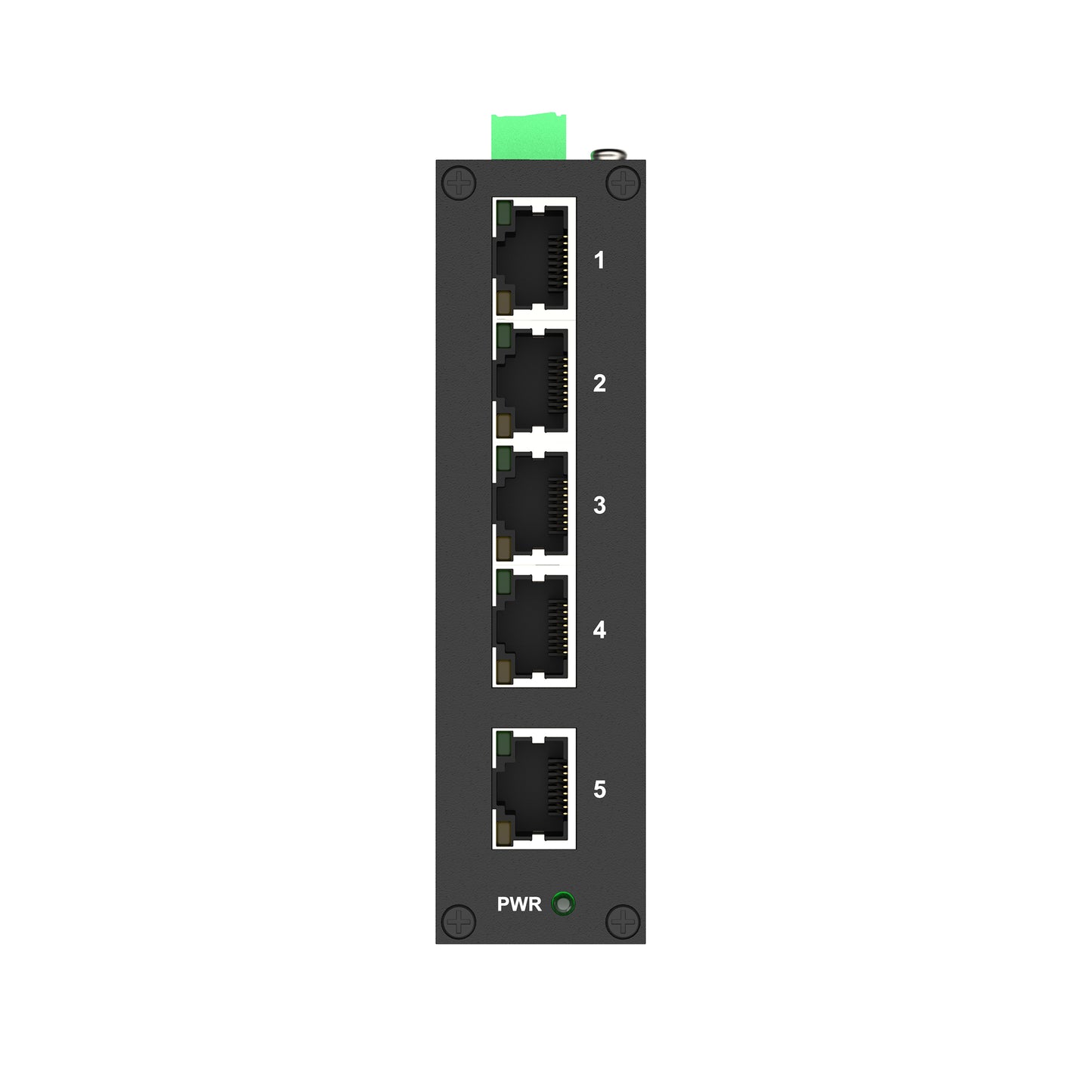

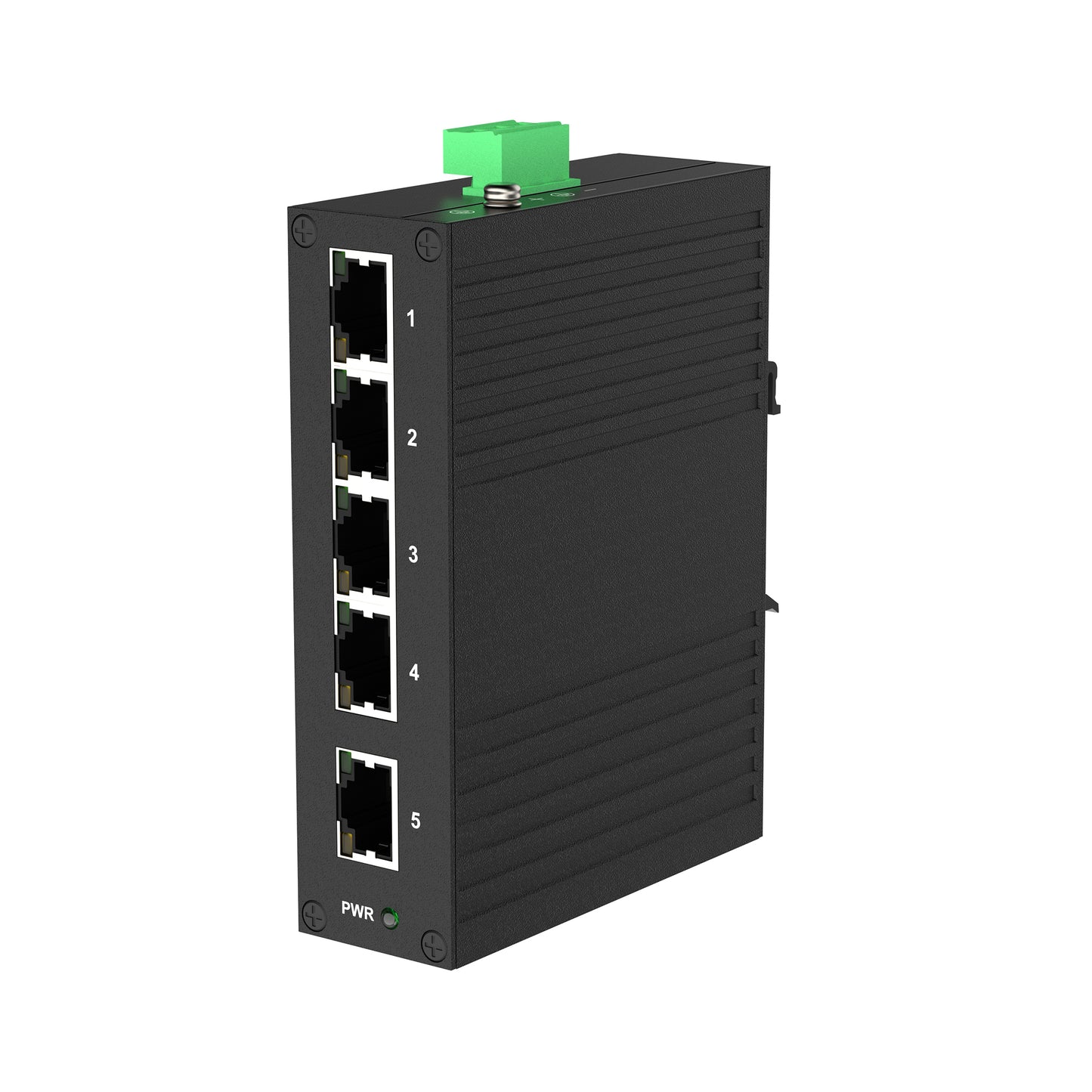

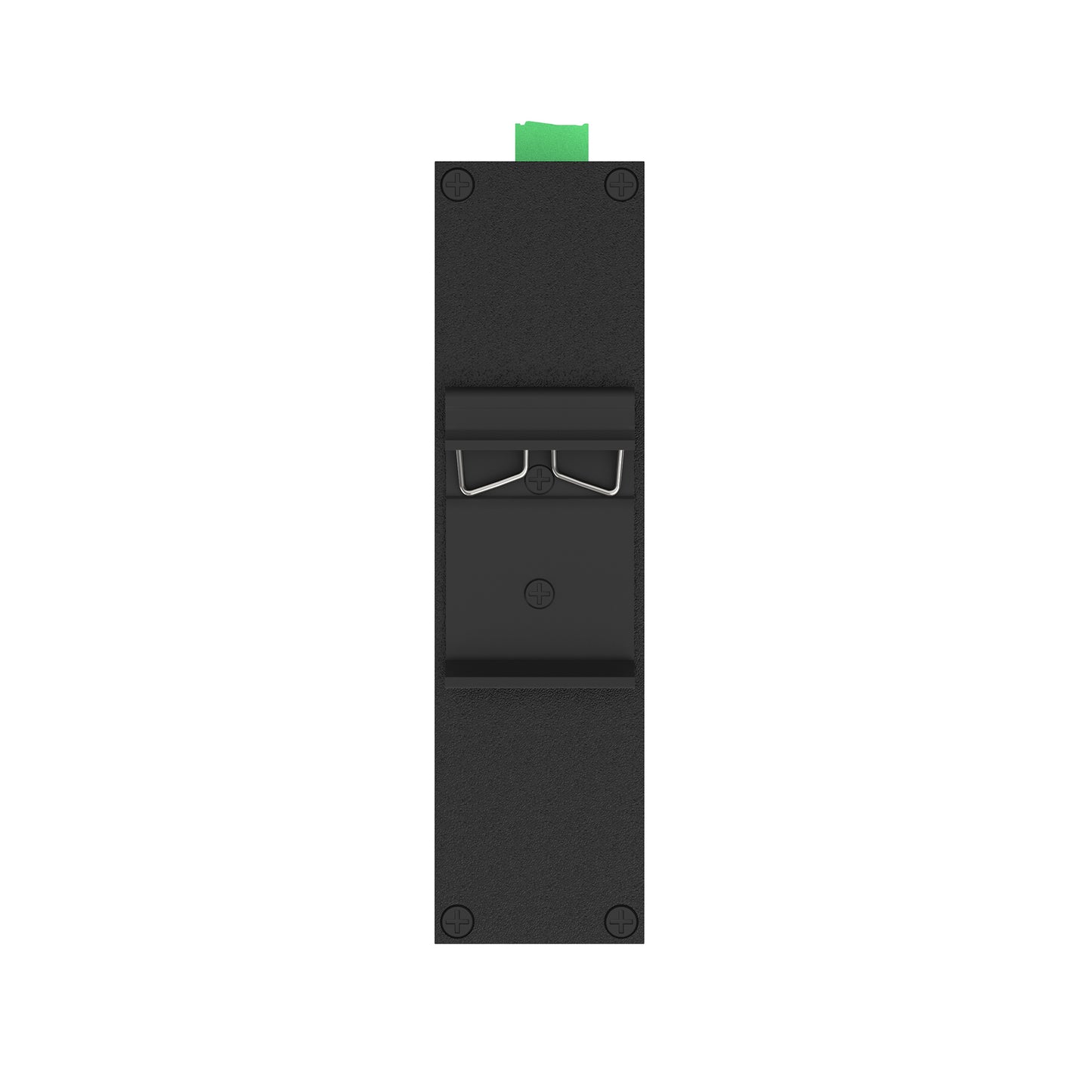

IDS1005R 5FE Din-rail Unmanaged Industrial Ethernet Switch
IDS1005R 5FE Din-rail Unmanaged Industrial Ethernet Switch
Couldn't load pickup availability
1 Description
The IDS1005R is a high performance Ethernet Switch with 5 x10/100TX RJ45 Copper ports, which meets the high reliability requirements demanded by industrial rolling stock applications. It provides L2 wire speed for network aggregation deployment. For more usage flexibilities, IDS1005R supports wide operating temperature from -40~75℃.
2 Feature
- Conforms to IEEE802.3, IEEE 802.3u,
- Provide 5 10/100TX RJ45 Copper ports
- High back-plane bandwidth 1Gbps
- 3x Flow control
- Surge protection for power port and data ports
- Wide power input: 12~57VDC
- Wide working temperature: -40~75℃
- IP30 Aluminum case
- 200,000 hours MTBF (Parts count reliability prediction)
3 Specifications
|
Attributes |
|
|
Networking Interfaces |
5 10/100M RJ45 Copper ports. |
|
LED Indicators |
Power, Link/Act |
|
Copper Cable |
|
|
10Base-T |
2-pair UTP/STP Cat. 3,4,5/5E,6 cable EIA/TIA-568 100-ohm (100m) |
|
100Base-T |
2-pair UTP/STP Cat. 5/5E,6 cable EIA/TIA-568 100-ohm (100m) |
|
Performance |
|
|
Switching Capacity |
1 Gbps |
|
Forwarding Capacity |
744K |
|
Forwarding Mode |
Store and Forward |
|
Packet Buffer Memory |
512 Kbit |
|
MAC Address Table |
1K |
|
Physical |
|
|
Dimensions |
103x78x32mm |
|
Weight |
|
|
Operating Temperature |
0 to 40℃ |
|
Storage Temperature |
-10 to 70℃ |
|
Operating Humidity |
5 to 95% Noncondensing |
|
Power Method |
12-57VDC |
|
Max.Power Consumption |
5W |
|
EMC Safety |
FCC, CE, RoHS |
|
Reliability |
|
|
Package List |
|
|
Industrial Ethernet Switch |
1pcs |
|
User Manual |
1pcs |
4 Order Information
|
Part Number |
Product Description |
|
IDS1005R |
5FE Din-rail Unmanaged Industrial Ethernet Switch |
