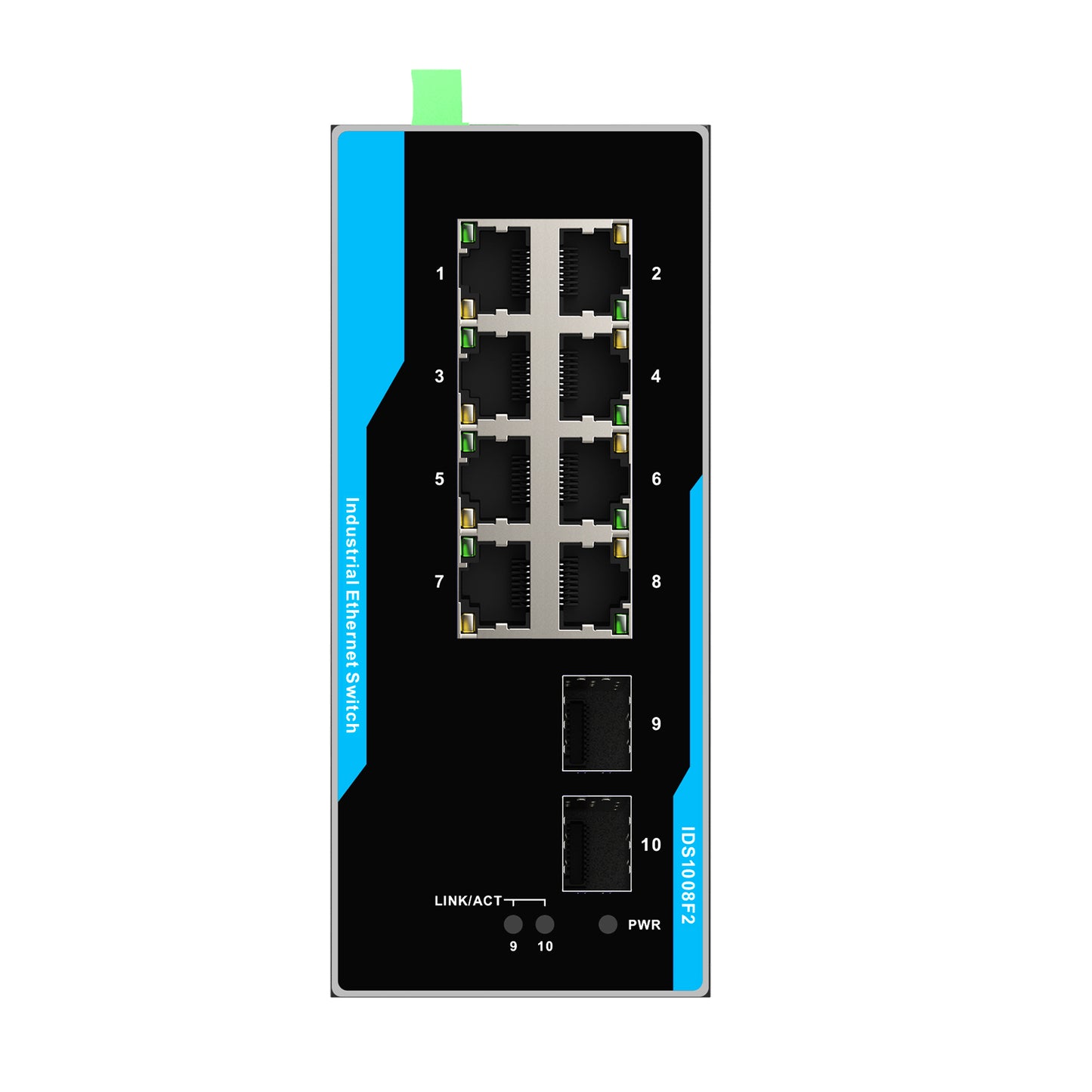

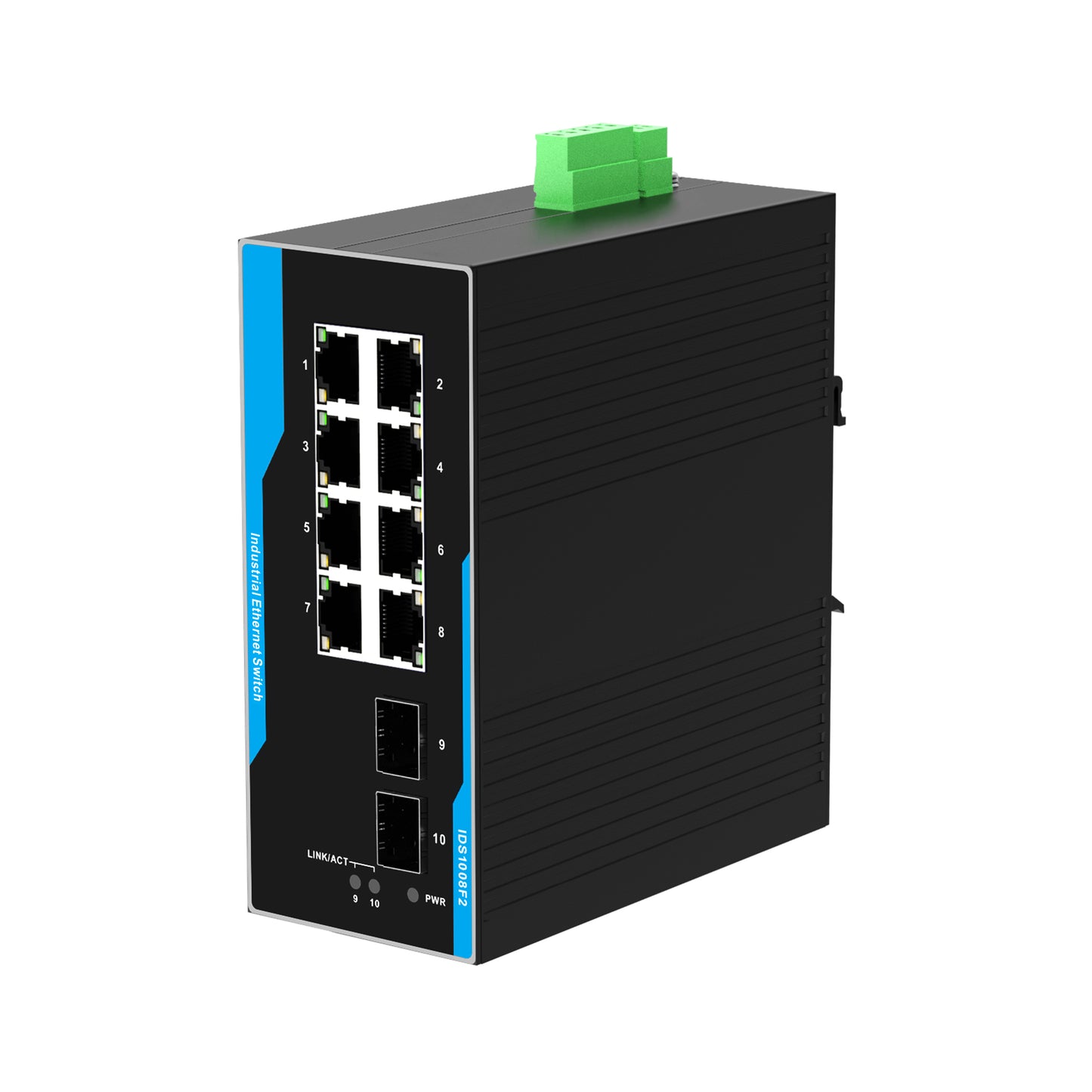

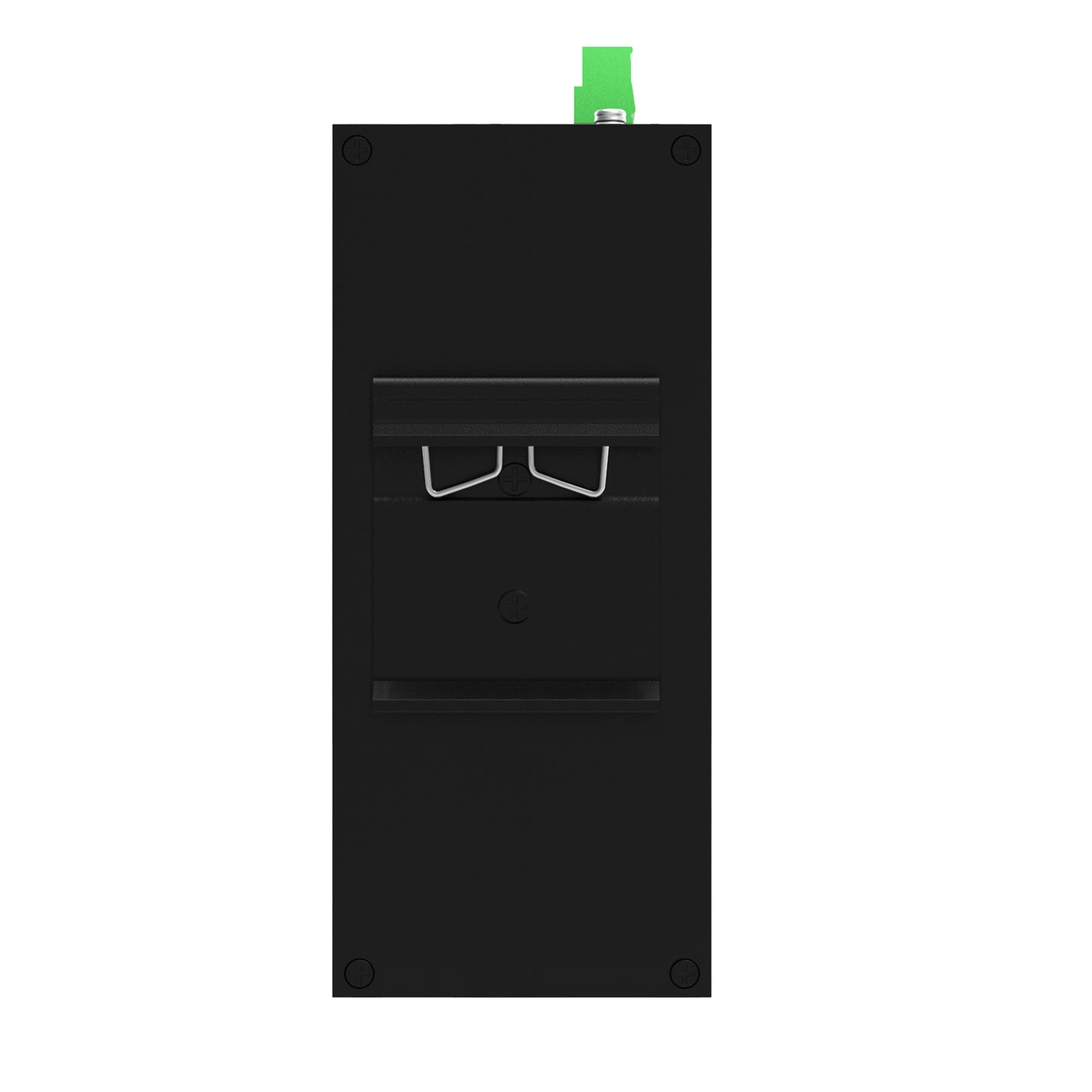

IDS1008F2 8FE+2SFP Din-rail Unmanaged Industrial Ethernet Switch

1 Description

The IDS1008F2 is a high performance Ethernet Switch with 8 x10/100TX RJ45 Copper ports and 2x1,000M SFP ports, which meets the high reliability requirements demanded by industrial rolling stock applications. It provides L2 wire speed for network aggregation deployment. For more usage flexibilities, IDS1008F2 supports wide operating temperature from -40~75℃.

2 Feature

• Conforms to IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z
• Provide 8 x 10/100TX RJ45 Copper ports and 2x1,000M SFP ports
• High back-plane bandwidth 5.6 Gbps
• 3x Flow control
• Surge protection for power port and data ports
• Wide power input: 12~57VDC
• Wide working temperature: -40~75℃
• IP30 Aluminum case
• 200,000 hours MTBF (Parts count reliability prediction)

3 Specifications

4 Order Information
