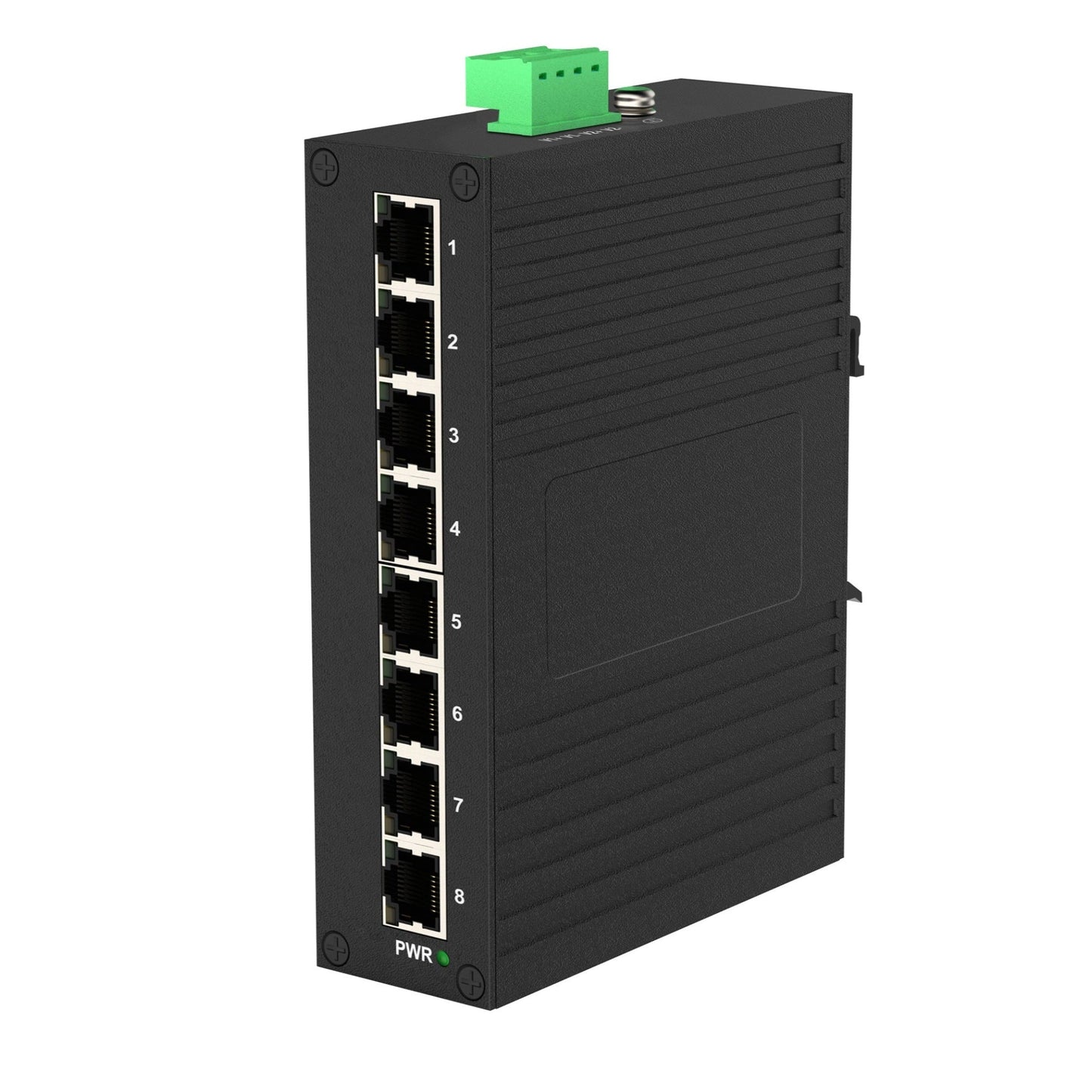

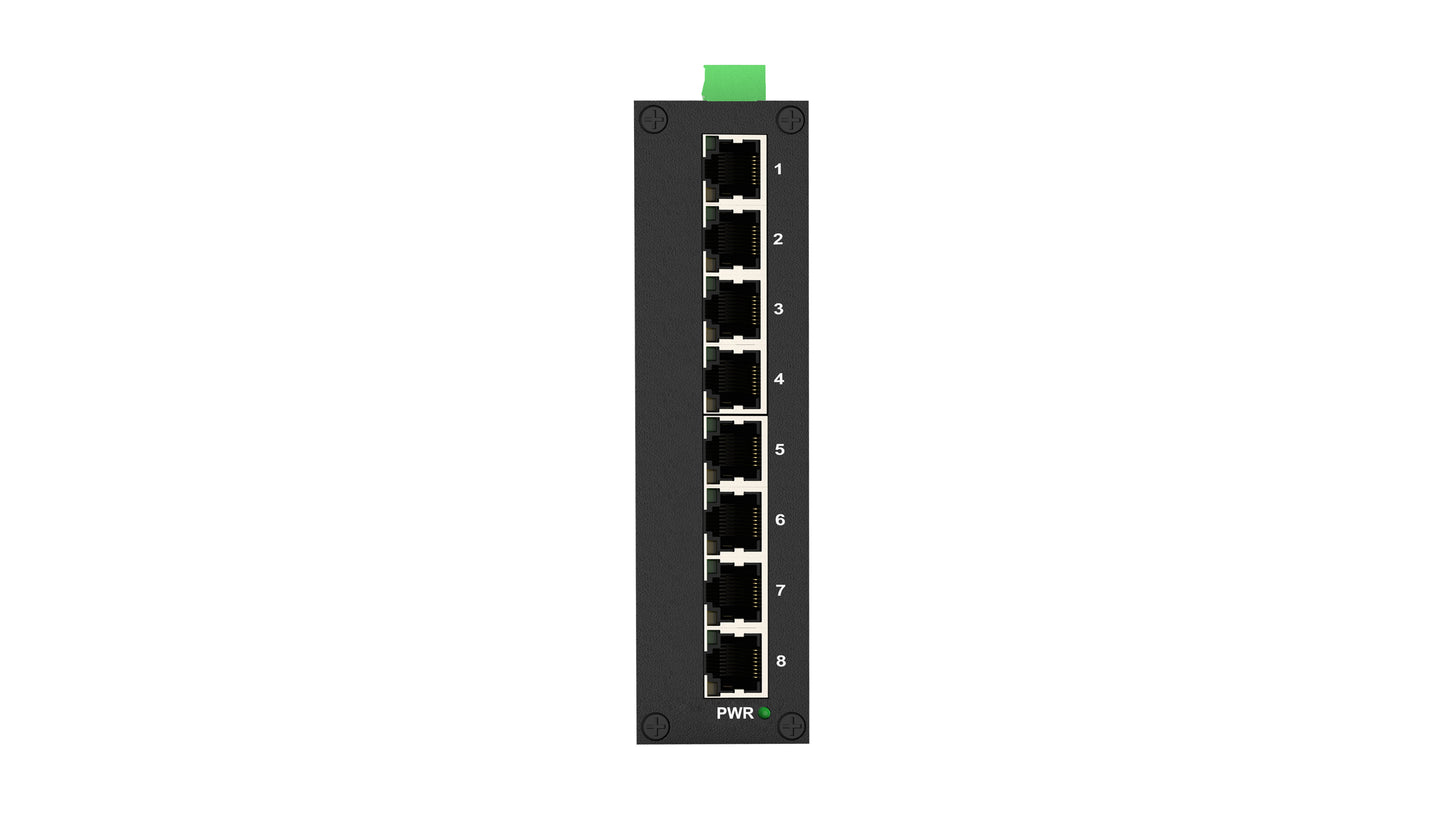

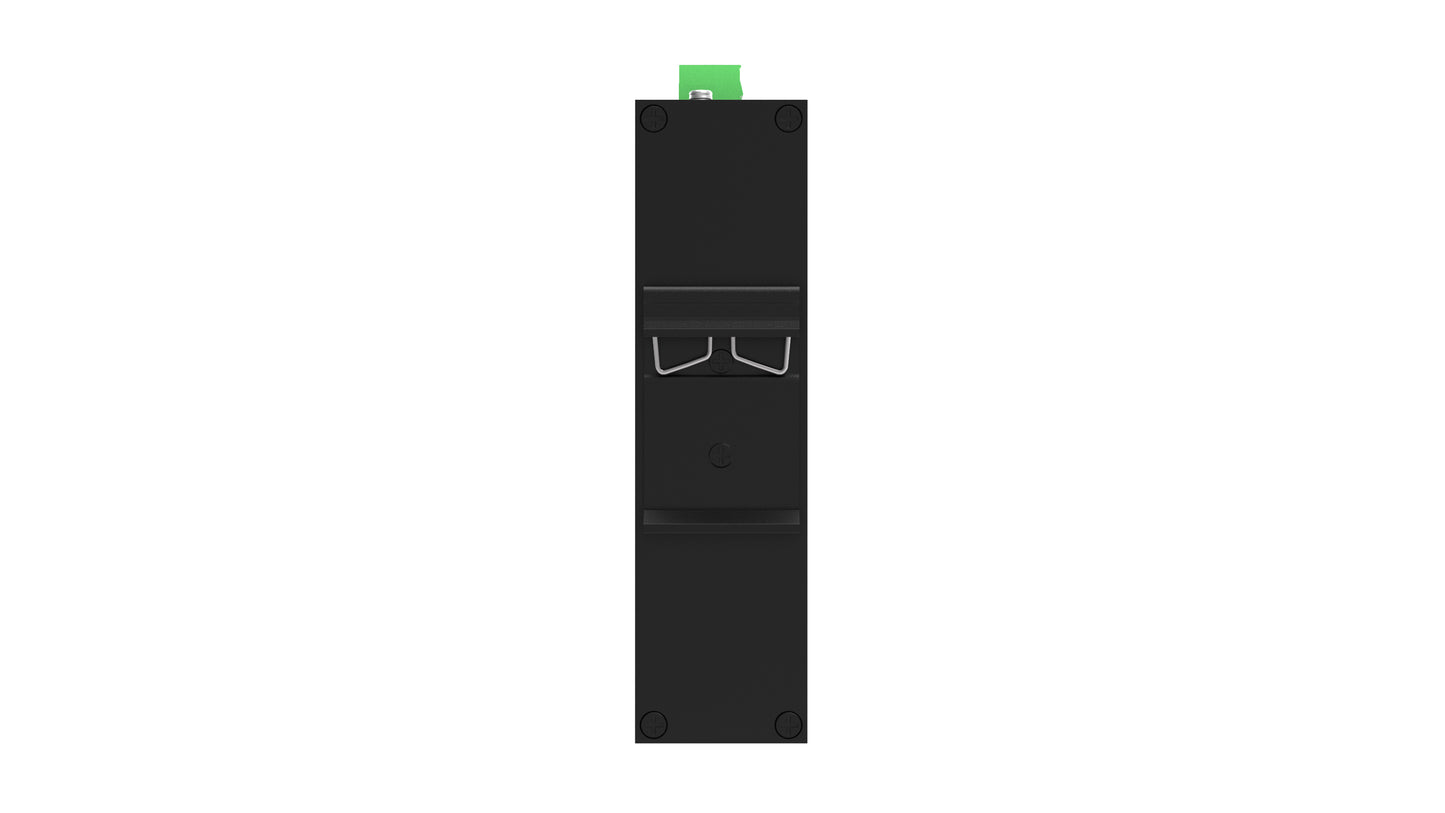

IDS1008R 8FE Din-rail Unmanaged Industrial Ethernet Switch
IDS1008R 8FE Din-rail Unmanaged Industrial Ethernet Switch
Couldn't load pickup availability
1 Description
The IDS1008R is a high performance Ethernet Switch with 8 x10/100TX RJ45 Copper ports, which meets the high reliability requirements demanded by industrial rolling stock applications. It provides L2 wire speed for network aggregation deployment. For more usage flexibilities, IDS1008R supports wide operating temperature from -40~75℃.
2 Feature
- Conforms to IEEE802.3, IEEE 802.3u
- Provide 8 10/100TX RJ45 Copper ports
- High back-plane bandwidth 1.6Gbps
- 3x Flow control
- Surge protection for power port and data ports
- Wide power input: 12~36VDC
- Wide working temperature: -40~75℃
- IP30 Aluminum case
- 200,000 hours MTBF (Parts count reliability prediction)
3 Specifications
|
Attributes |
|
|
Networking Interfaces |
8 10/100Mbps RJ45 Copper ports. |
|
LED Indicators |
Power, Link/Act |
|
Copper Cable |
|
|
10Base-T |
2-pair UTP/STP Cat. 3,4,5/5E,6 cable EIA/TIA-568 100-ohm (100m) |
|
100Base-T |
2-pair UTP/STP Cat. 5/5E,6 cable EIA/TIA-568 100-ohm (100m) |
|
1000Base-T |
4-pair UTP/STP Cat. 5E,6 cable EIA/TIA-568 100-ohm (100m) |
|
Performance |
|
|
Switching Capacity |
1.6Gbps |
|
Forwarding Capacity |
1.19Mpps |
|
Forwarding Mode |
Store and Forward |
|
Packet Buffer Memory |
512Kbit |
|
MAC Address Table |
2K |
|
Physical |
|
|
Dimensions |
143x78x40mm |
|
Weight |
|
|
Storage Temperature |
-40 to 75℃ |
|
Operating Temperature |
-40 to 75℃ |
|
Operating Humidity |
5 to 95% Noncondensing |
|
Power Method |
12-36VDC |
|
EMC Safety |
FCC, CE, RoHS |
|
Package List |
|
|
User Manual |
1pcs |
4 Order Information
|
Switch Models |
|
|
IDS1008R |
8FE Din-rail Unmanaged Industrial Ethernet Switch |
