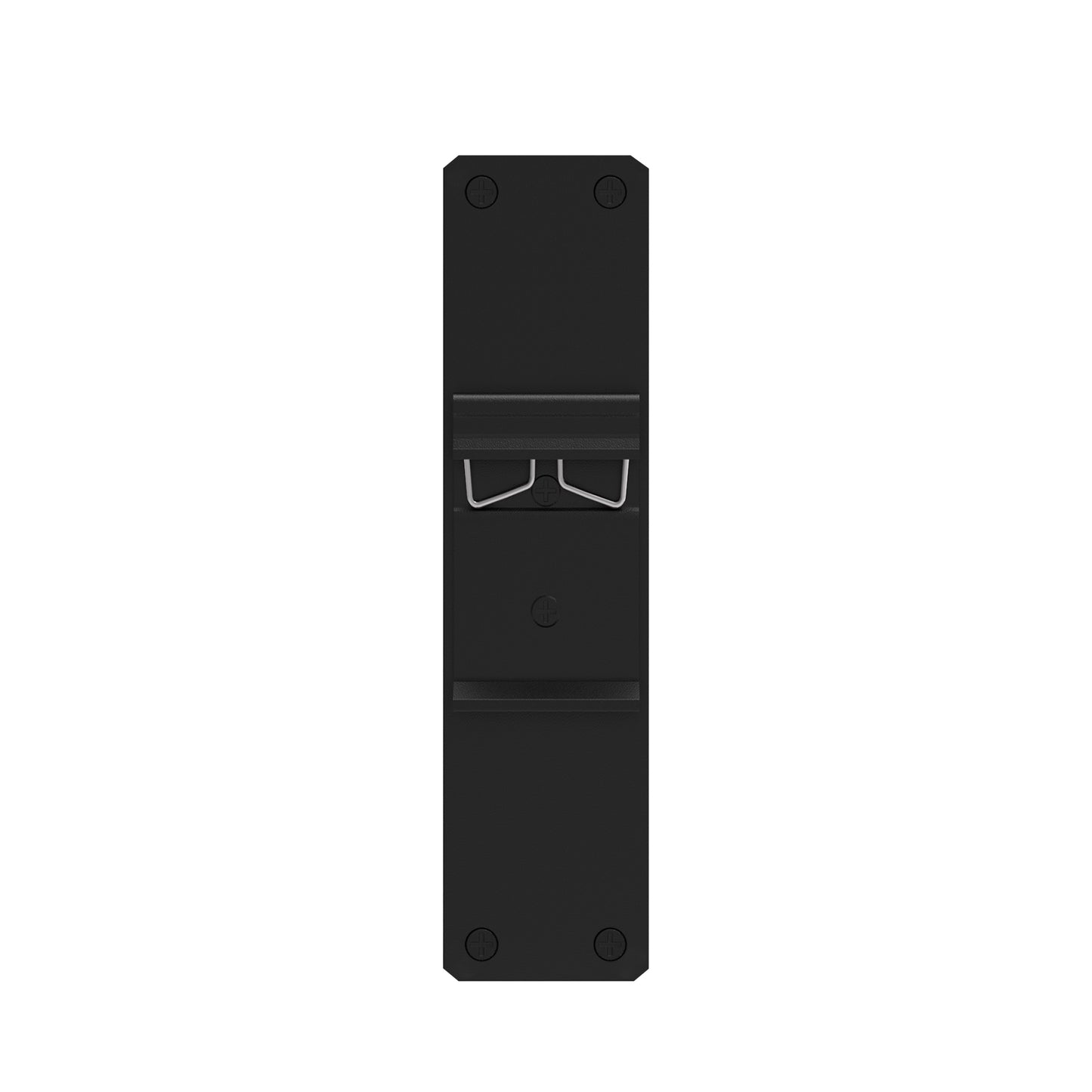

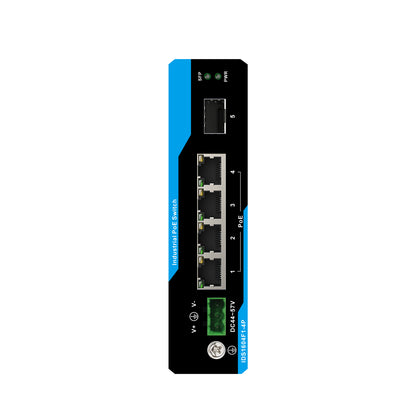

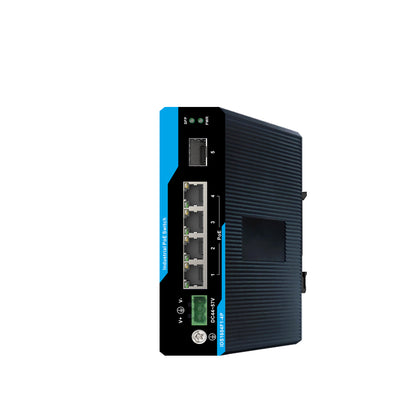

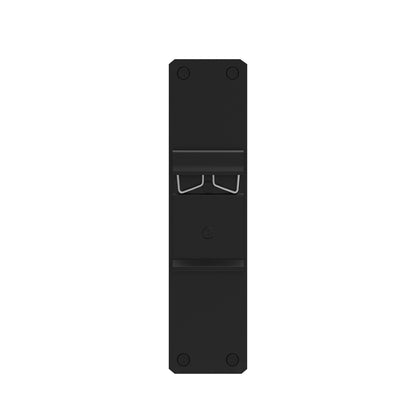

IDS1604F1-4P 4GE+1SFP Din-rail Unmanaged Industrial PoE Switch
IDS1604F1-4P 4GE+1SFP Din-rail Unmanaged Industrial PoE Switch
Couldn't load pickup availability
1 Description
The IDS1605-4P is a high performance Ethernet Switch with 5 x10/100/1,000TX RJ45 Copper ports with 4 PoE, which meets the high reliability requirements demanded by industrial rolling stock applications. It provides L2 wire speed for network aggregation deployment. For more usage flexibilities, IDS1605-4P supports wide operating temperature from -40~75℃.
2 Feature
- Conforms to IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE802.3af, IEEE802.3at
- Provide 4 10/100/1,000TX RJ45 Copper ports with 4 PoE and 1x1,000M SFP port
- PoE Budget 120W
- High back-plane bandwidth 10Gbps
- 3x Flow control
- Surge protection for power port and data ports
- Wide power input: 44~57VDC
- Wide working temperature: -40~75℃
- IP30 Aluminum case
- 200,000 hours MTBF (Parts count reliability prediction)
3 Specifications
|
Attributes |
|
|
Networking Interfaces |
4 10/100/1,000M RJ45 Copper ports. 1 1,000M SFP port |
|
LED Indicators |
Power, Link/Act, PoE |
|
Copper Cable |
|
|
10Base-T |
2-pair UTP/STP Cat. 3,4,5/5E,6 cable EIA/TIA-568 100-ohm (100m) |
|
100Base-T |
2-pair UTP/STP Cat. 5/5E,6 cable EIA/TIA-568 100-ohm (100m) |
|
1,000Base-T |
4-pair UTP/STP Cat. 5E,6 cable EIA/TIA-568 100-ohm (100m) |
|
Performance |
|
|
Switching Capacity |
10 Gbps |
|
Forwarding Capacity |
7.44 Mpps |
|
Forwarding Mode |
Store and Forward |
|
Packet Buffer Memory |
1 Mbit |
|
MAC Address Table |
8K |
|
PoE Budget |
120W |
|
Physical |
|
|
Dimensions |
150x100x32mm |
|
Weight |
|
|
Operating Temperature |
-40 to 75℃ |
|
Storage Temperature |
-40 to 85℃ |
|
Operating Humidity |
5 to 95% Noncondensing |
|
Power Method |
44-57VDC |
|
Max. Power Consumption |
Including PoE Output: 125W Excluding PoE Output: 5W |
|
EMC Safety |
FCC, CE, RoHS |
|
Reliability |
|
|
Power over Ethernet |
|
|
PoE Interfaces |
Ports 1-4 |
|
PoE Standard |
IEEE802.3af, IEEE802.3at |
|
Max. PoE Wattage per Port |
30W |
|
PoE Voltage |
52VDC (Depend on Power Adapter) |
|
PoE Pin Assignment |
V- (RJ45 Pin1,2), V+ (RJ45 Pin 3,6) |
|
Package List |
|
|
Industrial PoE Switch |
1pcs |
|
User Manual |
1pcs |
4 Order Information
|
Part Number |
Product Description |
|
IDS1604F1-4P |
4GE+1SFP Din-rail Unmanaged Industrial PoE Switch |
