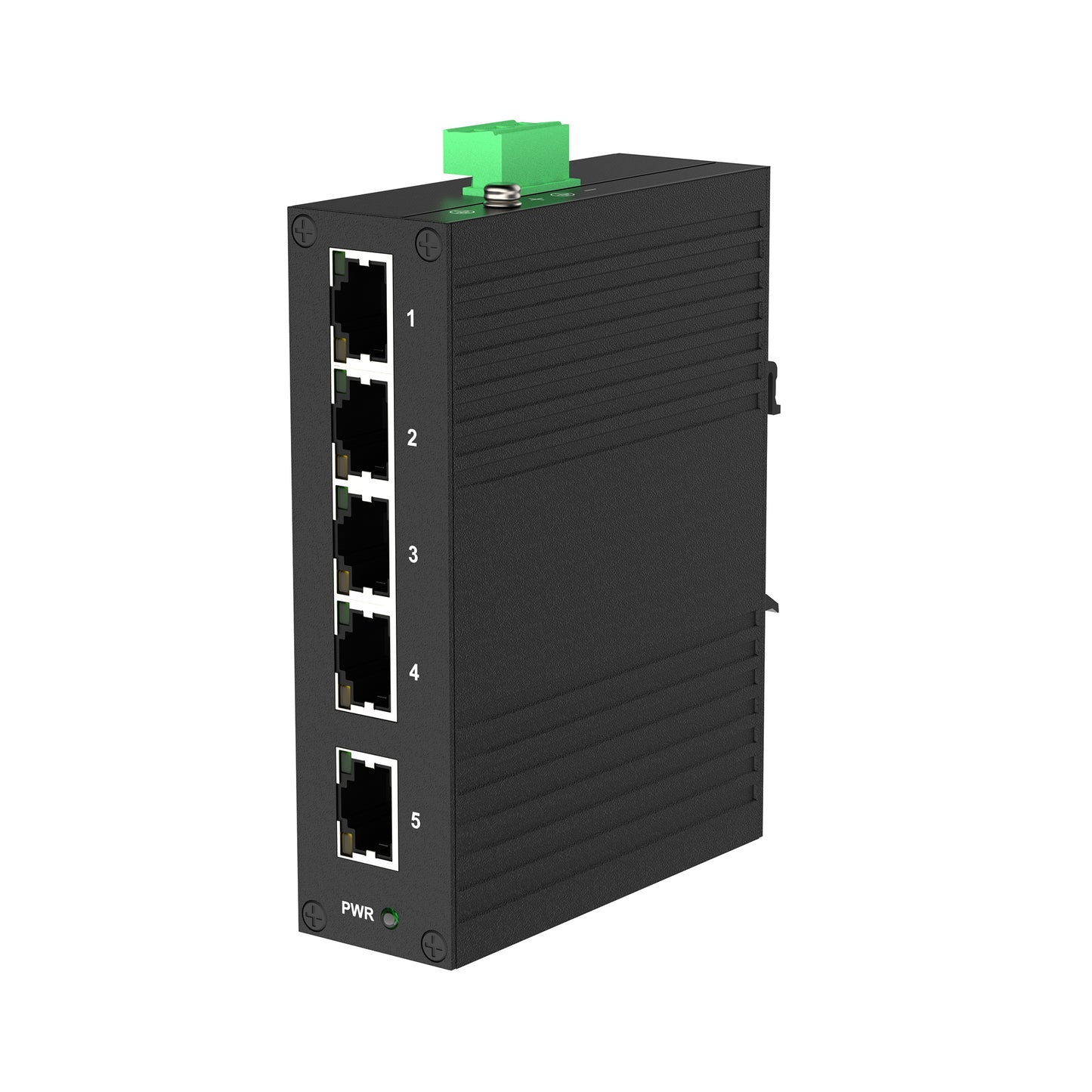

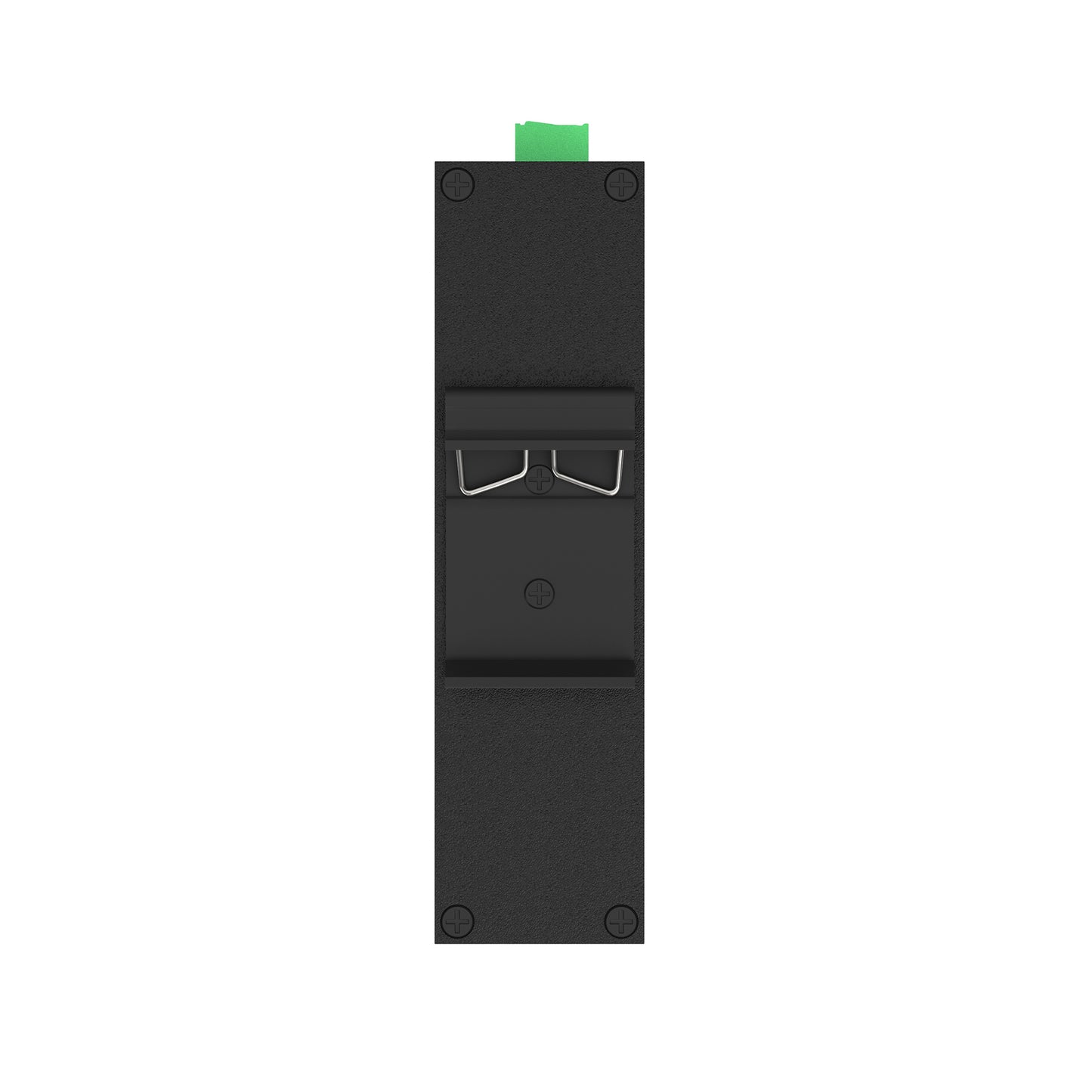

IDS1605 5GE Din-rail Unmanaged Industrial Ethernet Switch
IDS1605 5GE Din-rail Unmanaged Industrial Ethernet Switch
Couldn't load pickup availability
1 Description
The IDS1605 is a high performance Ethernet Switch with 5 x10/100/1,000TX RJ45 Copper ports, which meets the high reliability requirements demanded by industrial rolling stock applications. It provides L2 wire speed for network aggregation deployment. For more usage flexibilities, IDS1605 supports wide operating temperature from -40~75℃.
2 Feature
- Conforms to IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z

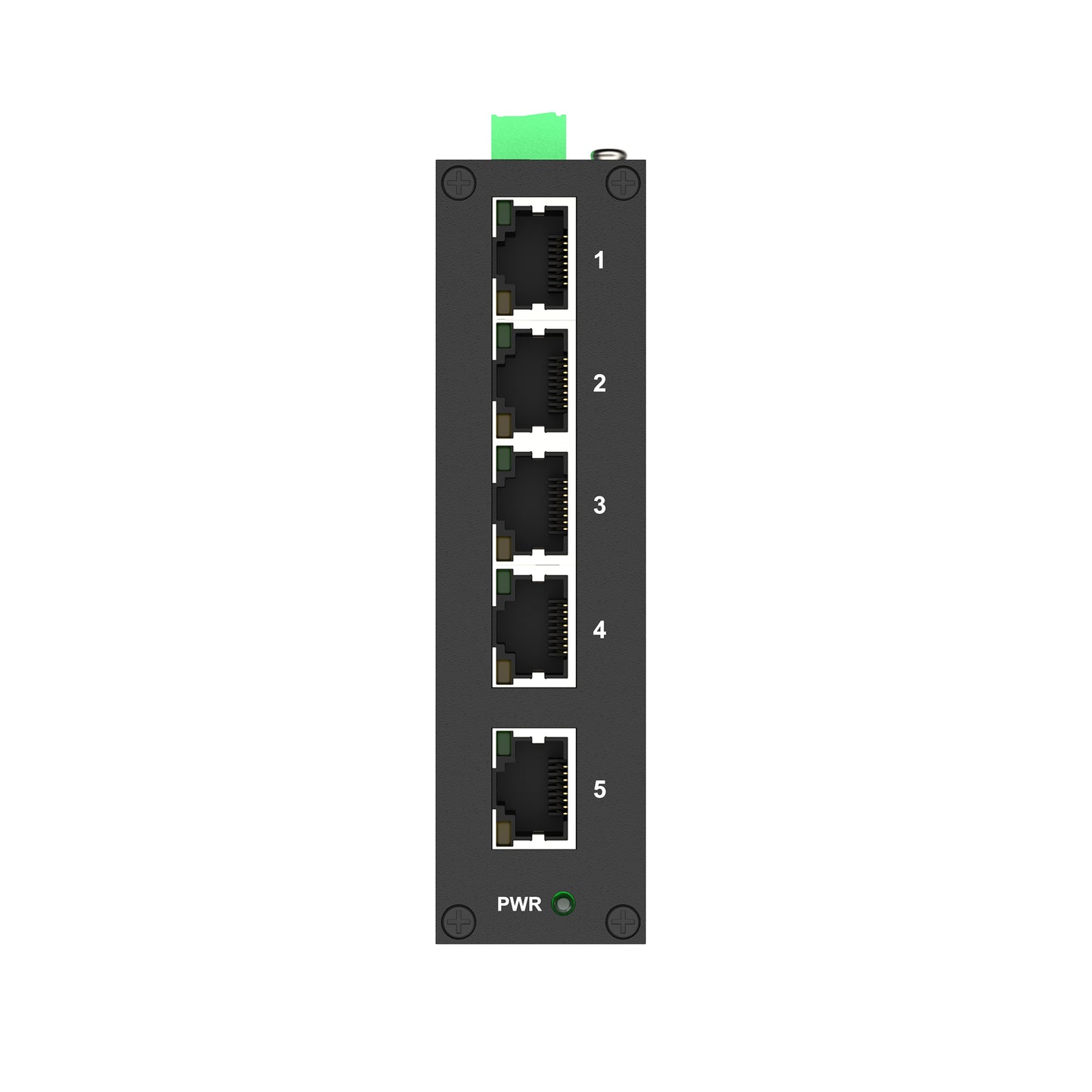

- Provide 5 10/100/1,000TX RJ45 Copper ports
- High back-plane bandwidth 10Gbps
- 3x Flow control
- Surge protection for power port and data ports
- Wide power input: 12~57VDC
- Wide working temperature: -40~75℃
- IP30 Aluminum case
- 200,000 hours MTBF (Parts count reliability prediction)
3 Specifications
|
Attributes |
|
|
Networking Interfaces |
5 10/100/1,000M RJ45 Copper ports. |
|
LED Indicators |
Power, Link/Act |
|
Copper Cable |
|
|
10Base-T |
2-pair UTP/STP Cat. 3,4,5/5E,6 cable EIA/TIA-568 100-ohm (100m) |
|
100Base-T |
2-pair UTP/STP Cat. 5/5E,6 cable EIA/TIA-568 100-ohm (100m) |
|
1000Base-T |
4-pair UTP/STP Cat. 5E,6 cable EIA/TIA-568 100-ohm (100m) |
|
Performance |
|
|
Switching Capacity |
10 Gbps |
|
Forwarding Capacity |
7.44 Mpps |
|
Forwarding Mode |
Store and Forward |
|
Packet Buffer Memory |
1 Mbit |
|
MAC Address Table |
8K |
|
PoE Budget |
120W |
|
Physical |
|
|
Dimensions |
103x78x32mm |
|
Weight |
|
|
Operating Temperature |
-40 to 75℃ |
|
Storage Temperature |
-40 to 85℃ |
|
Operating Humidity |
5 to 95% Noncondensing |
|
Power Method |
12-57VDC |
|
Max. Power Consumption |
5W |
|
EMC Safety |
FCC, CE, RoHS |
|
Reliability |
|
|
Package List |
|
|
Industrial Ethernet Switch |
1pcs |
|
User Manual |
1pcs |
4 Order Information
|
Part Number |
Product Description |
|
IDS1605 |
5GE Din-rail Unmanaged Industrial Ethernet Switch |
