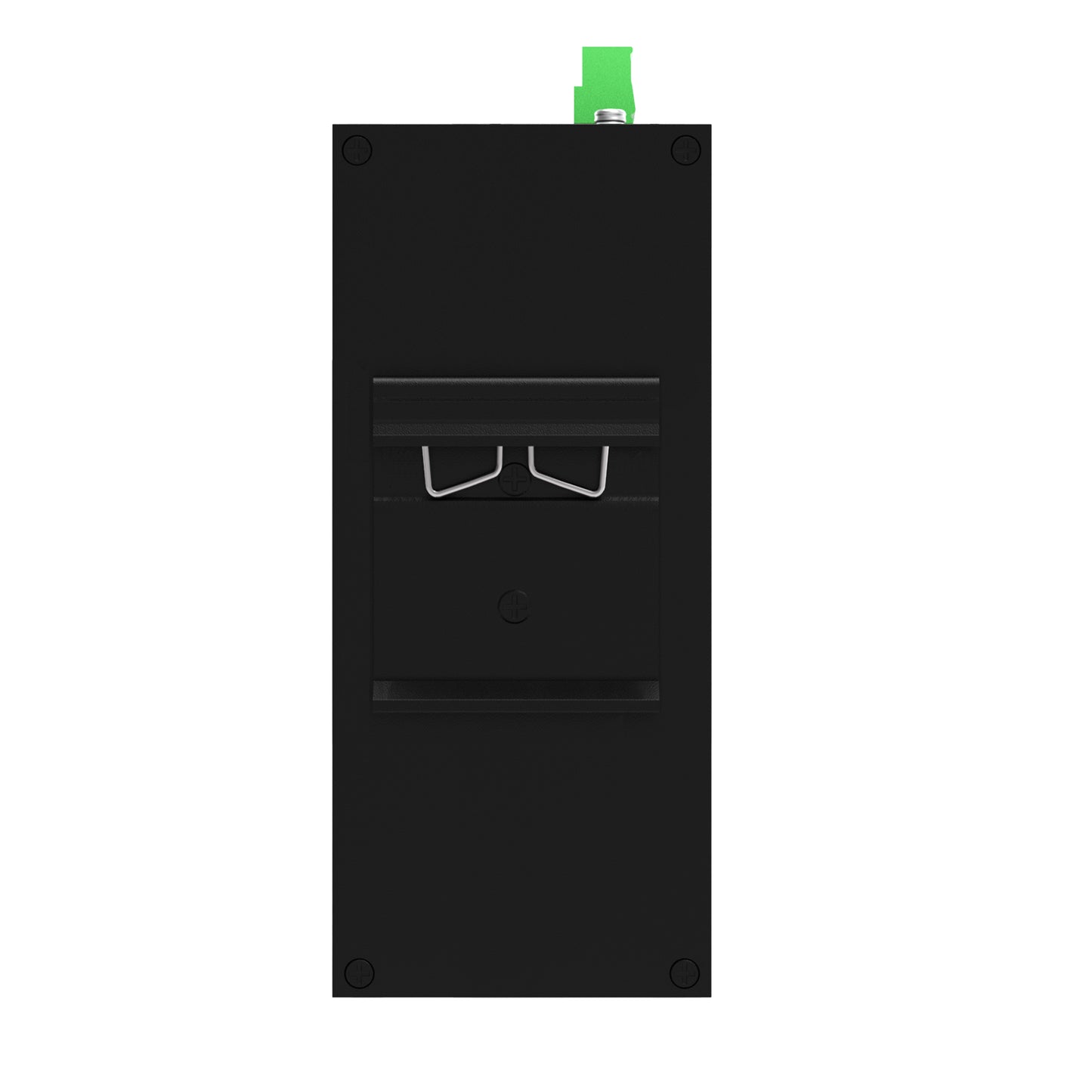

IDS1608F2 8GE+2SFP Din-rail Unmanaged Industrial Ethernet Switch
IDS1608F2 8GE+2SFP Din-rail Unmanaged Industrial Ethernet Switch
Couldn't load pickup availability
1 Description

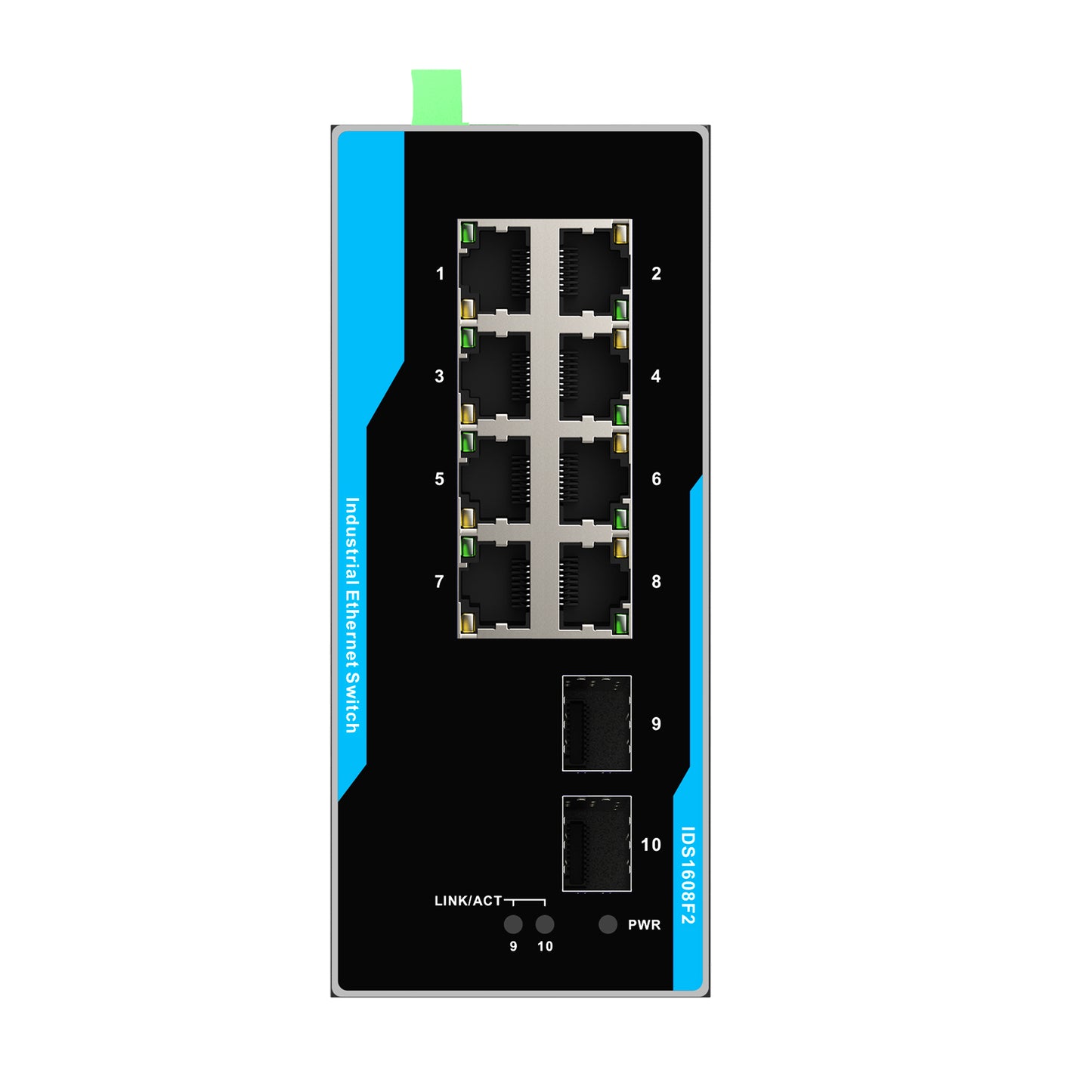

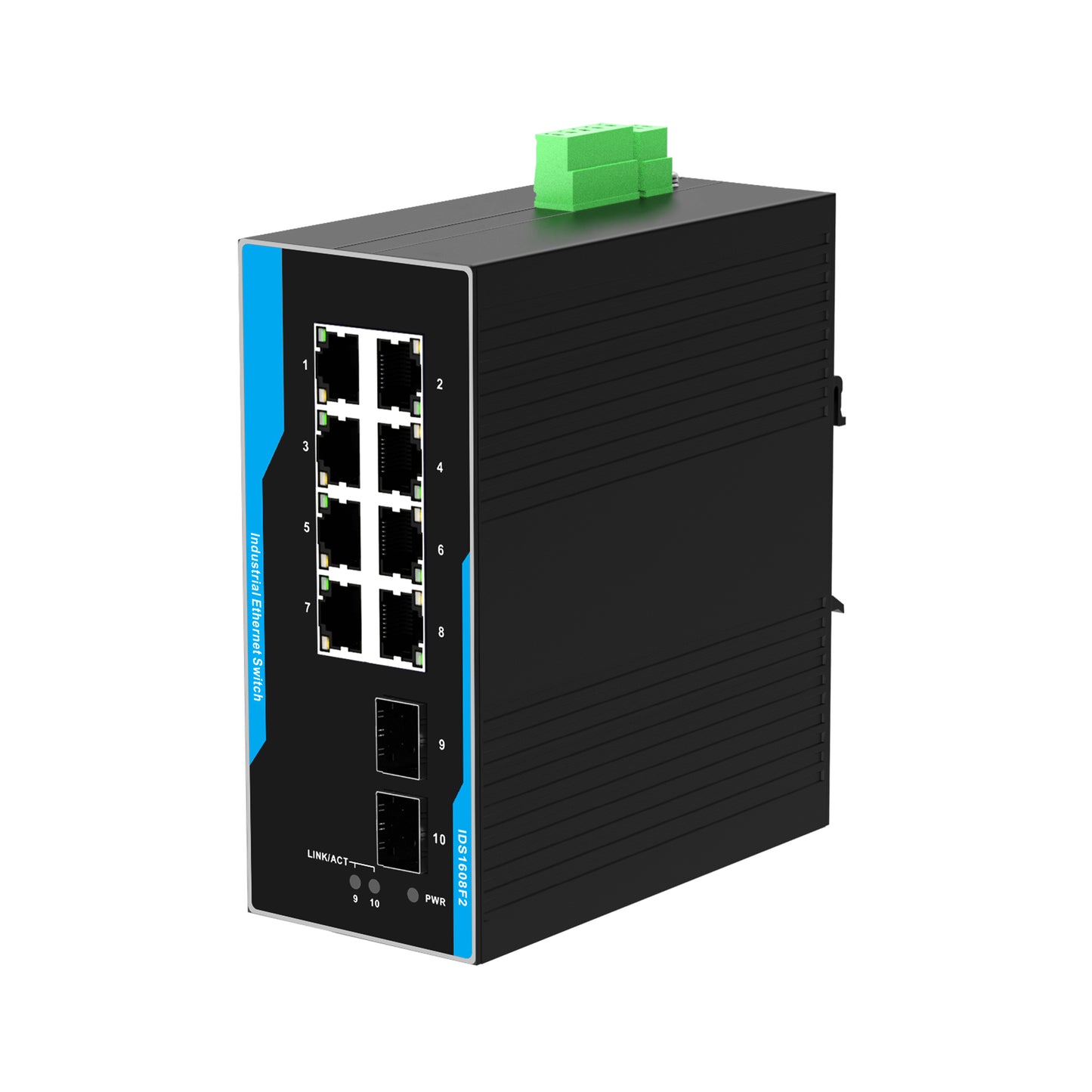

The IDS1608F2 is a high performance Ethernet Switch with 8 x10/100/1000TX RJ45 Copper ports and 2 x1000M SFP Ports, which meets the high reliability requirements demanded by industrial rolling stock applications. It provides L2 wire speed for network aggregation deployment. For more usage flexibilities, IDS1608F2 supports wide operating temperature from -40~75℃.
2 Feature
- Conforms to IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z
- Provide 8 10/100/1000TX RJ45 Copper ports and 2x1000M SFP ports
- High back-plane bandwidth 20Gbps
- 3x Flow control
- Surge protection for power port and data ports
- Wide power input: 12~57VDC
- Wide working temperature: -40~75℃
- IP30 Aluminum case
- 200,000 hours MTBF (Parts count reliability prediction)
3 Specifications
|
Attributes |
|
|
Networking Interfaces |
8 10/100/1000M RJ45 Copper ports. 2 1000M SFP ports. |
|
LED Indicators |
Power, Link/Act |
|
Copper Cable |
|
|
10Base-T |
2-pair UTP/STP Cat. 3,4,5/5E,6 cable EIA/TIA-568 100-ohm (100m) |
|
100Base-T |
2-pair UTP/STP Cat. 5/5E,6 cable EIA/TIA-568 100-ohm (100m) |
|
1000Base-T |
4-pair UTP/STP Cat. 5E,6 cable EIA/TIA-568 100-ohm (100m) |
|
Performance |
|
|
Switching Capacity |
20 Gbps |
|
Forwarding Capacity |
14.88 Mpps |
|
Forwarding Mode |
Store and Forward |
|
Packet Buffer Memory |
2 Mbit |
|
MAC Address Table |
16K |
|
Physical |
|
|
Dimensions |
140x138x60mm |
|
Weight |
|
|
Operating Temperature |
-40~75℃ |
|
Storage Temperature |
-40~85℃ |
|
Operating Humidity |
5 to 95% Noncondensing |
|
Power Method |
12-57VDC |
|
Max. Power Consumption |
10W |
|
EMC Safety |
FCC, CE, RoHS |
|
Reliability |
|
|
Package List |
|
|
Industrial PoE Switch |
1pcs |
|
User Manual |
1pcs |
4 Order Information
|
Switch Models |
|
|
IDS1608F2 |
8GE+2SFP Din-rail unmanaged Industrial Ethernet Switch |
