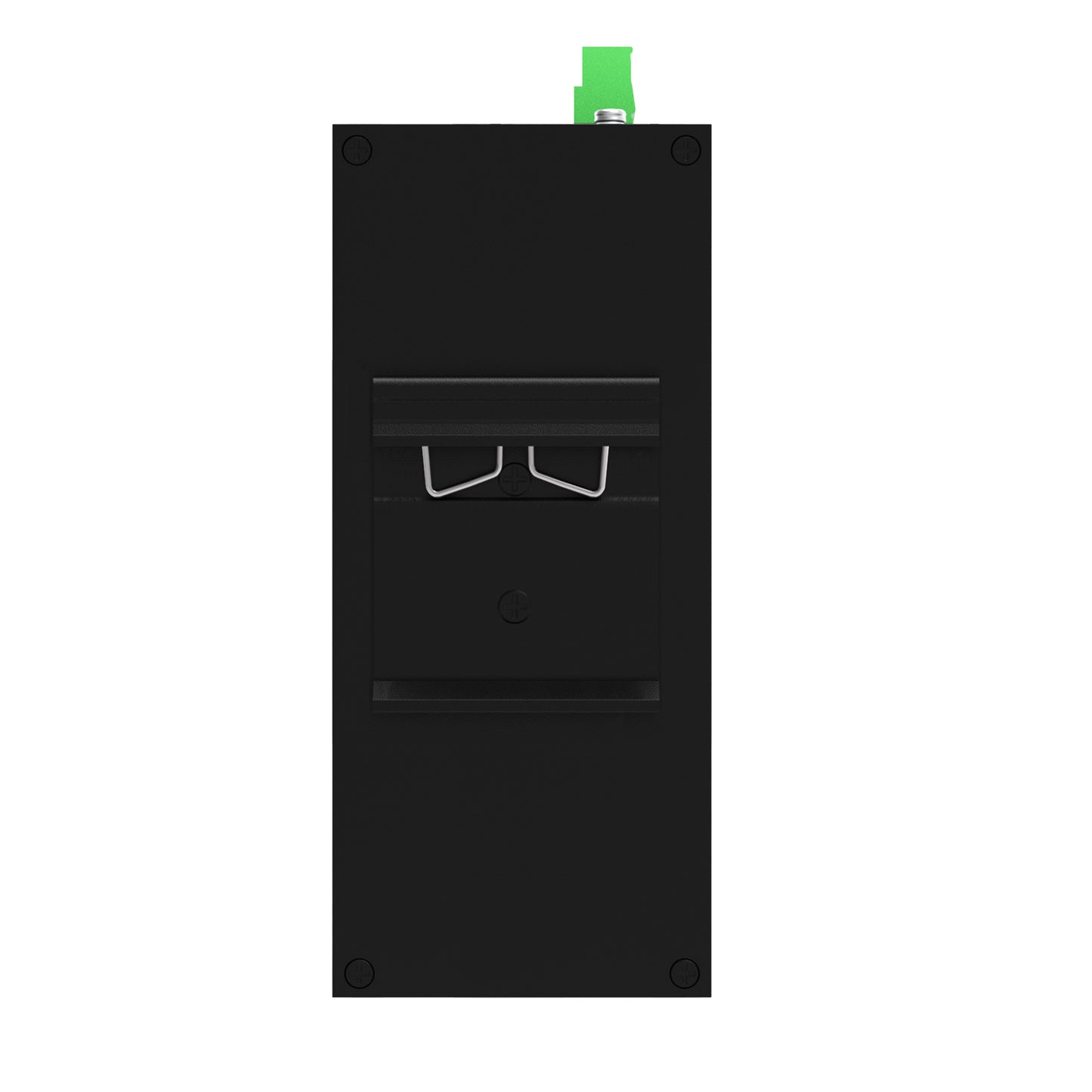

IDS1608F2-8P 8GE+2SFP Din-rail Unmanaged Industrial PoE Switch
IDS1608F2-8P 8GE+2SFP Din-rail Unmanaged Industrial PoE Switch
Couldn't load pickup availability
1 Description
The IDS1608F2-8P is a high performance Ethernet Switch with 8 x10/100/1000TX RJ45 Copper ports with 8 PoE and 2 x1000M SFP Ports, which meets the high reliability requirements demanded by industrial rolling stock applications. It provides L2 wire speed for network aggregation deployment. For more usage flexibilities, IDS1608F2-8P supports wide operating temperature from -40~75℃.
2 Features
- Conforms to IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE802.3af, IEEE802.3at
- Provide 8 10/100/1000TX RJ45 Copper ports with 8 PoE and 2x1000M SFP ports
- PoE Budget 120W
- High back-plane bandwidth 20Gbps
- IEEE802.3x Flow control
- Surge protection for power port and data ports
- Wide power input: 44~57VDC
- Wide working temperature: -40~75℃
- IP30 Aluminum case
- 200,000 hours MTBF (Parts count reliability prediction)
3 Specifications
|
Attributes |
|
|
Networking Interfaces |
8 10/100/1000M RJ45 Copper ports. 2 1000M SFP ports. |
|
LED Indicators |
Power, Link/Act, PoE |
|
Copper Cable |
|
|
10Base-T |
2-pair UTP/STP Cat. 3,4,5/5E,6 cable EIA/TIA-568 100-ohm (100m) |
|
100Base-T |
2-pair UTP/STP Cat. 5/5E,6 cable EIA/TIA-568 100-ohm (100m) |
|
1000Base-T |
4-pair UTP/STP Cat. 5E,6 cable EIA/TIA-568 100-ohm (100m) |
|
Performance |
|
|
Switching Capacity |
20 Gbps |
|
Forwarding Capacity |
14.88 Mpps |
|
Forwarding Mode |
Store and Forward |
|
Packet Buffer Memory |
2 Mbit |
|
MAC Address Table |
16K |
|
PoE Budget |
120W |
|
Physical |
|
|
Dimensions |
140x138x40mm |
|
Weight |
|
|
Operating Temperature |
-40~75℃ |
|
Storage Temperature |
-40~85℃ |
|
Operating Humidity |
5 to 95% Noncondensing |
|
Power Method |
44-57VDC |
|
Max. Power Consumption |
Including PoE Output: 125W Excluding PoE Output: 5W |
|
EMC Safety |
FCC, CE, RoHS |
|
Reliability |
|
|
Power over Ethernet |
|
|
PoE Interfaces |
Ports 1-8 |
|
PoE Standard |
IEEE802.3af, IEEE802.3at |
|
Max. PoE Wattage per Port |
30W |
|
PoE Voltage |
52VDC (Depend on Power Adapter) |
|
PoE Pin Assignment |
V- (RJ45 Pin1,2), V+ (RJ45 Pin 3,6) |
|
Package List |
|
|
Industrial PoE Switch |
1pcs |
|
User Manual |
1pcs |
4 Order Information
|
Switch Models |
|
|
IDS1608F2-8P |
8GE+2SFP Din-rail unmanaged Industrial PoE Switch |
