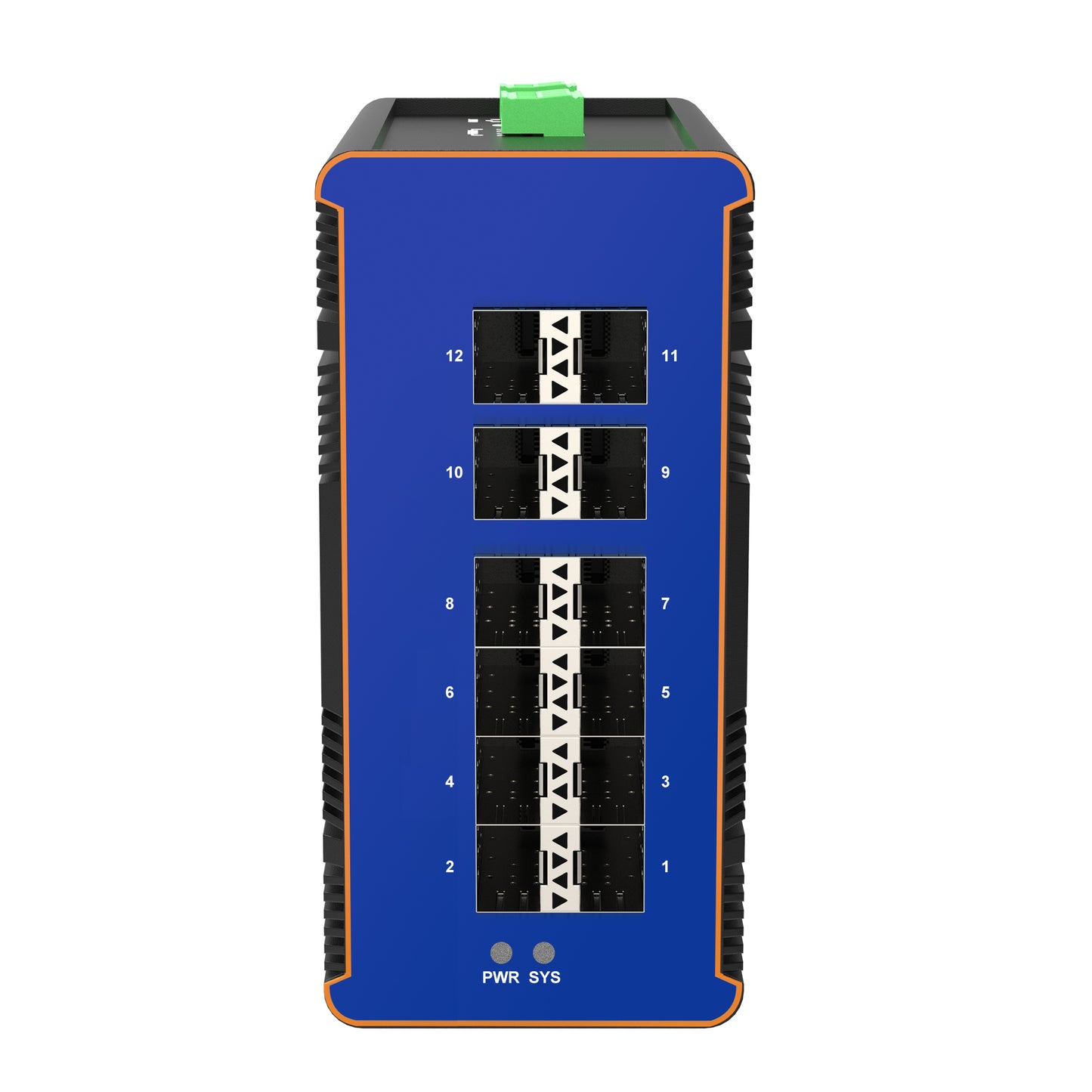

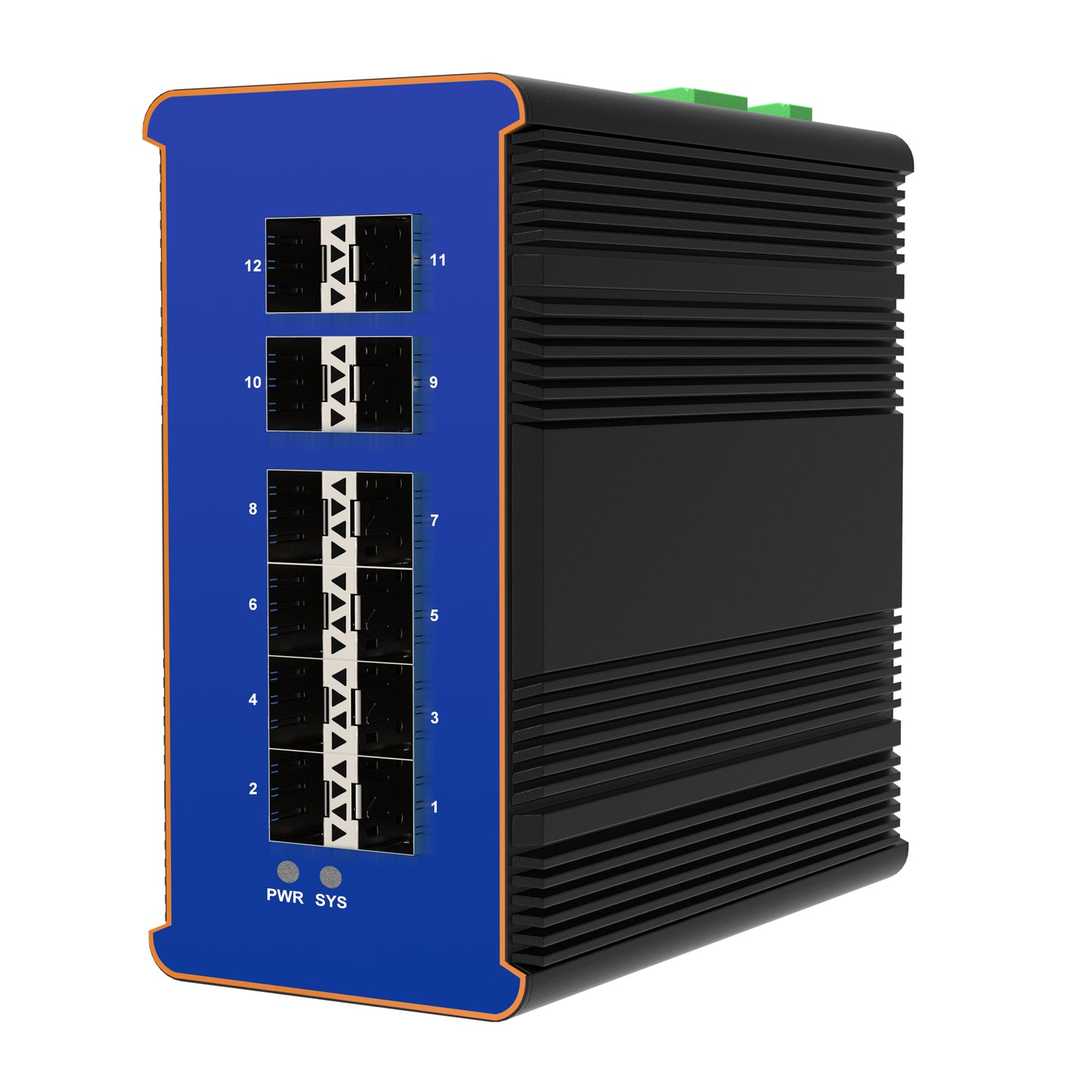

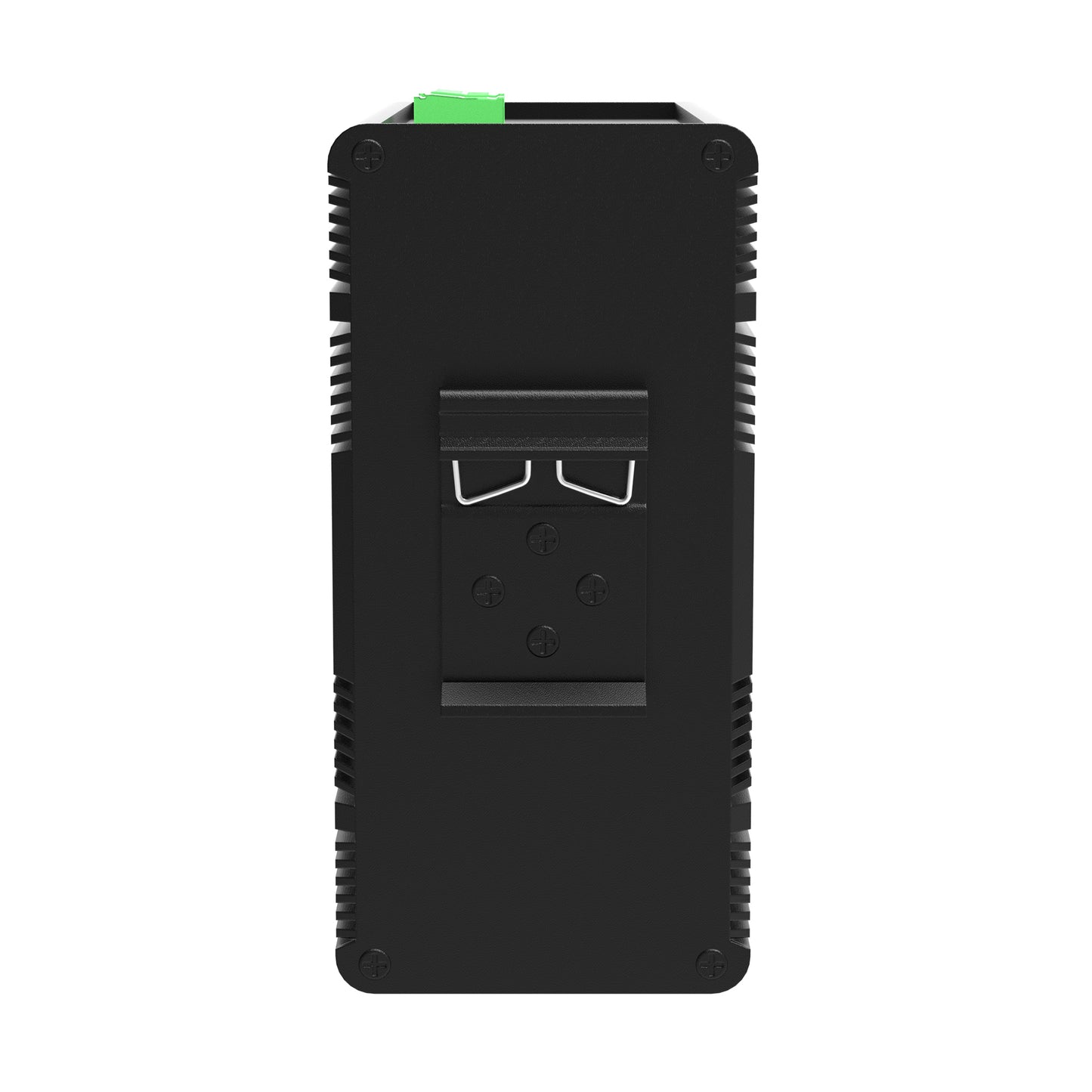

IDS7012X 12x10G SFP+ L3 Din-rail Managed Industrial Switch
IDS7012X 12x10G SFP+ L3 Din-rail Managed Industrial Switch
Couldn't load pickup availability
1 Description
The IDS7012X is a high performance L3 Managed Ethernet Switch with 12 x10G SFP+ Ports, which meets the high reliability requirements demanded by industrial rolling stock applications. It provides L2/L3 wire speed and advanced security function for network aggregation deployment. It delivers enhanced ring recovery less than 20ms in single ring. For more usage flexibilities, It supports wide operating temperature from -40~70℃.
2 Feature
- IEEE 802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3ae
- Provides 12 10G SFP+ ports
- High back-plane bandwidth 240Gbps
- Support MLD Snooping
- Support standard IP/ Extend IP / MAC IP / ARP ACL
- Support IGMP snooping for Multi-media application
- Support Port mirror and bandwidth control
- Support IEEE802.3x Flow control
- Support Port Based VLAN / 802.1Q Tag VLAN
- Support IEEE802.3ad Port trunk with LACP
- Support Spanning tree protocol IEEE802.1d/802.1w/802.1s
- Support IEEE 802.1p class of service
- Support IEEE 802.1x user authentication
- Support Broadcast storm filter
- Support Static Route, Policy Route, RIP, OSPF, VRRP
- Support System event log
- Support command line interface management
- Management by Web / SNMP / SSH / Telnet / Console
3 Specifications
|
Attributes |
|
|
Networking Interfaces |
12 x 10Gbps SFP+ Ethernet Ports |
|
Management Interface |
Console |
|
LED Indicators |
Power, Link/Act |
|
Performance |
|
|
Switching Capacity |
240 Gbps |
|
Forwarding Capacity |
178.6 Mpps |
|
Forwarding Mode |
Store and Forward |
|
Packet Buffer Memory |
16 Mbit |
|
RAM for CPU |
1 Gbit |
|
Flash Memory |
128 Mbit |
|
MAC Address Table |
16K |
|
Max. Jumbo Frame size |
16K |
|
VLAN Quantity |
4K |
|
ACL Table |
512 |
|
Routing Host |
768 (IPv4) or 384 (IPv6) |
|
Routing Entries |
64 |
|
Port Queues |
8 |
|
Physical |
|
|
Dimensions |
147.5 x 142.5 x 80 mm |
|
Weight |
|
|
Operating Temperature |
-40 to 70℃ |
|
Storage Temperature |
-40 to 70℃ |
|
Operating Humidity |
5 to 95% Noncondensing |
|
Power Method |
12~57VDC |
|
Max. Power Consumption |
50W |
|
EMC Safety |
FCC, CE, RoHS |
|
Reliability |
|
|
Port Configuration |
|
|
Enable and Disable |
Support control enable and disable |
|
Auto-Negotiation |
Support force port mode and speed |
|
Flow Control |
Support IEEE802.3x full-duplex Support half-duplex backpressure |
|
Storm Control |
Support broadcast, multicast and DLF package rate limit |
|
Port Mirroring |
Support many to one mirroring |
|
Rate Limit |
Support Port input and output rate limit |
|
Link Aggregation |
Support manual Link Aggregation Support LACP Up to 8 maximum aggregation groups, each containing up to 8 ports |
|
Aggregation Strategy |
Source MAC / Destination MAC / Source Destination MAC Source IP / Destination IP / Source Destination IP |
|
Port Protection |
Each port can be configured into isolated protected port from each other |
|
MAC Configuration |
|
|
MAC Address Table Management |
Support |
|
Transfer Mode |
Support IVL transfer mode |
|
Static MAC Address |
Support |
|
MAC Binding |
Support |
|
MAC Address Filter |
Support |
|
MAC Quantity Limitation |
Support limit the number of MAC-addresses Learning per port |
|
VLAN Configuration |
|
|
VLAN Based on 802.1Q |
Support |
|
MAC-Based VLAN |
Support |
|
IP-Based VLAN |
Support |
|
Protocol-Based VLAN |
Support |
|
Guest VLAN |
Support |
|
Private VLAN |
Support |
|
Reliability Protocol |
|
|
Spanning Tree |
Support STP/RSTP/MSTP |
|
BPDU Guard |
Support |
|
BPDU Filter |
Support |
|
Port Loop Detection |
Support |
|
EAPS Protocol |
Support RFC3619 |
|
LLDP Protocol |
Support LLDP and LLDP-MED |
|
UDLD Protocol |
Totally compatible with UDLD protocol of CISCO |
|
L3 Routing |
|
|
Static ARP & Dynamic ARP |
Support |
|
Static Routing |
Support |
|
Policy Routing |
Support |
|
RIP |
Support RIP v1/v2 |
|
OSPF |
Support OSPF v2 |
|
VRRP |
Support |
|
Multicast |
|
|
Static Multicast MAC Address |
Support |
|
IGMP SNOOPING |
Support |
|
MVR |
Support |
|
GMRP |
Support |
|
Access Control List (ACL) |
|
|
Based on Standard IP |
Support |
|
Based on Extend IP |
Support |
|
Based on MAC IP |
Support |
|
Based on MAC ARP |
Support |
|
Based on time |
Support |
|
Port Filtering |
Support |
|
Quality of Service (QOS) |
|
|
Scheduling Mode |
Support WRR, SP, WFQ |
|
Sorting Based on Port |
Support |
|
Sorting Based on 802.1p |
Support |
|
Sorting Based on DSCP(DiffServ) |
Support |
|
DHCP |
|
|
DHCP Client |
Support |
|
DHCP Relay |
Support |
|
DHCP Server |
Support |
|
DHCP option 82 |
Support |
|
DHCP Snooping |
Support |
|
Security |
|
|
Administrative Security |
Support start and end TELNET, WEB and SNMP serve Support TELNET, WEB and SNMP serve binding with Standard IP ACL Support control the number of user for TELNET |
|
CPU Protect |
Switch self-security protect, forbid flow attack |
|
IP-MAC Address Binding |
Support binding between static configuration IP, MAC and Port |
|
AAA |
Support 802.1x protocol Support RADIUS protocol Support RADIUS server authentication authorization and bill Support MAC-based 802.1X authentication. Support 802.1x guest VLAN |
|
DHCP SNOOPING |
Support dynamic ARP binding to prevent ARP spoofing Support dynamic IP, MAC port binding Support stationary port connect to DHCP server, to prevent privately connect to DHCP sever |
|
Prevent ARP Spoofing |
Support manual configure ACL rule based on MAC ARP prevent ARP spoofing Support DHCP SNOOPING function, switch dynamically binding ARP and port, when the DHCP get IP address , to prevent ARP spoofing |
|
IPv6 |
|
|
ICMPv6 |
Support |
|
IPv6 Neighbor Discovery |
Support |
|
MLD Snooping |
Support |
|
IPv6 Telnet |
Support |
|
IPv6 Static Route |
Support |
|
Management Feature |
|
|
CLI Management |
Support serial port management Support TELNET management Support SSH management |
|
WEB Management |
Support |
|
SNMP Management |
Support SNMP protocol Support SNMP TRAP Support standard and private MIB |
|
User management |
Support multi-user management |
|
Show CPU Utilization |
Support |
|
Show RAM Utilization |
Support |
|
Log Management |
Support |
|
Configuration Download / Upload |
Support |
|
Upgrade Firmware |
Support |
|
Timer Management |
Support local timer management Support SNTP protocol get clock |
|
Debugging Tools |
|
|
PING |
Support |
|
TRACEROUTE |
Support |
|
TELNET Client |
Support |
|
Package List |
|
|
Switch |
1pcs |
|
User Manual |
1pcs |
|
DB9 to RJ45 Cable |
1pcs |
4 Order Information
|
Switch Models |
|
|
IDS7012X |
12x10G SFP+ L3 Managed Industrial Switch |
