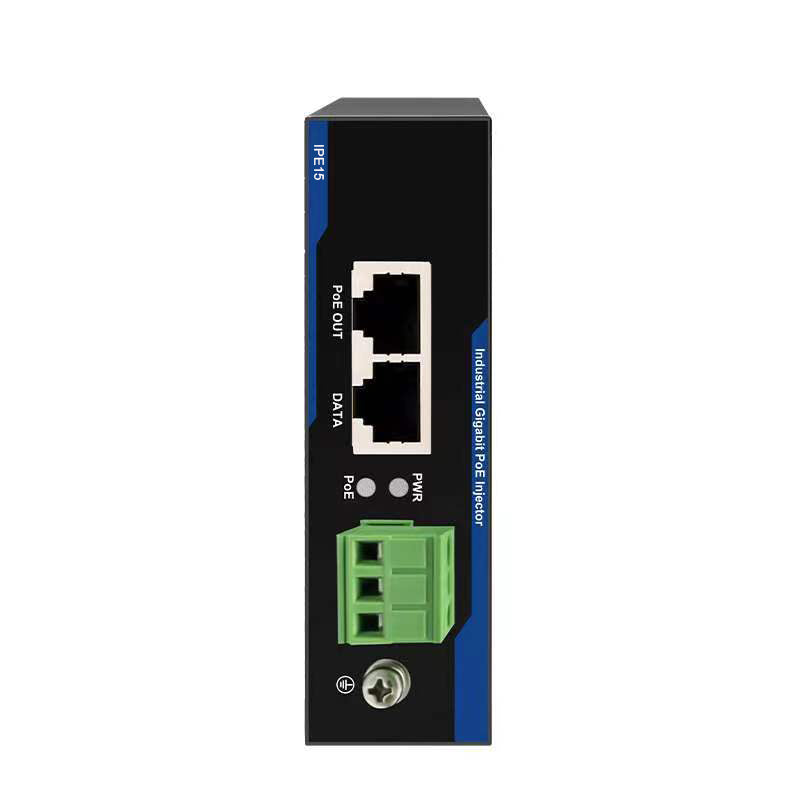

IPE15 15W IEEE802.3af Gigabit Industrial PoE Injector
IPE15 15W IEEE802.3af Gigabit Industrial PoE Injector
Couldn't load pickup availability
1 Description
IPE15 is a 15W gigabit Industrial POE injector which is designed to fit IEEE802.3af POE standard. The max output power is 15W which will meet the most end devices like IP Security cameras, VoIP telephone etc. IPE15 have got the CE Class A, LVD, FCC class A, ROHS2.0 certifications approval. It will help the traditional network extend to more and more use and will be helpful for the SMA and IOT solutions.
The IPE15 PoE providing a compact, affordable, safe and reliable power solution over existing Ethernet infrastructure.
2 Feature
- Full IEEE802.3af Compliant.
- Up to 15W of Power on 4-pairs
- Auto-detect of IEEE802.3af PD
- Supports 10/100/1000Base-T applications
- LED indicators power input and PoE output indication
- Distance up to 100 meters
- DC Input 45~56V
- DIN-Rail installation
- Wide operating temperature: -40 ~ +75℃
3 Specifications
|
Description |
|
|
Interfaces |
1 x RJ-45 Connector for Data 1 x RJ-45 Connector for PoE out + Data |
|
Standard |
IEEE802.3af |
|
Power Method |
45~56VDC |
|
Output Voltage |
52VDC |
|
PoE Budget |
15W |
|
Output PoE Pin Assignment |
Pin Assignment and Polarity: V+ (RJ45 Pin3,6), V- (RJ45 Pin 1,2) |
|
Dimensions |
103mm x 78mm x 32 mm |
|
Weight |
|
|
Operating Temperature |
-40 to 75℃ |
|
Storage Temperature |
-40 to 75℃ |
|
Operating Humidity |
5 to 95% Noncondensing |
|
Electromagnetic Emission & Immunity |
FCC (Part15, Class A) CE (EN55022/24) |
|
Safety Approvals |
CE/LVD (EN60950-1) |
|
ROHS |
ROHS 2.0 |
|
Package List |
|
|
Industrial PoE Injector |
1pcs |
|
User Manual |
1pcs |
|
Power Cable |
1pcs |
4 Order Information
|
Models |
|
|
IPE15 |
IEEE802.3 af Gigabit Industrial PoE Injector (15W) |
