IPE30 30W IEEE802.3at Gigabit Industrial PoE Injector
IPE30 30W IEEE802.3at Gigabit Industrial PoE Injector
Couldn't load pickup availability
1 Description
IPE30 is a 30W gigabit Industrial POE injector which is designed to fit IEEE802.3af、IEEE802.3at POE standard. The max output power is 30W which will meet the most end devices like IP Security cameras, VoIP telephone etc. IPE30 have got the CE Class A, LVD, FCC class A, ROHS2.0 certifications approval. It will help the traditional network extend to more and more use and will be helpful for the SMA and IOT solutions.
The IPE30 gigabit Industrial POE injector providing a compact, affordable, safe and reliable power solution over existing Ethernet infrastructure.
2 Feature
- Full IEEE802.3af, IEEE802.3at Compliant.
- Up to 30W of Power on 4-pairs
- Auto-detect of IEEE802.3af, IEEE802.3at PD
- Supports 10/100/1000Base-T applications
- LED indicators power input and PoE output indication
- Distance up to 100 meters
- DC Input 45~56V

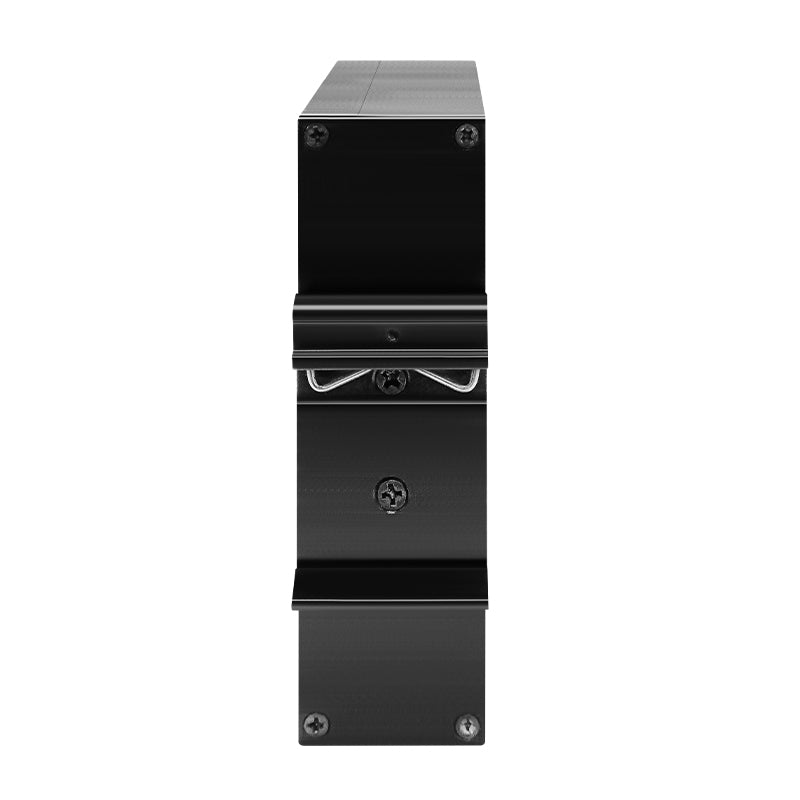

- DIN-Rail installation
- Wide operating temperature: -40 ~ +75℃
3 Specifications
|
Description |
|
|
Interfaces |
1 x RJ-45 Connector for Data 1 x RJ-45 Connector for PoE out + Data |
|
Standard |
IEEE802.3at, IEEE802.3at |
|
Power Method |
45~56VDC |
|
Output Voltage |
52VDC |
|
PoE Budget |
30W |
|
Output PoE Pin Assignment |
Pin Assignment and Polarity: V+ (RJ45 Pin3,6), V- (RJ45 Pin 1,2) |
|
Dimensions |
103mm x 78mm x 32 mm |
|
Weight |
|
|
Operating Temperature |
-40 to 75℃ |
|
Storage Temperature |
-40 to 75℃ |
|
Operating Humidity |
5 to 95% Noncondensing |
|
Electromagnetic Emission & Immunity |
FCC (Part15, Class A) CE (EN55022/24) |
|
Safety Approvals |
CE/LVD (EN60950-1) |
|
ROHS |
ROHS 2.0 |
|
Package List |
|
|
Industrial PoE Injector |
1pcs |
|
User Manual |
1pcs |
|
Power Cable |
1pcs |
4 Order Information
|
Models |
|
|
IPE30 |
IEEE802.3at Gigabit Industrial PoE Injector (30W) |
