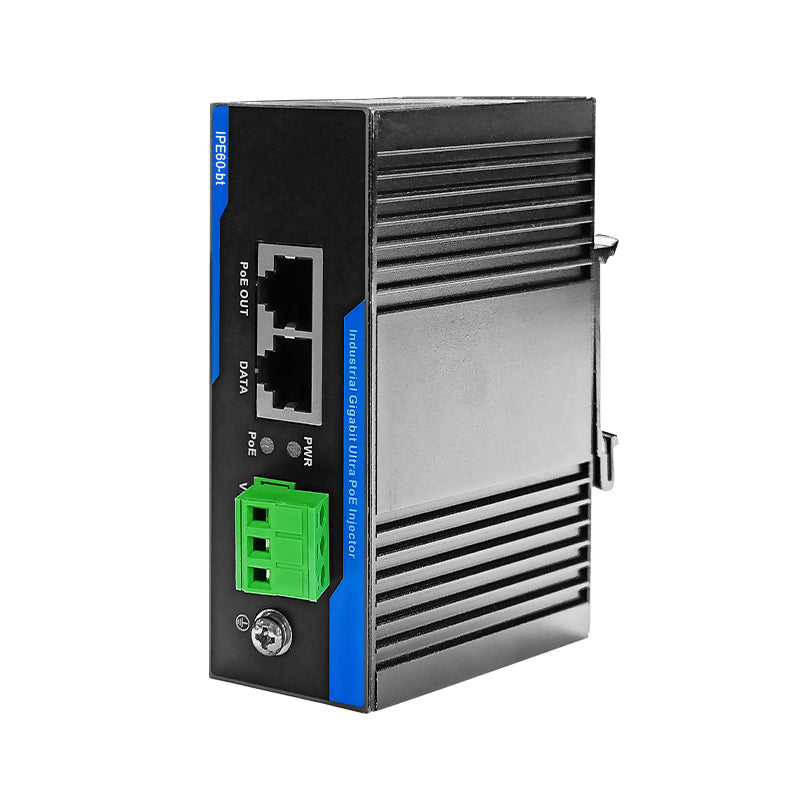

IPE60-bt 60W IEEE802.3bt Gigabit PoE Injector
IPE60-bt 60W IEEE802.3bt Gigabit PoE Injector
1 Description
IPE60-bt is a 60W gigabit POE injector which is designed to fit the new confirmed IEEE802.3bt POE standard. The max output power is 60W which will meet the most end devices like the LED, PTZ, AP etc. IPE60-bt have got the CE Class A, LVD, FCC class A, ROHS2.0 certifications approval. It will help the traditional network extend to more and more use and will be helpful for the SMA and IOT solutions.
The IPE60-bt PoE Mid-spans eliminate the need for external power supply and its associated AC/DC power cabling, providing a compact, affordable, safe and reliable power solution over existing Ethernet infrastructure.
2 Feature
- Full IEEE802.3af, IEEE802.3at, IEEE802.3bt Compliant.
- Up to 55W of Power on 4-pairs
- Auto-detect of IEEE802.3af, IEEE802.3at, IEEE802.3bt PD
- Supports 10/100/1000Base-T applications
- LED indicators power input and PoE output indication
- Distance up to 100 meters
- DC Input 45~56V

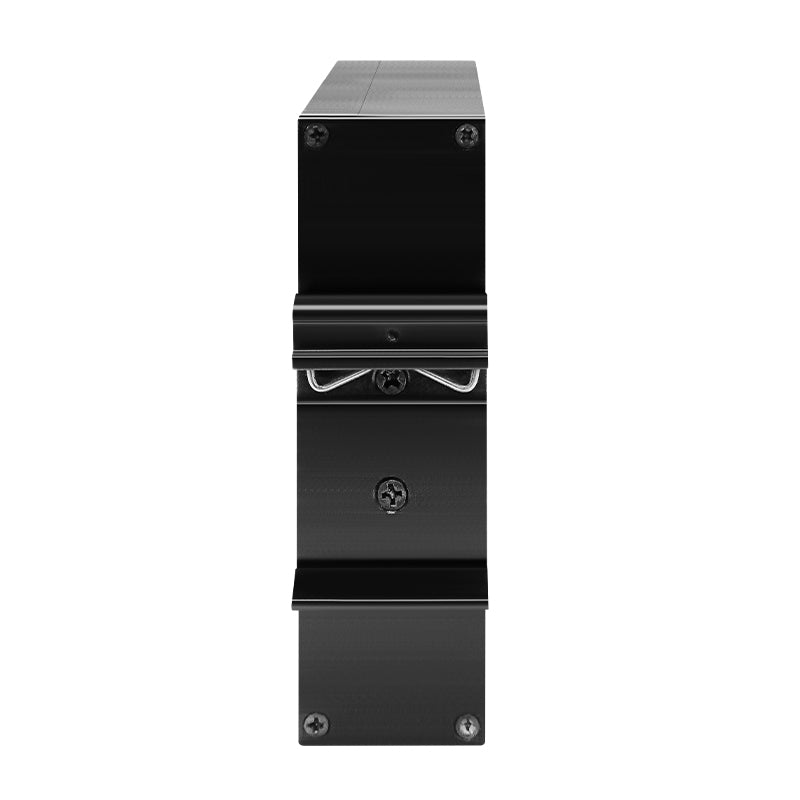

- DIN-Rail installation
- Wide operating temperature: -40 ~ +75℃
3 Specifications
Description |
|
Interfaces |

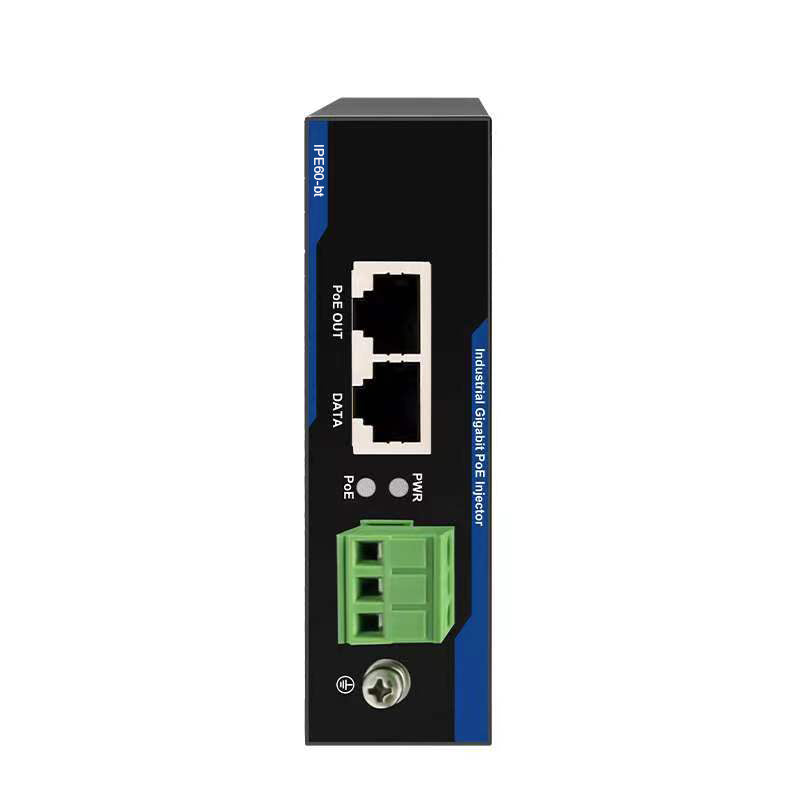

1 x RJ-45 Connector for Data 1 x RJ-45 Connector for PoE out + Data |
Indicators |
PoE: Alt A, Alt B |
Standard |
IEEE802.3af, IEEE802.3at, IEEE802.3bt |
Power Method |
100-240VAC, 50/60Hz |
Output Voltage |
52VDC |
PoE Budget |
60W |
Output PoE Pin Assignment |
Alternative A: V+ (RJ45 Pin3,6), V- (RJ45 Pin 1,2) Alternative B : V+ (RJ45 Pin4,5), V- (RJ45 Pin 7,8) |
Dimensions |
103mm x 65mm x 40 mm |
Weight |
|
Operating Temperature |
-40 to 75℃ |
Storage Temperature |
-40 to 75℃ |
Operating Humidity |
5 to 95% Noncondensing |
Electromagnetic Emission & Immunity |
FCC (Part15, Class A) CE (EN55022/24) |
Safety Approvals |
CE/LVD (EN60950-1) |
ROHS |
ROHS 2.0 |
Package List |
|
PoE Injector |
1pcs |
User Manual |
1pcs |
Power Cable |
1pcs |
4 Order Information
Models |
|
IPE60-bt |
IEEE802.3bt Gigabit PoE Injector (60W) |
