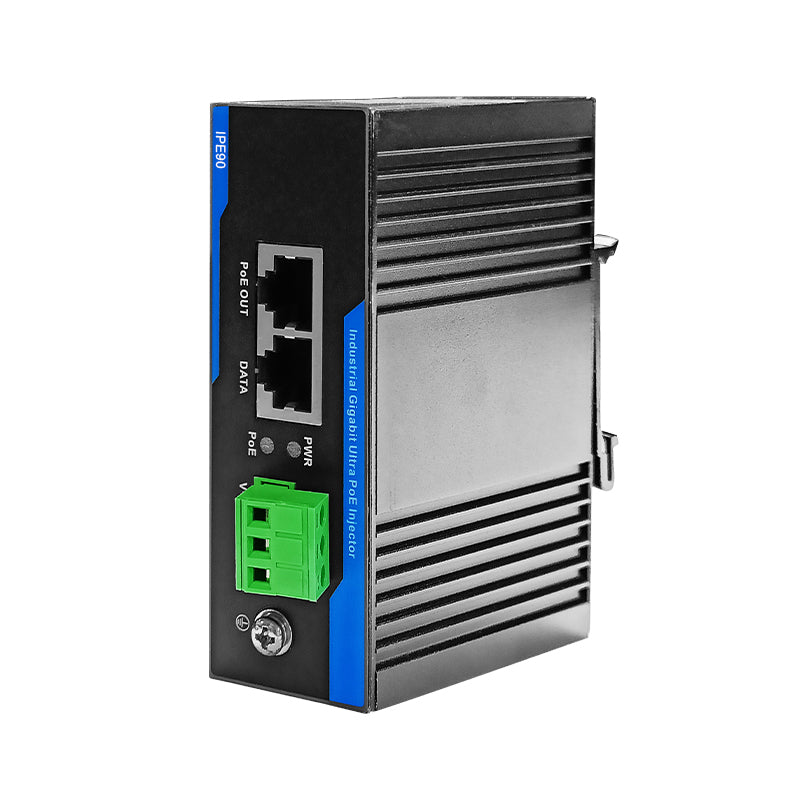

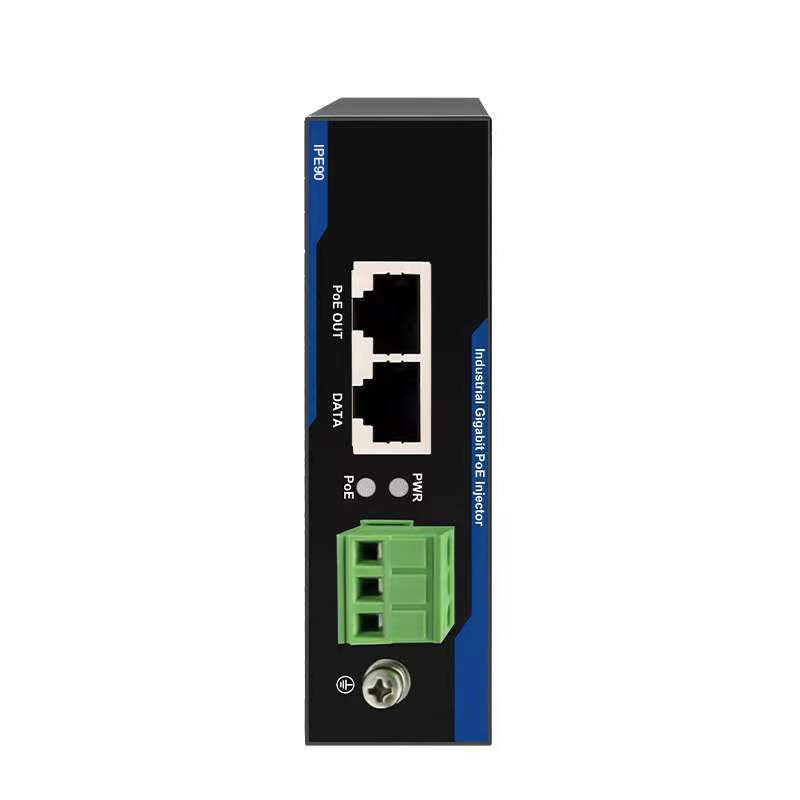

IPE90-bt 90W IEEE802.3bt Gigabit Industrial PoE Injector

1 Description

IPE90-bt is a 90W gigabit POE injector which is designed to fit the new confirmed IEEE802.3bt POE standard. The max output power is 90W which will meet the most end devices like the LED, PTZ, AP etc. IPE90-bt have got the CE Class A, LVD, FCC class A, ROHS2.0 certifications approval. It will help the traditional network extend to more and more use and will be helpful for the SMA and IOT solutions.

The IPE90-bt PoE Mid-spans eliminate the need for external power supply and its associated AC/DC power cabling, providing a compact, affordable, safe and reliable power solution over existing Ethernet infrastructure.

2 Feature

• Full IEEE802.3af, IEEE802.3at, IEEE802.3bt Compliant.
• Up to 81W of Power on 4-pairs
• Auto-detect of IEEE802.3af, IEEE802.3at, IEEE802.3bt PD
• Supports 10/100/1000Base-T applications
• LED indicators power input and PoE output indication
• Distance up to 100 meters
• DC Input 45~56V

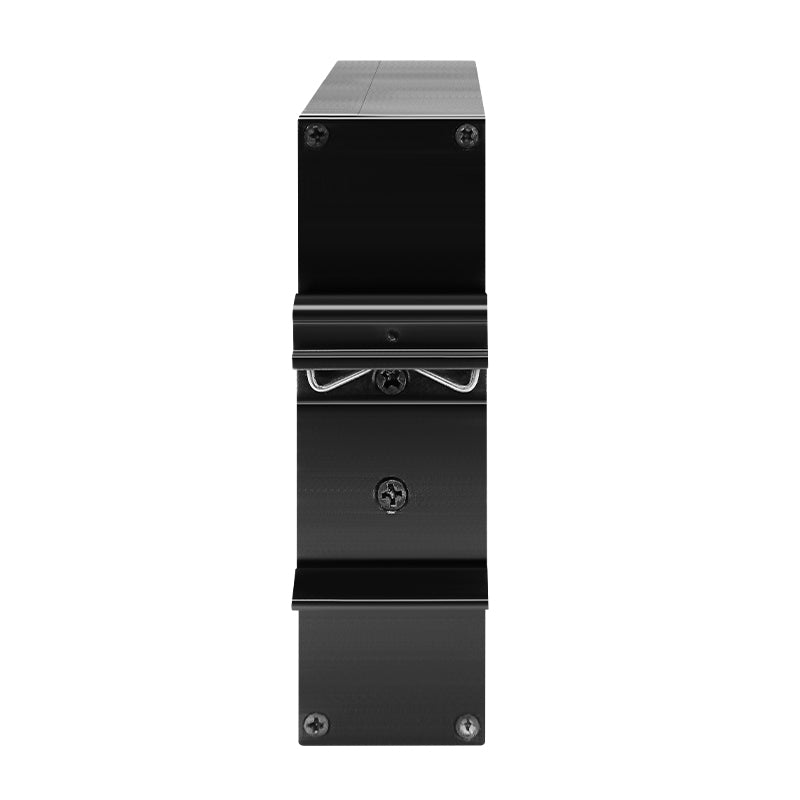

• DIN-Rail installation
• Wide operating temperature: -40 ~ +75℃

3 Specifications

4 Order Information
