Product Details
Technical specifications, PoE power information, installation and compatibility.
Specifications
Ethernet
Data Rate
10/100/1000Base-T
Data Input Port
1 × RJ45 Ethernet Data Input
PoE Output Port
1 × RJ45 PoE Output (Data + Power)
Power over Ethernet
PoE Standard
IEEE 802.3at / IEEE 802.3bt / LTPoE++
Input Voltage
12–48V DC
Maximum PoE Output
95W
Environmental
Operating Temperature
-40°C to 80°C
Protection
RJ45 Surge Protection: 1KV
Power Surge Protection: 500V
ESD Protection: 4KV / 8KV
Power Surge Protection: 500V
ESD Protection: 4KV / 8KV
Mechanical

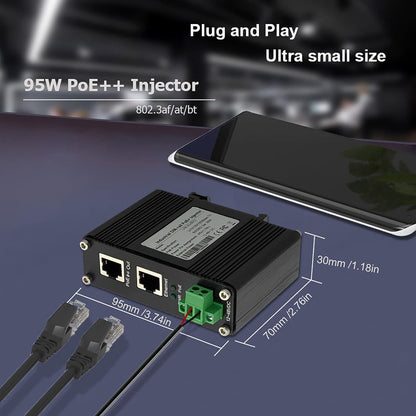

Dimensions
95 × 70 × 30 mm
Mounting
DIN-Rail / Wall-Mount
PoE & Power
Power Input & Output
DC Input
12–48V DC
Maximum PoE Output
95W
PoE Standard
IEEE 802.3at / IEEE 802.3bt / LTPoE++
PoE Budget
Up to 95W at 24V/48V DC input; up to 60W at 12V DC input.
Ports & Installation
Interfaces
Ethernet Data Input
1 × RJ45 Ethernet Data Input
PoE Output
1 × RJ45 PoE Output (Data + Power)
Installation
Mounting
DIN-Rail / Wall-Mount
Dimensions
95 × 70 × 30 mm
Compatibility
Network & PoE Compatibility
PoE Standards
IEEE 802.3at / IEEE 802.3bt / LTPoE++
Ethernet
10/100/1000Base-T
Operating Temperature
-40°C to 80°C
Protection
RJ45 Surge Protection: 1KV
Power Surge Protection: 500V
ESD Protection: 4KV / 8KV
Power Surge Protection: 500V
ESD Protection: 4KV / 8KV
Resources
Downloads
Technical documents will appear here when available.

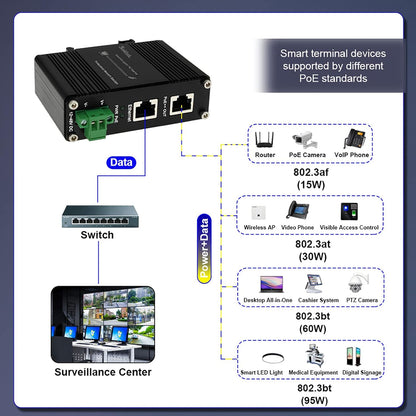

Add PoE to Your Existing Network
Connect a non-PoE switch to Data In and your powered device to PoE Out. The IPE95e adds up to 95W PoE power while maintaining Gigabit Ethernet connectivity.

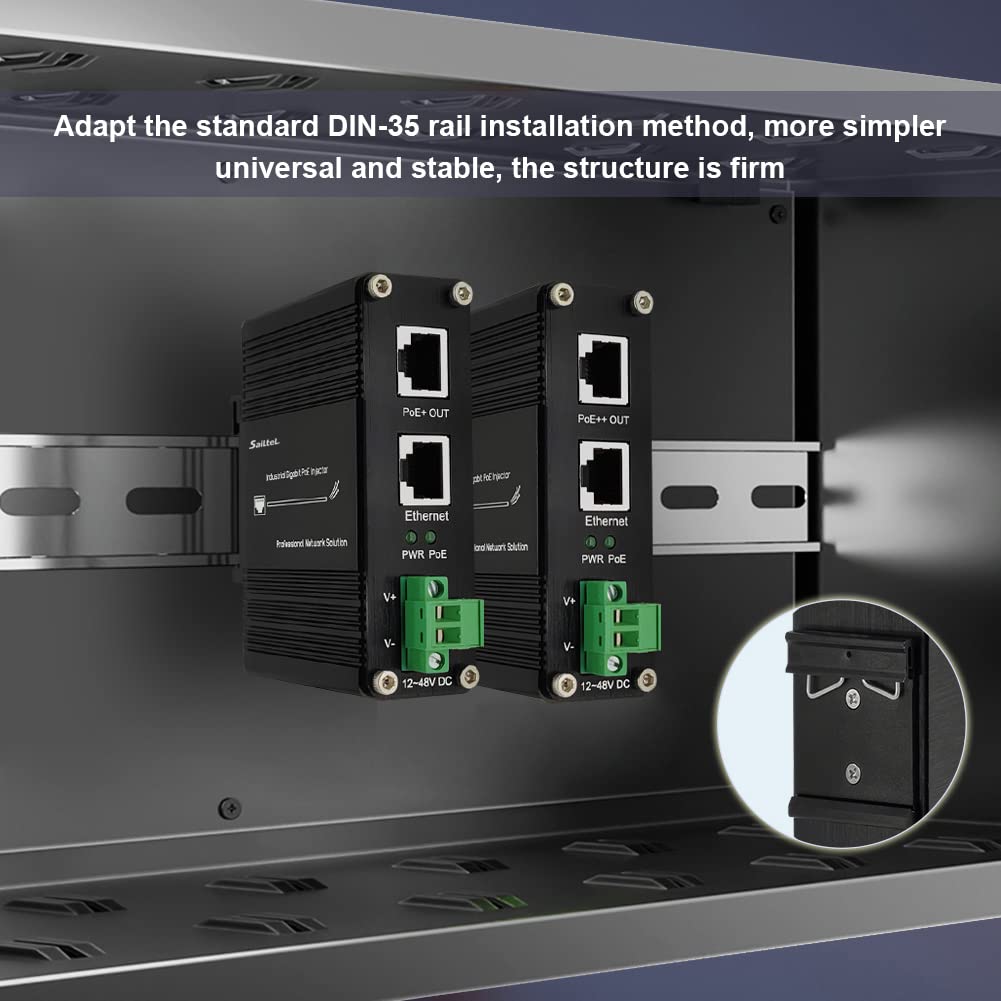

DIN-Rail or Wall-Mount Installation
Install the IPE95e on a DIN rail or mount it directly to a wall for flexible deployment in industrial cabinets and edge network environments.
Typical Applications
-
IP Surveillance
Power PoE IP cameras from an existing non-PoE Ethernet network.
-
Wireless Access Points
Add PoE power for compatible wireless access points without replacing the existing network switch.
-
Industrial Edge Networks
Deploy PoE-powered devices in cabinets and industrial edge environments with 12–48V DC input.
Questions & Answers
Practical answers for selecting, connecting and deploying this PoE product.
What does an industrial PoE injector do?
An industrial PoE injector adds DC power to an existing Ethernet connection, allowing a non-PoE network switch to power a compatible PoE device through the Ethernet cable.
How many devices can a single-port PoE injector power?
A single-port PoE injector provides one powered Ethernet output and is designed to power one compatible PoE device at a time.
Does the IPE95e provide 95W with a 12V DC input?
No. The IPE95e supports up to 60W PoE output with 12V DC input. With 24V or 48V DC input, the maximum stated PoE budget is up to 95W.
What DC input voltage does the IPE95e support?
The IPE95e supports a 12–48V DC input through its terminal block.
Can the IPE95e be used with a non-PoE network switch?
Yes. Connect the non-PoE switch to the Ethernet Data Input port and the powered device to the PoE Output port.
Does the IPE95e support Gigabit Ethernet?
Yes. Both Ethernet ports support 10/100/1000Base-T Ethernet. SPEC IPE95e V1.0
What types of devices can the IPE95e power?
The IPE95e can be used with compatible PoE devices such as IP cameras and wireless access points, subject to the device’s PoE power requirement. SPEC IPE95e V1.0
How can the IPE95e be installed?
The IPE95e supports both DIN-rail and wall-mount installation. SPEC IPE95e V1.0
How does the input voltage affect the IPE95e PoE power budget?
The IPE95e provides up to 60W PoE output with a 12V DC input and up to 95W with a 24V or 48V DC input. Select the DC supply according to the power requirement of the connected device.
What PoE standards does the IPE95e support?
The IPE95e supports IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt PoE applications and also supports LTPoE++ high-power PSE operation.
What operating temperature does the IPE95e support?
The IPE95e is designed for operation from -40°C to 80°C for industrial environments.
