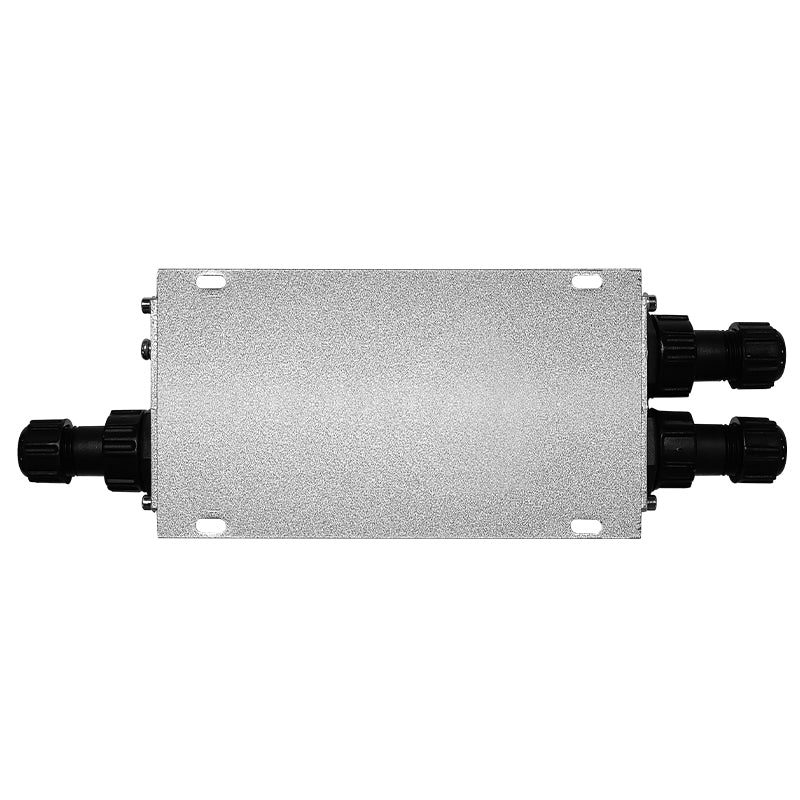

IPX102-bt IP65 Standard 1 in 2 output bt standard 10/100M PoE Extender

1 Description

IPX102-bt is an enhanced version 10/100M POE extender which is designed based on the new standard IEEE802.3bt standard. The input port is based on IEEE802.3 bt standard, and the Max input power is around 75W. The output two ports also fit the IEEE802.3bt standard, the output power is 70W max per port. All three ports fit IEE802.3at and IEEE802.3af standard. With the IP65 water-proof case and connectors design, this product is mainly used for the outdoor big power solutions like the PTZ, AP etc. This product all Ports support 6KV surge protection. Based on those unique design, it will make your long-distance solution “ Easy” “Stable” and “Variety”.

2 Feature

• IEEE 802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at
• One PoE Input (PD port) and one PoE output (PSE ports)
• 10/100M Base-T Ports
• Extends the range of PoE and Ethernet an additional 100 meters.
• No additional power supply is required.
• Automatically detects and protects PoE equipment from being damaged by incorrect installation.
• Full-rate network throughout the whole extended distance.
• Compact size, Wall-Mountable design.
• Easy plug-and-play installation.
• IP65 Aluminum case
• CE class A, LVD, FCC, ROHS 2.0

3 Specifications

4 Order Information
