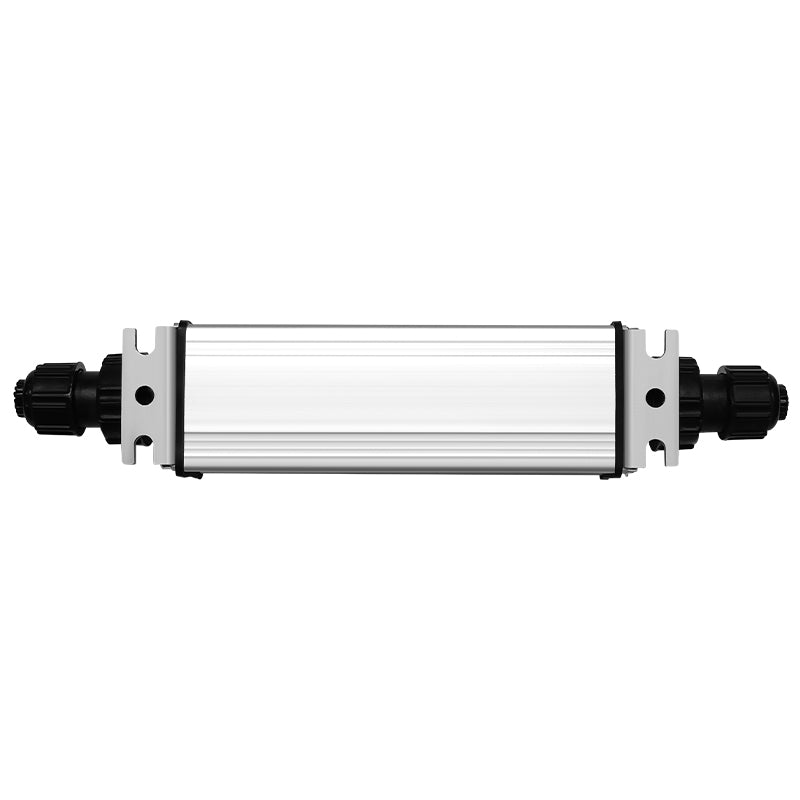

IPX201 IP65 Standard 1 in 1 output Gigabit PoE Extender

IPX201 IP65 Standard 1 in 1 output Gigabit PoE Extender

Regular price $72.86 USD
Regular price Sale price $72.86 USD
Sale Sold out

1 Description

IPX201 is an IP65 water-proof standard Gigabit POE extender which is designed based on IEEE802.3at standard. The input port is based on IEEE802.3at standard, the max input power is around 26W. The output two port is fit the IEEE802.3af and IEEE802.3at standard, the output power is 25W max per port. With the IP65 water-proof case and connectors design, this product is mainly used for the outdoor long distance solutions like the IPC, AP, VOIP etc. This product all Ports can optional support 6KV surge protection. Based on those unique design, it will make your long-distance solution “ Easy” “Stable” and “Variety”.

2 Feature

  • IEEE 802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at
  • One PoE Input (PD port) and one PoE output (PSE ports)
  • 10/100/1000M Base-T Ports
  • Extends the range of PoE and Ethernet an additional 100 meters.
  • No additional power supply is required.
  • Automatically detects and protects PoE equipment from being damaged by incorrect installation.
  • Full-rate network throughout the whole extended distance.
  • Compact size, Wall-Mountable design.
  • Easy plug-and-play installation.
  • IP65 Aluminum case
  • CE class A, LVD, FCC, ROHS 2.0

3 Specifications

Power over Ethernet

PoE Interfaces

1 x RJ-45 Connector for 802.3af/at Power input

1 x RJ-45 Connector for 802.3af/at Power output

PoE Standard

IEEE802.3af, IEEE802.3at

Input PoE Voltage


Input PoE Pin Assignment

Both 1/2 (-), 3/6 (+) and  7/8 (-), 4/5 (+)

Output PoE Wattage

Max 23W

Output PoE Pin Assignment

1/2 (-), 3/6 (+)

Power cost




140mm x 40mm x 30mm



Operating Temperature

-40 to 75℃

Storage Temperature

-40 to 85℃

Operating Humidity

5 to 95% Noncondensing

Ingress Protection Level



Emission & Immunity

FCC (Part15, Class A)

CE (EN55022/24)

Safety Approvals

CE/LVD (EN60950-1)


ROHS 2.0

Package List

PoE Extender


User Manual



4 Order Information



IP65 1 in 1 out Gigabit PoE Extender
