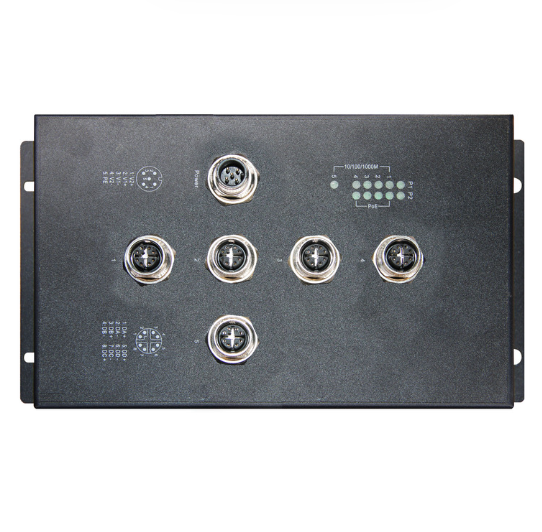

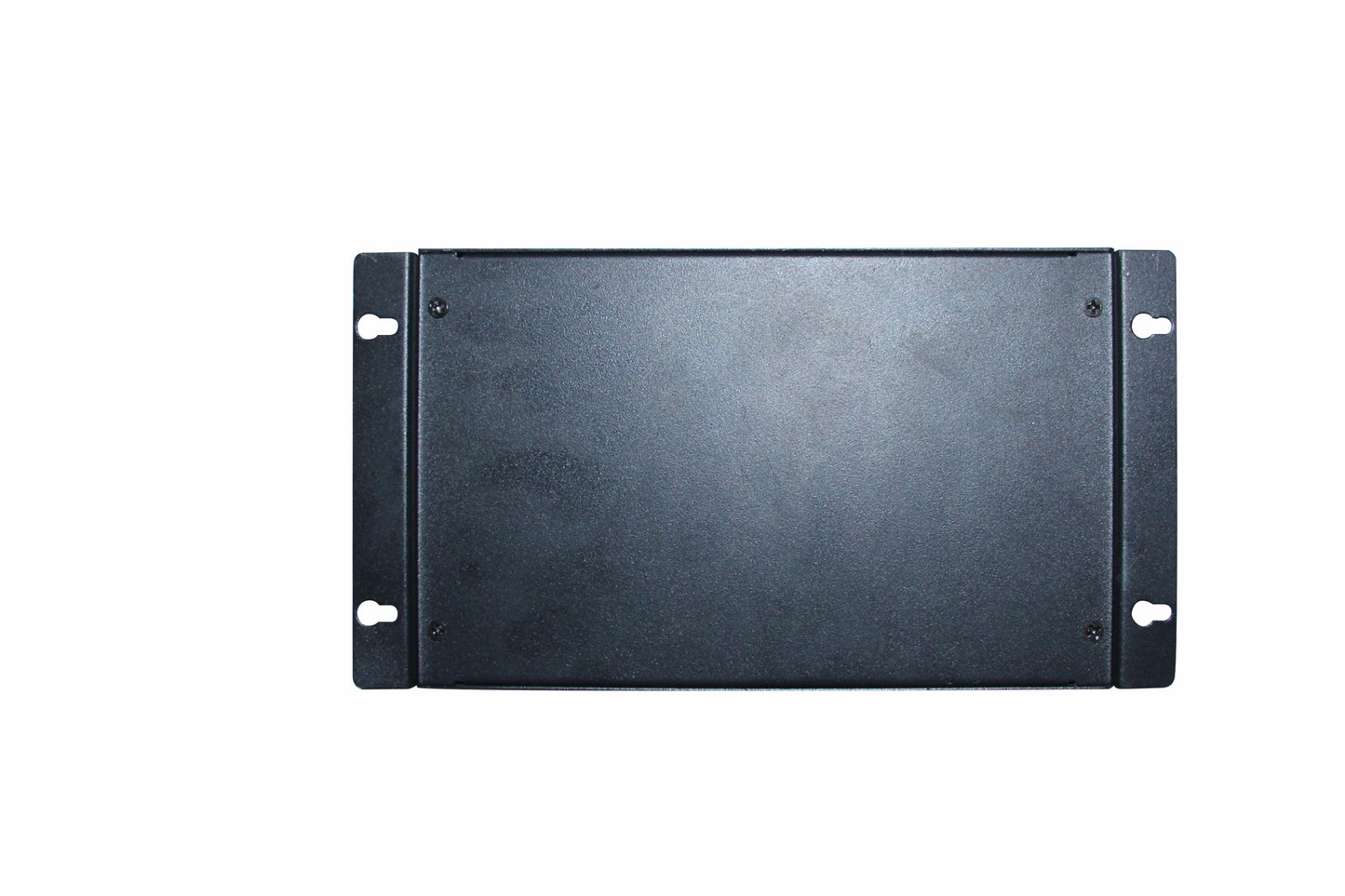

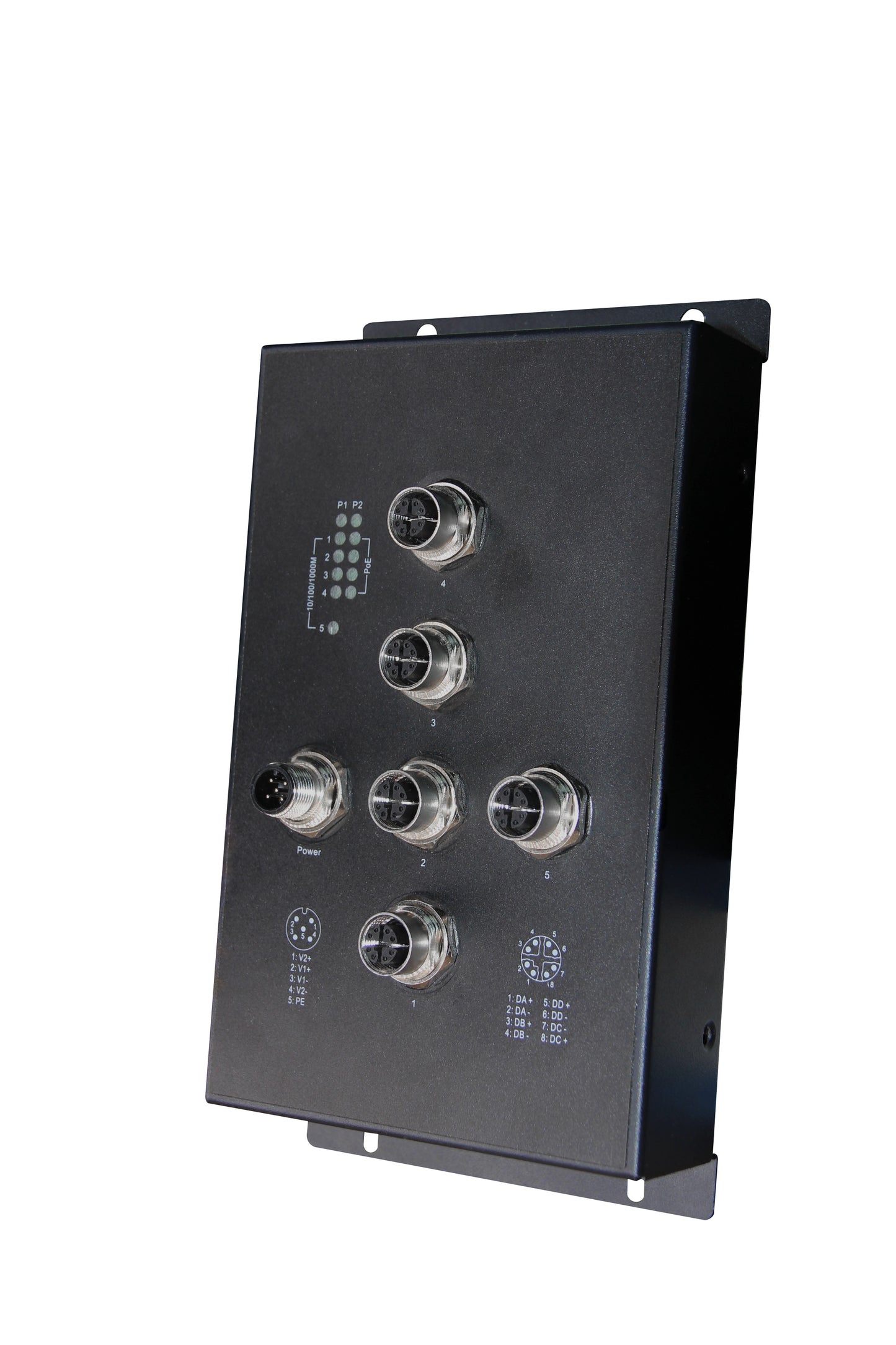

IS1605-M12 5GE Unmanaged Industrial Ethernet Switch

IS1605-M12 5GE Unmanaged Industrial Ethernet Switch

Regular price $371.43 USD
Regular price Sale price $371.43 USD
Sale Sold out

1 Description

The IS1605-M12 is a high performance unmanaged industrial Ethernet Switch with 5 x10/100/1000TX M12 Copper ports, which meets the high reliability requirements demanded by industrial rolling stock applications. The IS1605-M12 is designed to meet witch critical network environment with IP30 iron shell enclosure and M12 connectors for shockproof. It is best for railway in train/track side, vehicle and mining applications. For more usage flexibilities, IS1605-M12 supports wide operating temperature from -40~75℃.

2 Feature

  • Conforms to IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z
  • Provide 5 10/100/1000TX M12 Copper ports
  • High back-plane bandwidth 10Gbps
  • 3x Flow control
  • Surge protection for power port and data ports
  • Wide power input:12~57VDC
  • Wide working temperature: -40~75℃
  • IP30 case
  • 200,000 hours MTBF (Parts count reliability prediction)



3 Specifications

Attributes

Networking Interfaces

5 10/100/1000M M12 (x-code) Copper ports.

LED Indicators

Power, Link/Act

Copper Cable

10Base-T

2-pair UTP/STP Cat. 3,4,5/5E,6 cable EIA/TIA-568 100-ohm (100m)

100Base-T

2-pair UTP/STP Cat. 5/5E,6 cable EIA/TIA-568 100-ohm (100m)

1000Base-T

4-pair UTP/STP Cat. 5E,6 cable EIA/TIA-568 100-ohm (100m)

Performance

Switching Capacity

10 Gbps

Forwarding Capacity

7.44 Mpps

Forwarding Mode

Store and Forward

Packet Buffer Memory

2 Mbit

MAC Address Table

8K

Physical

Dimensions

200x110x90mm

Weight

1.5KG

Operating Temperature

-40 to 75℃

Storage Temperature

-40 to 85℃

Operating Humidity

5 to 95% Noncondensing

Power Method

12-57VDC

Max. Power Consumption

10W

EMC Safety

FCC, CE, RoHS

Package List

Ethernet Switch

1pcs

User Manual

1pcs



4 Order Information

Switch Models

IS1605­-M12

5GE Unmanaged Industrial Ethernet Switch (IP30)
