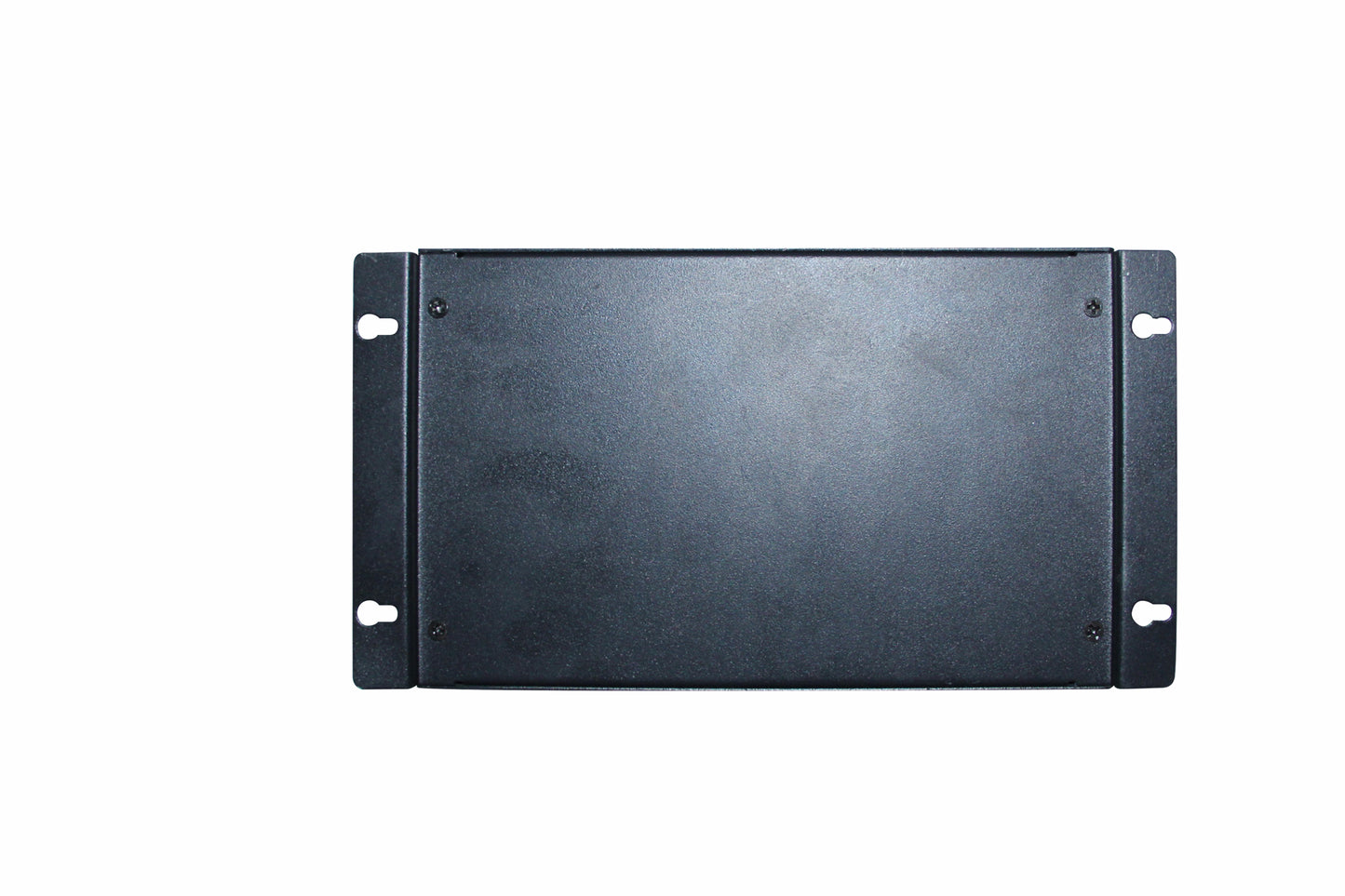

IS1608-M12 8GE Unmanaged Industrial Ethernet Switch

1 Description

The IS1608-M12 is a high performance unmanaged industrial Ethernet Switch with 8 x10/100/1000TX M12 Copper ports , which meets the high reliability requirements demanded by industrial rolling stock applications. The IS1608-M12 is designed to meet witch critical network environment with IP30 iron shell enclosure and M12 connectors for shockproof. It is best for railway in train/track side, vehicle and mining applications. For more usage flexibilities, IS1608-M12 supports wide operating temperature from -40~75℃.

2 Feature

• Conforms to IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z
• Provide 8 10/100/1000TX M12 Copper ports
• High back-plane bandwidth 20Gbps
• 3x Flow control
• Surge protection for power port and data ports
• Wide power input:12~57VDC
• Wide working temperature: -40~75℃
• IP30 case
• 200,000 hours MTBF (Parts count reliability prediction)

3 Specifications

4 Order Information
