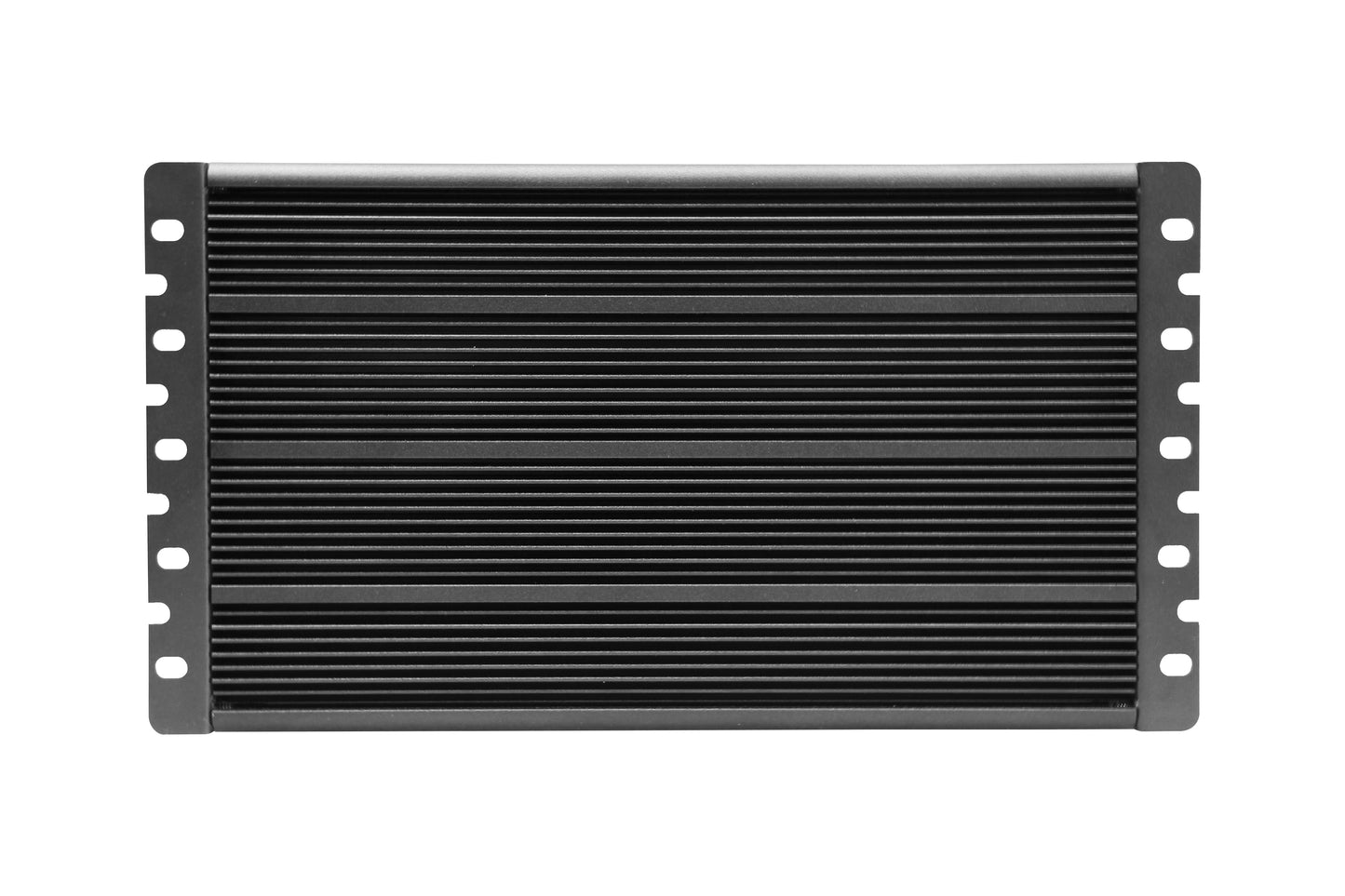

IS3024G-M12-BP-DC75 24GE EN50155 L3 Managed Industrial Ethernet Switch
IS3024G-M12-BP-DC75 24GE EN50155 L3 Managed Industrial Ethernet Switch
Couldn't load pickup availability
1 Description
The IS3024G-M12-BP is a high performance L2/L3 Managed Industrial Ethernet Switch with 24x10/100/1000TX M12 Copper Ports, which meets the high reliability requirements demanded by industrial rolling stock applications. It provides L2/L3 wire speed and advanced security function for network aggregation deployment. It delivers enhanced ring recovery less than 20ms in single ring. And passive bypass function guarantees that networks remain functional even at multiple points of failure.
The IS3024G-M12-BP is designed to meet which critical network environment with IP40 aluminum enclosure and M12 connectors for water proof. It is best for railway in train/track side, vehicle and mining applications. For more usage flexibilities, It supports wide operating temperature from -40~75℃.
2 Feature
- Conforms to IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z
- Provide 24x10/100/1000TX M12 Copper ports
- High back-plane bandwidth 48Gbps
- Supports optional bypass function
- Supports RSTP, EAPS, ERPS ring network redundancy protocols
- Supports Layer 3 routing protocols such as static Routing, OSPF, RIP, VRRP and BGP
- Support command line interface management
- Management by Http/Https/Telnet/ SSH/ SNMP/Console
- Complies with the requirements of EN50155 Industrial standards
- Wide power input: 36~75VDC
- Wide working temperature: -40~75℃
- IP40 protection class
3 Specifications
|
Attributes |
|
|
Networking Interfaces |
24 10/100/1000Mbps X-Code M12 Copper ports |
|
Management Interface |
Console |
|
LED Indicators |
Power, Link/Act |
|
Performance |
|
|
Switching Capacity |
48 Gbps |
|
Forwarding Capacity |
35.7 Mpps |
|
Forwarding Mode |
Store and Forward |
|
Packet Buffer Memory |
12 Mbit |
|
RAM for CPU |
2 Gbit |
|
Flash Memory |
512 Mbit |
|
MAC Address Table |
16K |
|
Max. Jumbo Frame size |
16K |
|
ACL Table |
512 |
|
VLAN Quantity |
4K |
|
VLAN Interface |
512 |
|
Multicast groups |
1K |
|
Routing Host |
512 IPv4 or 256 IPv6 |
|
Routing Entries |
64 |
|
Port Queues |
8 |
|
Physical |
|
|
Dimensions |
270*140*50mm |
|
Weight |
|
|
Operating Temperature |
-40 to 75℃ |
|
Storage Temperature |
-40 to 75℃ |
|
Operating Humidity |
5 to 95% Noncondensing |
|
Power Method |
36~75VDC |
|
Max. Power Consumption |
15W |
|
EMC Safety |
FCC, CE, RoHS |
|
Reliability |
Supports bypass power failure bypass function (Gigabit port only) |
|
Port Configuration |
|
|
Enable and Disable |
Support control enable and disable |
|
Auto-Negotiation |
Support force port mode and speed |
|
Flow Control |
Support IEEE802.3x full-duplex Support half-duplex backpressure |
|
Storm Control |
Support broadcast, multicast and DLF package rate limit |
|
Port Mirroring |
Support many to one mirroring |
|
Rate Limit |
Support Port input and output rate limit |
|
Link Aggregation |
Support manual Link Aggregation Support LACP Up to 8 maximum aggregation groups, each containing up to 8 ports |
|
Aggregation Strategy |
Source MAC / Destination MAC / Source Destination MAC Source IP / Destination IP / Source Destination IP |
|
Port Protection |
Each port can be configured into isolated protected port from each other |
|
MAC Configuration |
|
|
MAC Address Table Management |
Support |
|
Transfer Mode |
Support IVL transfer mode |
|
Static MAC Address |
Support |
|
MAC Binding |
Support |
|
MAC Address Filter |
Support |
|
MAC Quantity Limitation |
Support limit the number of MAC-addresses Learning per port |
|
VLAN Configuration |
|
|
VLAN Based on 802.1Q |
Support |
|
MAC-Based VLAN |
Support |
|
IP-Based VLAN |
Support |
|
Protocol-Based VLAN |
Support |
|
Guest VLAN |
Support |
|
Private VLAN |
Support |
|
Reliability Protocol |
|
|
Spanning Tree |
Support STP/RSTP/MSTP |
|
BPDU Guard |
Support |
|
BPDU Filter |
Support |
|
Port Loop Detection |
Support |
|
EAPS Protocol |
Support RFC3619 |
|
LLDP Protocol |
Support LLDP and LLDP-MED |
|
UDLD Protocol |
Totally compatible with UDLD protocol of CISCO |
|
L3 Routing |
|
|
Static ARP & Dynamic ARP |
Support |
|
Static Routing |
Support |
|
Policy Routing |
Support |
|
RIP |
Support RIP v1/v2 |
|
OSPF |
Support OSPF v2 |
|
VRRP |
Support |
|
Multicast |
|
|
Static Multicast MAC Address |
Support |
|
IGMP SNOOPING |
Support |
|
IGMP Querier |
Support |
|
IGMP Filter |
Support |
|
MVR |
Support |
|
GMRP |
Support |
|
Access Control List (ACL) |
|
|
Based on Standard IP |
Support |
|
Based on Extend IP |
Support |
|
Based on MAC IP |
Support |
|
Based on MAC ARP |
Support |
|
Based on time |
Support |
|
Port Filtering |
Support |
|
Quality of Service (QOS) |
|
|
Scheduling Mode |
Support WRR, SP, WFQ |
|
Sorting Based on Port |
Support |
|
Sorting Based on 802.1p |
Support |
|
Sorting Based on DSCP(DiffServ) |
Support |
|
DHCP |
|
|
DHCP Client |
Support |
|
DHCP Relay |
Support |
|
DHCP Server |
Support |
|
DHCP option 82 |
Support |
|
DHCP Snooping |
Support |
|
Security |
|
|
Administrative Security |
Support start and end TELNET, WEB and SNMP serve Support TELNET, WEB and SNMP serve binding with Standard IP ACL Support control the number of user for TELNET |
|
CPU Protect |
Switch self-security protect, forbid flow attack |
|
IP-MAC Address Binding |
Support binding between static configuration IP, MAC and Port |
|
AAA |
Support 802.1x protocol Support RADIUS protocol Support RADIUS server authentication authorization and bill Support MAC-based 802.1X authentication. Support 802.1x guest VLAN |
|
DHCP SNOOPING |
Support dynamic ARP binding to prevent ARP spoofing Support dynamic IP, MAC port binding Support stationary port connect to DHCP server, to prevent privately connect to DHCP sever |
|
Prevent ARP Spoofing |
Support manual configure ACL rule based on MAC ARP prevent ARP spoofing Support DHCP SNOOPING function, switch dynamically binding ARP and port, when the DHCP get IP address , to prevent ARP spoofing |
|
Management Feature |
|
|
CLI Management |
Support serial port management Support TELNET management Support SSH management |
|
WEB Management |
Support |
|
SNMP Management |
Support SNMP protocol Support SNMP TRAP Support standard and private MIB |
|
User management |
Support multi-user management |
|
Show CPU Utilization |
Support |
|
Show RAM Utilization |
Support |
|
Log Management |
Support |
|
Configuration Download / Upload |
Support |
|
Upgrade Firmware |
Support |
|
Timer Management |
Support local timer management Support SNTP protocol get clock |
|
Debugging Tools |
|
|
PING |
Support |
|
TRACEROUTE |
Support |
|
TELNET Client |
Support |
|
Package List |
|
|
Switch |
1pcs |
|
User Manual |
1pcs |
|
DB9 to M12 Cable |
1pcs |
4 Order Information
|
Switch Models |
|
|
IS3024G-M12-BP-DC75 |
24GE EN50155 L3 Managed Industrial Ethernet Switch |
