NVIDIA MMS4X00 NS400 Transceiver Compatible 400G OSFP DR4 Flat Top PAM4 1310nm MTP/MPO-12 500m SM
NVIDIA MMS4X00 NS400 Transceiver Compatible 400G OSFP DR4 Flat Top PAM4 1310nm MTP/MPO-12 500m SM
1 Description

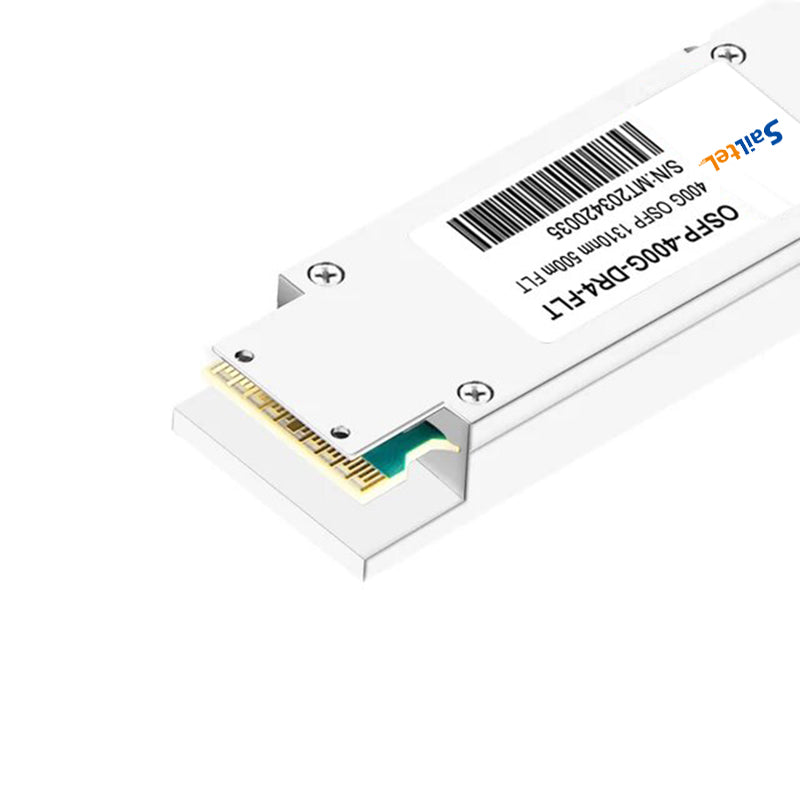

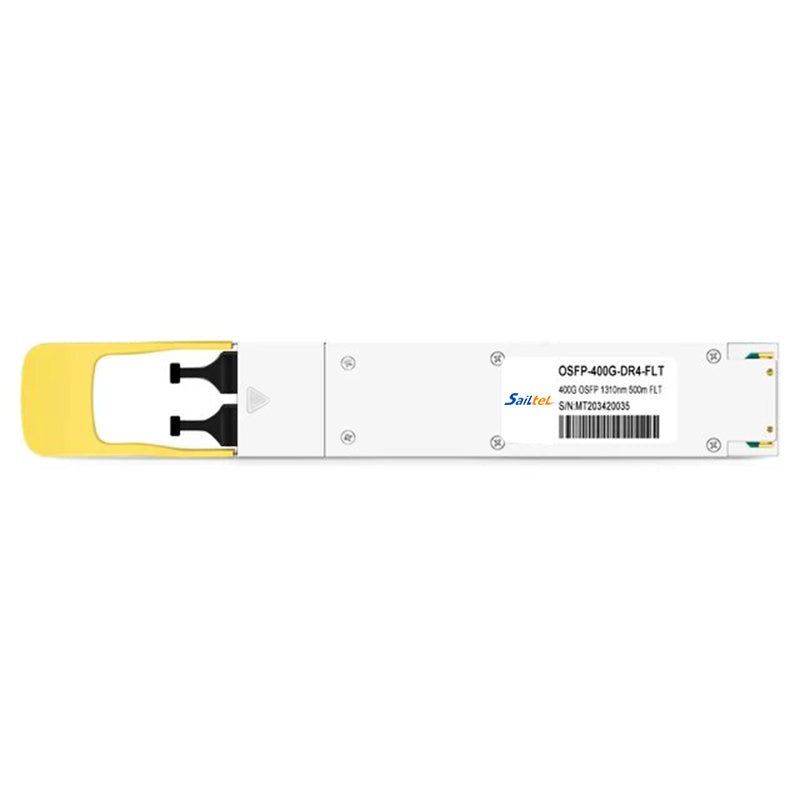

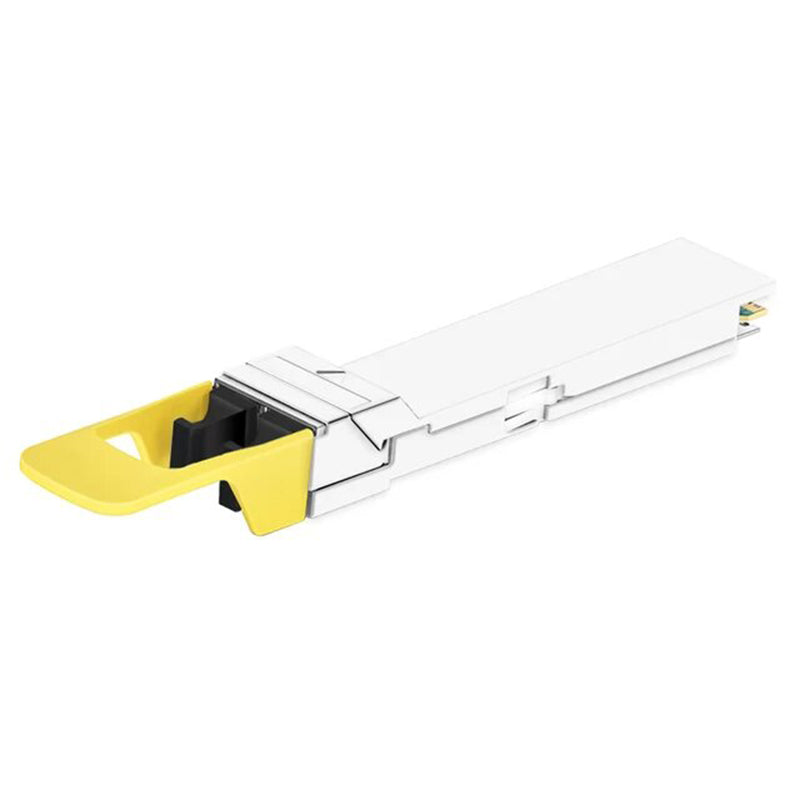

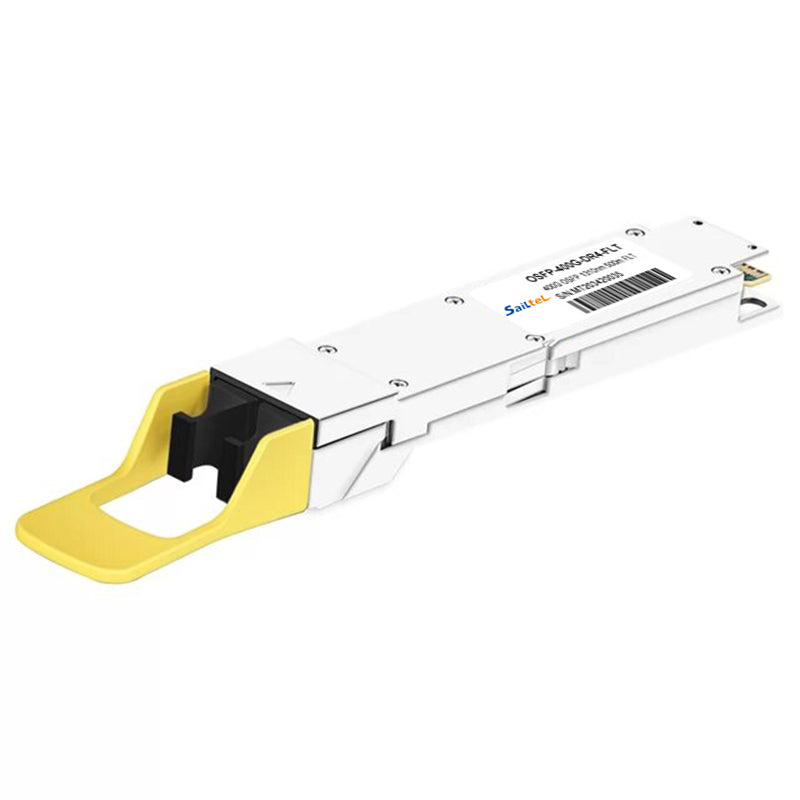

The NVIDIA MMS4X00-NS400 Transceiver is an InfiniBand (IB) and Ethernet (ETH) 400Gb/s, Single-port, OSFP, DR4 single mode parallel transceiver using a single, 4-channel MPO-12/APC optical connector. The Datacenter Reach 4-channel (DR4) design uses 100G-PAM4 modulation and has a maximum fiber reach of 100-meters and assumes two optical patch panels in the link. It has identical design and internals as the QSFP112 version with different connector shells.
The transceiver firmware supports both InfiniBand and Ethernet and is automatically enabled depending on the protocol of the connected switch. The OSFP shell has a flat-top and utilizes the riding heat sink (cooling fins) on the ConnectX-7 connector cage.
When linked to 1:2 splitter fiber cable split end has only 2 channels and will activate only 2-channels in the 400G transceiver automatically creating a 200G speed and reducing power consumption.
Single mode optics is denoted by a yellow-colored pull tab and optical fiber. Green plastic shell on the MPO-12/APC optical connector denotes Angled Polish Connector (APC) and is not compatible with the aqua colored Ultra-flat Polished Connectors (UPC).
NVIDIA’s Single-port and Twin-port transceiver combinations guarantee optimal operation in NVIDIA end-to-end InfiniBand systems and a rigorous production tested to ensure the best out-of-the-box installation experience, performance, and durability.
2 Product Features
- OSFP MSA compliant
- Parallel 4 Optical Lanes
- 3bs Specification compliant
- Up to 500m transmission on single mode fiber (SMF) with FEC
- Operating case temperature: 0 to 70oC
- 4x100G PAM4 retimed 400GAUI-4 electrical interface
- Data Rate 106.25Gbps (PAM4) per channel
- Maximum power consumption 12W
- MPO-12 APC connector
- RoHS compliant
3 Application Scenario
- 400G Ethernet
- Infiniband Interconnects
- Datacenter Enterprise Networking
4 Order Information
Part Number |
Product Description |
NVIDIA MMS4X00 NS400 |
Compatible 400G OSFP DR4 Flat Top PAM4 1310nm MTP/MPO-12 500m SMF |
