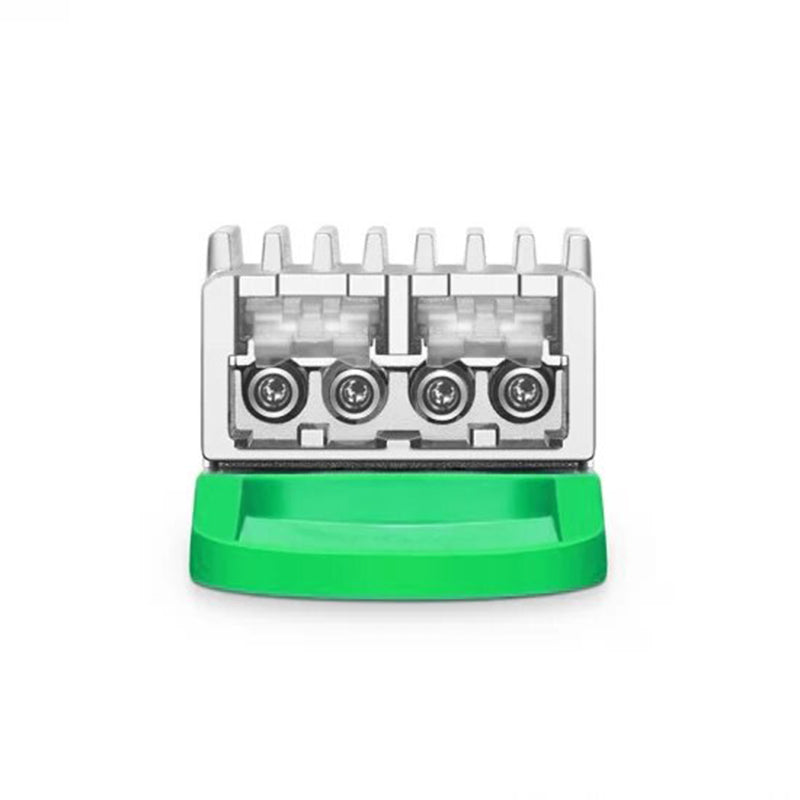

OSFP 2x200G FR4 Transceiver 2x 200G OSFP FR4 PAM4 2x CWDM4 CS 2km SMF FEC
OSFP 2x200G FR4 Transceiver 2x 200G OSFP FR4 PAM4 2x CWDM4 CS 2km SMF FEC
1 Description
The OSFP 2x200G FR4 Transceiver is a highly integrated 2x200G transceiver focused on reach, bandwidth, density and cost for datacenter deployments. The module has 8 independent electrical input/output channels operating at 53.125Gb/s per channel. Optically the module consists of two transmit/receive units, with each operating on a set of 4 wavelengths on the ITU G.694.2 CWDM grid near 1300nm. The transmit path of the module incorporates a bi-directional PAM4 retimer ASIC integrated with an 8-channel modulator driver, 8 externally modulated lasers (two on each CWDM channel) and two optical multiplexers. On the receive path, two optical demultiplexers are coupled to 8 photodiodes and two 4-channel TIA arrays, along with the PAM4 retimer. The electrical interface of the module is compliant with the 400GAUI-8 interface as defined by IEEE 802.3bs.
2 Product Features
- OSFP MSA compliant
- 2 sets of 4 CWDM lanes MUX/DEMUX design
- Compliant to IEEE 802.3bs Specification
- Up to 2km transmission on single mode fiber (SMF) with FEC
- Operating case temperature: 20 to 60oC
- 125Gb/s electrical interface (400GAUI-8)
- Data Rate 53.125Gbps (PAM4) per channel.
- Maximum power consumption 12W
- CS duplex connectors
- RoHS compliant
3 Application Scenario
- 400G Ethernet
- Data Center Interconnect
- Infiniband Interconnects
- Enterprise Networking
4 Order Information
Part Number |
Product Description |
OSFP 2x200G FR4 |
2x 200G OSFP FR4 PAM4 2x CWDM4 CS 2km SMF FEC |
