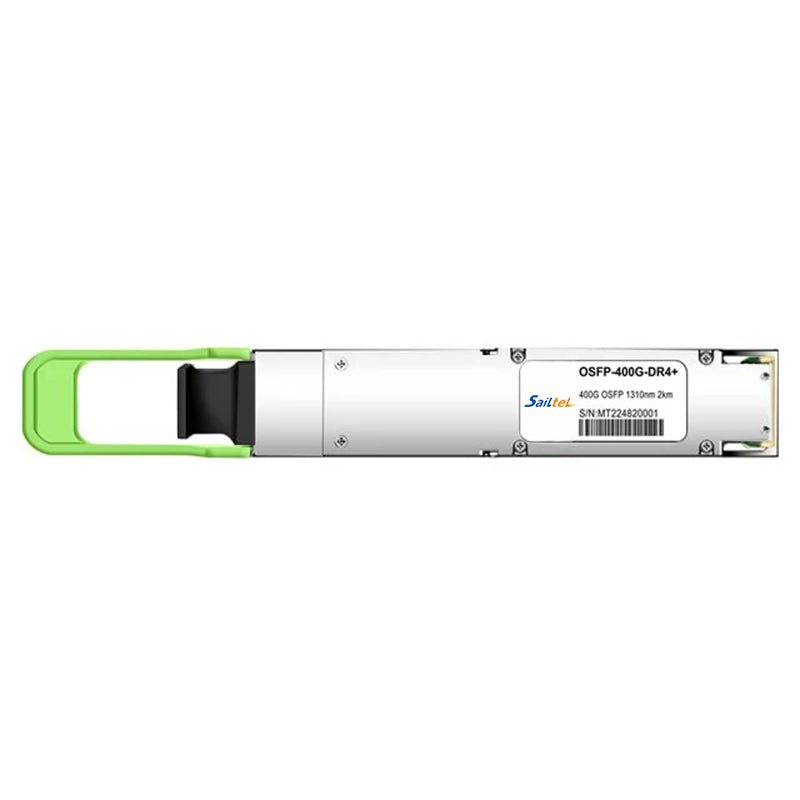

OSFP 400G DR4+ Transceiver 400G OSFP DR4+ 1310nm MPO-12 2km SMF

1 Description

The OSFP 400G DR4+ transceivers are RTXM500-454 400G OSFP DR4+ transceiver modules are designed for use in 400 Gigabit Ethernet links on up to 2km of single mode fiber. They are compliant with the OSFP MSA, IEEE 802.3bs and 100G Lambda MSA.The optical transceiver is RoHS compliant.

2 Product Features

• OSFP MSA compliant
• Parallel 4 Optical Lanes
• 3bs Specification compliant
• Up to 2km transmission on single mode fiber (SMF) with FEC
• Operating case temperature: 0°C to 70°C
• 125Gb/s electrical interface (400GAUI-8)
• Data Rate 106.25Gbps (PAM4) per channel.
• Maximum power consumption 12W
• MPO-12 connector
• RoHS compliant

3 Application Scenario

• 400G Ethernet
• Datacenter Enterprise Networking
• Infiniband Interconnects

4 Order Information
