OSFP 400G DR4 Transceiver 400G OSFP DR4 PAM4 1310nm MTP/MPO-12 500m SMF FEC

OSFP 400G DR4 Transceiver 400G OSFP DR4 PAM4 1310nm MTP/MPO-12 500m SMF FEC

Regular price $871.07 USD
Regular price Sale price $871.07 USD
Sale Sold out

1 Description

The OSFP 400G DR4 Transceivers are designed for use in 400 Gigabit Ethernet links on up to 500m of single mode fiber. They are compliant with the OSFP MSA, IEEE 802.3bs and 100G Lambda MSA.The optical transceiver is RoHS compliant.

2 Product Features

  • OSFP MSA compliant
  • Parallel 4 Optical Lanes
  • 3bs Specification compliant
  • Up to 500m transmission on single mode fiber (SMF) with FEC
  • Operating case temperature: 0 to 70oC
  • 125Gb/s electrical interface (400GAUI-8)
  • Data Rate 106.25Gbps (PAM4) per channel.
  • Maximum power consumption 12W

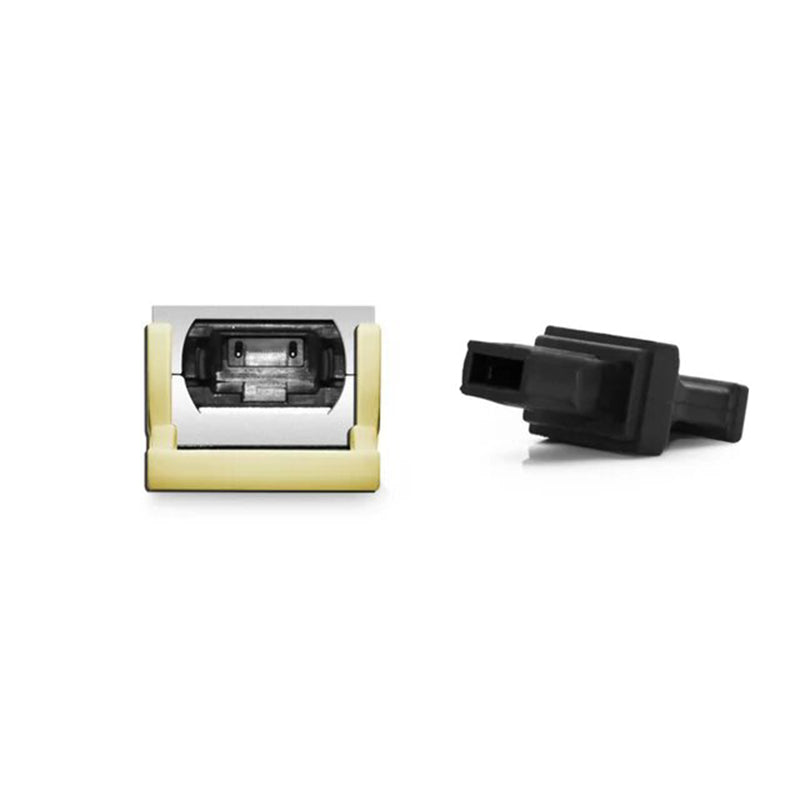

  • MPO-12 connector
  • RoHS compliant

3 Application Scenario

  • 400G Ethernet
  • Datacenter Enterprise Networking
  • Infiniband Interconnects

4 Order Information

Part Number

Product Description

OSFP 400G DR4

400G OSFP DR4 PAM4 1310nm MTP/MPO-12 500m SMF FEC
