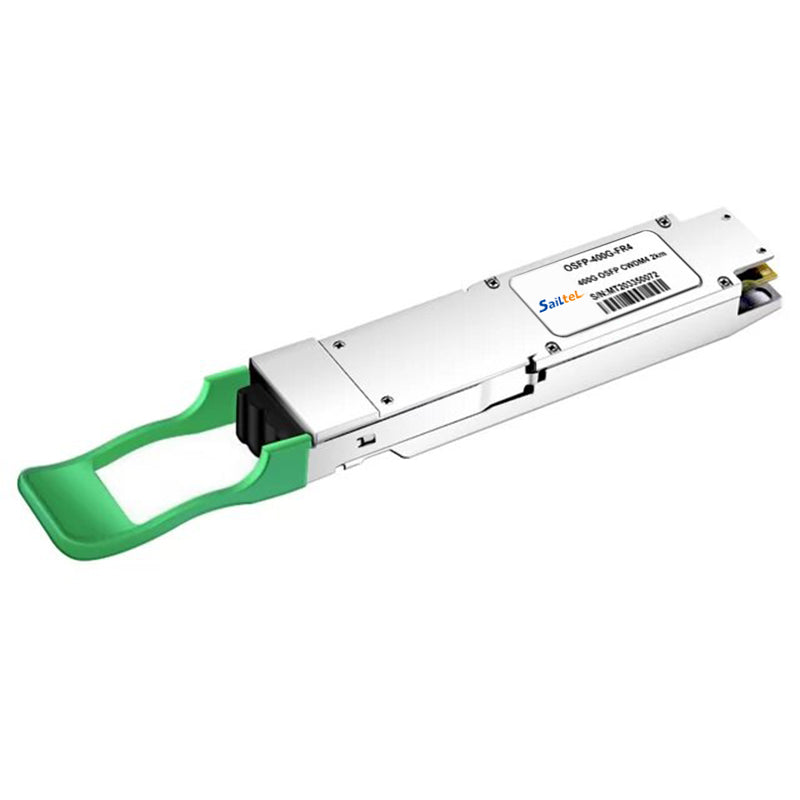

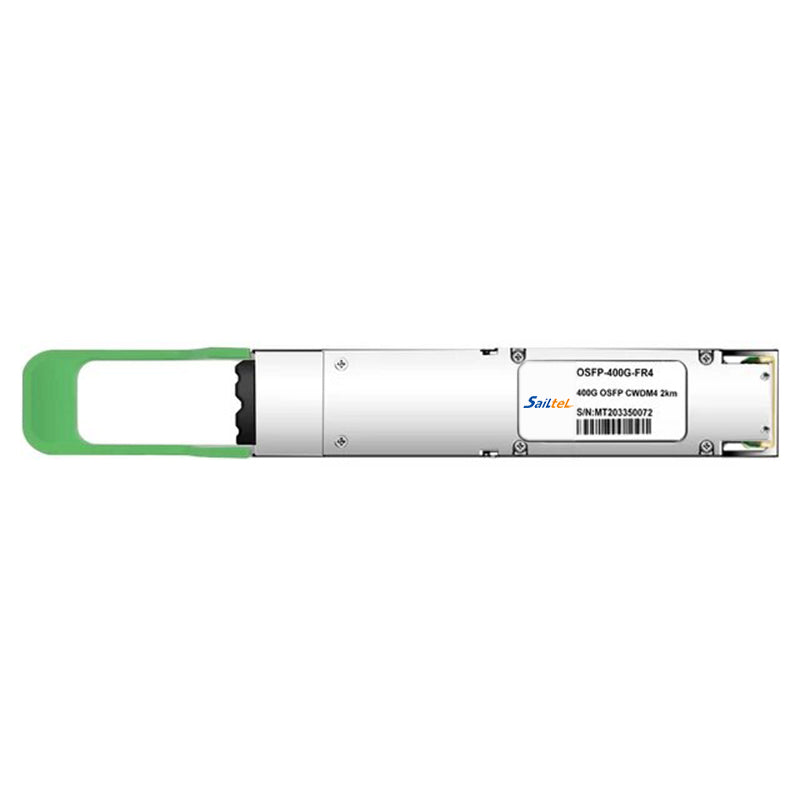

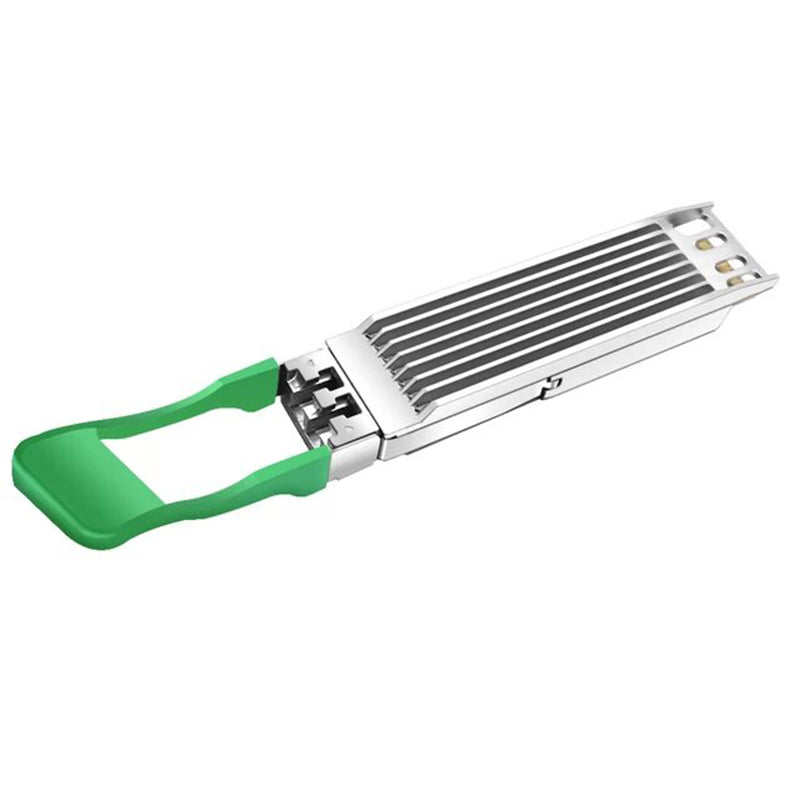

OSFP 400G FR4 Transceiver 400G FR4 OSFP PAM4 CWDM4 2km LC SMF FEC

1 Description

The OSFP 400G FR4 Transceiver is a 400G transceiver module that supports 4-level pulse amplitude modulation (PAM4) for data transmission over multimode fiber (MMF) optical links. It provides a high-density and low-power solution for data center and high-performance computing networks. The module is compliant with the OSFP MSA and IEEE 802.3bs 400GBASE-FR specifications, ensuring interoperability with a wide range of networking equipment. The compact form factor of the OSFP 400G FR4 Transceiver allows for efficient use of space in network equipment.

2 Product Features

• OSFP MSA compliant
• 4 CWDM lanes MUX/DEMUX design
• 100G Lambda MSA 400G-FR4 Specification compliant
• Up to 2km transmission on single mode fiber (SMF) with FEC
• Operating case temperature: 0 to 70oC
• 125Gb/s electrical interface (400GAUI-8)
• Data Rate 106.25Gbps (PAM4) per channel.
• Maximum power consumption 12W

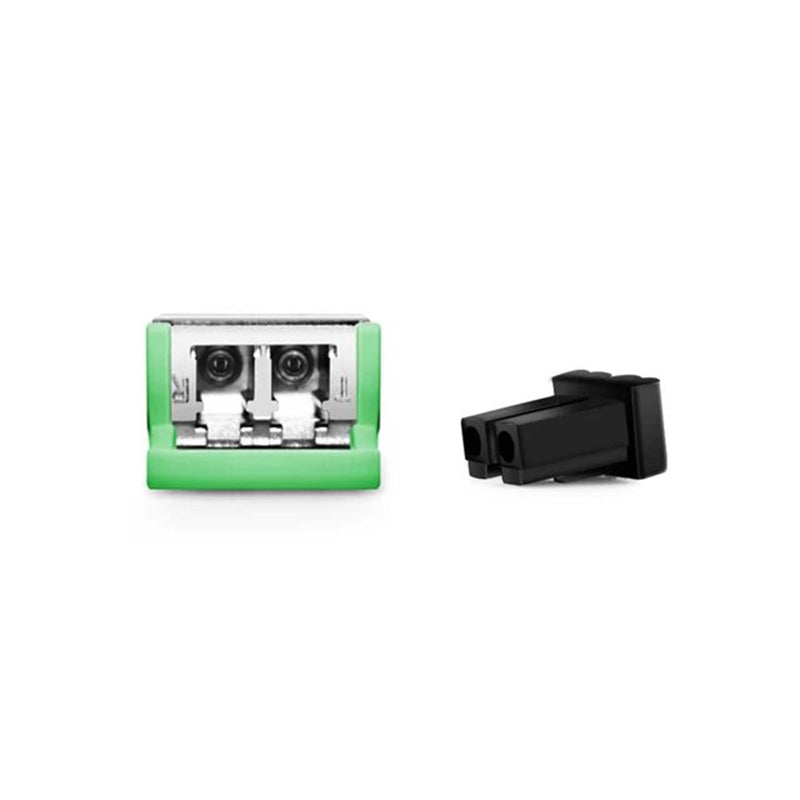

• Duplex LC connector
• RoHS compliant

3 Application Scenario

• 400G Ethernet
• Data Center Interconnect
• Infiniband Interconnects
• Enterprise Networking
