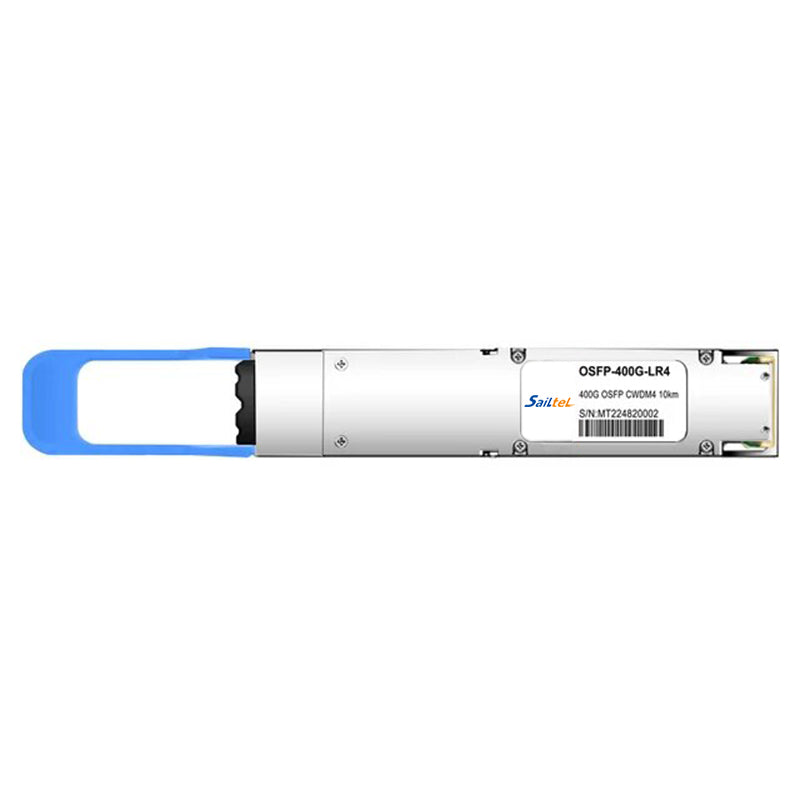

OSFP 400G LR4 Transceiver 400G LR4 OSFP PAM4 CWDM4 LC 10km SMF

1 Description

The OSFP 400G LR4 Transceiver is a 400Gb/s Quad Small Form Factor Pluggable-double density (QSFP-DD) optical module designed for up to 10Km reach over SMF optical communication applications. Module converts 8 channels of 50Gb/s (PAM4) electrical input data to 4 channels of parallel optical signals, each capable of 100Gb/s operation for an aggregate data rate of 400Gb/s. It uses a built-in CWDM mux/demux and duplex LC connectors to aggregate 4 channels of 100G capacity each, using 1271 to 1331nm CWDM lasers.

Unit can reach up to 10Km distances on G.652 types of SMF and requires only 2 strands of SMF terminated with LC optical connectors.

The transceiver has been tested and found compatible on 400G QSFP-DD ready Ethernet switches from Arista, Cisco, Juniper, and Edge-Core. Transceiver operates into any 3rd party vendor equipment that follows the MSA open slot standard.

2 Product Features

• 400 Gigabit Ethernet (425 Gbit/s) Transceiver
• Aggregate data rate of 425 Gbit/s
• Optical Interface: To be Compliant to 53.125 GBd PAM4 x 4 CWDM wavelength 400GBASE-LR4
• Electrical Interface: Compliant to 26.5625 GBd PAM4 x 8 lane 400GAUI-8
• Reach: Up to 6 km (IEEE)/10km (MSA) over duplex single mode fiber
• Form Factor: Compliant to OSFP MSA hardware specification
• Optical Transmitter: CWDM EA-DFB
• Optical Receiver: PIN photodetector
• Power consumption: 12 W max
• Operating case temperature: 0 to 70 deg C
• Size (W x L x H): 22.6 mm x 100.2 mm x 13.0 mm (not including pull tab)
• Hot Z-Pluggable to 60-pad OSFP electrical connector
• Latching mechanism: Pull tab
• Management Interface: Two-wire common management interface
• Environment: RoHS10 (2011/65/EU + 2015/863) compliant

3 Application Scenario

• 400G Ethernet
• Datacenter Enterprise Networking
• Infiniband Interconnects
