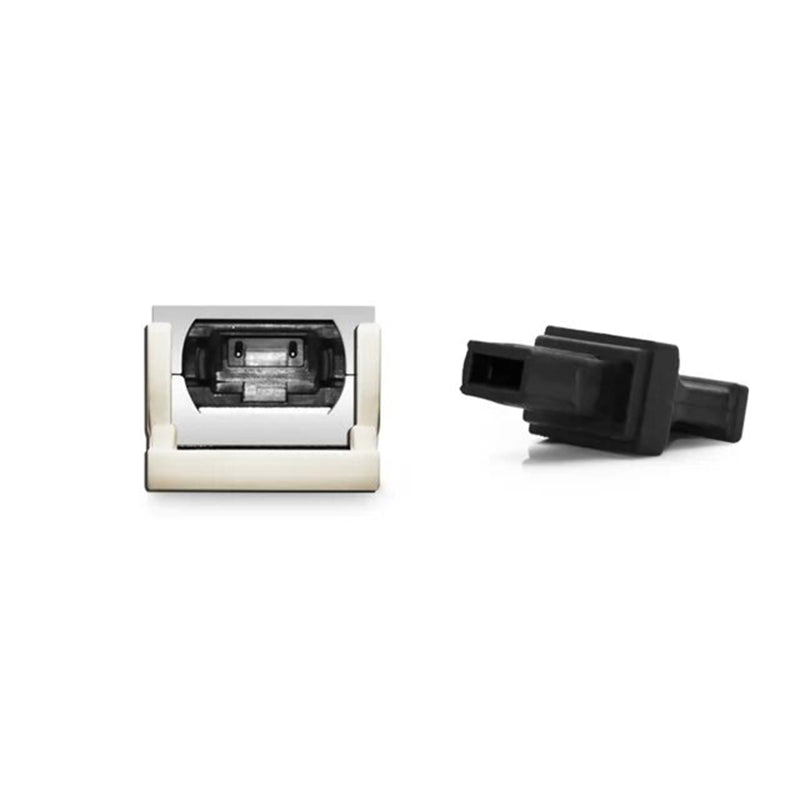

OSFP 400G SR8 Transceiver 400G SR8 OSFP PAM4 850nm MTP/MPO-16 100m OM3 MMF FEC

1 Description

The OSFP 400G SR8 Transceiver supports up to 100m link lengths over multimode fiber (MMF) with MTP/MPO-16 connector This transceiver is compliant with OSFP MSA, IEEE 802.3bs protocol and 400GAU-8 standards. The 400 Gigabit Ethernet signal is carried over eight wavelengths. Multiplexing and demultiplexing of the eight wavelengths are managed within the device. it is suitable for 400G Ethernet, Data Center and Cloud Networks.

2 Product Features

• OSFP MSA compliant
• 8 parallel lanes on 850nm center wavelength
• Compliant to IEEE 802.3bs Specification
• Up to 100m transmission on multi-mode fiber (MMF) OM3 with FEC
• Operating case temperature: 0 to 70°C
• 125Gb/s electrical interface (400GAUI-8)
• Data Rate 53.125Gbps (PAM4) per channel.
• Maximum power consumption 12W
• MPO-16 connector
• RoHS compliant

3 Application Scenario

• 400G Ethernet
• Data Center Interconnect
• Infiniband Interconnects
• Enterprise Networking
