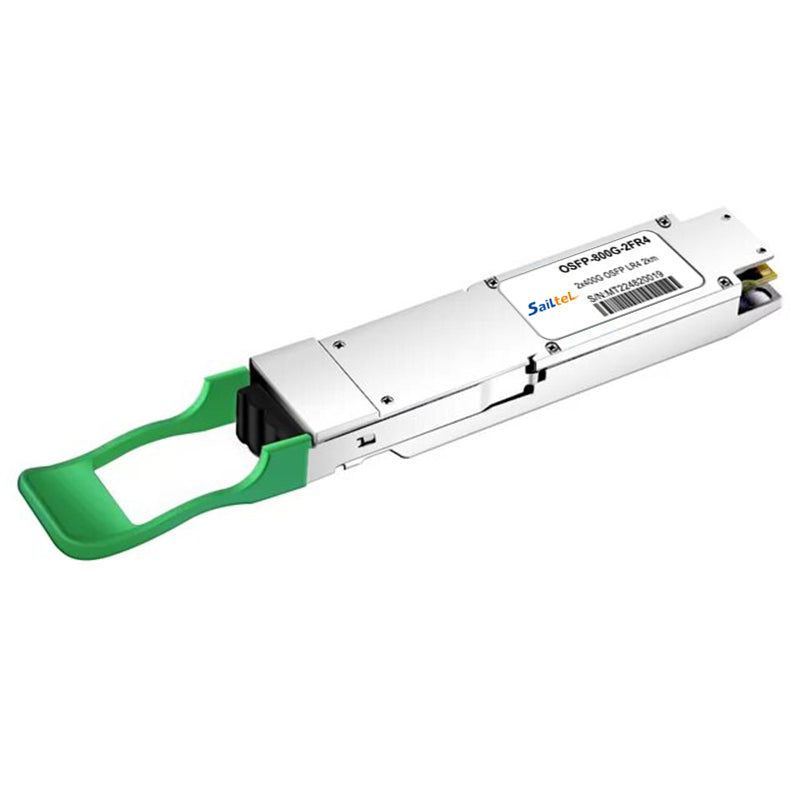

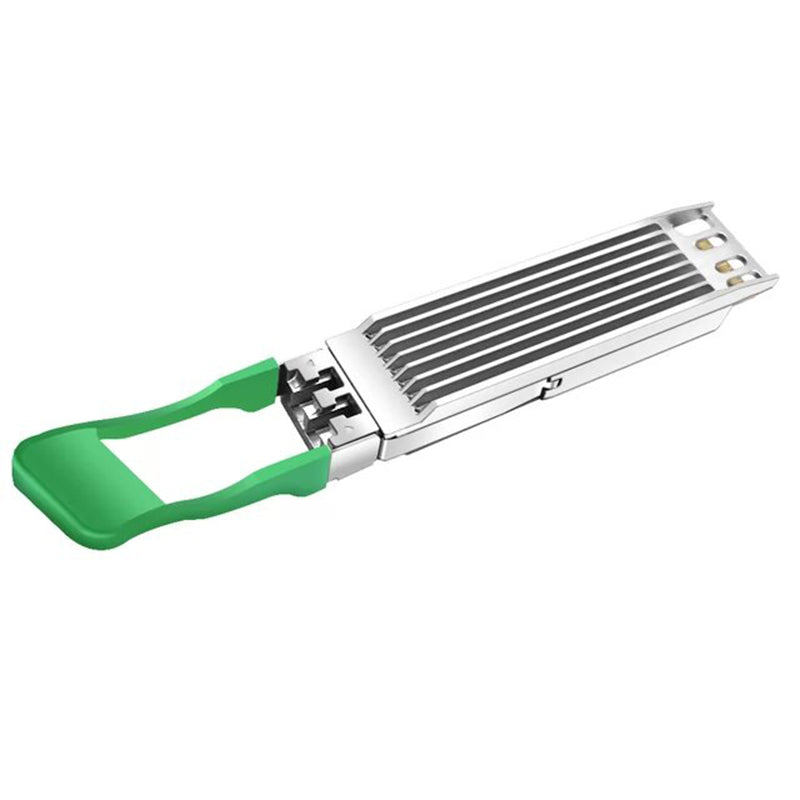

OSFP 800G 2FR4 Transceiver OSFP 2x400G FR4 PAM4 CWDM4 2km DOM Dual CS SMF

OSFP 800G 2FR4 Transceiver OSFP 2x400G FR4 PAM4 CWDM4 2km DOM Dual CS SMF

Regular price $6,728.57 USD
Regular price Sale price $6,728.57 USD
Sale Sold out

1 Description

OSFP 800G 2FR4 transceiver modules are designed for 800 Gigabit Ethernet links over 2km of single-mode fiber. The module has 8 independent channels of electrical input/output, each operating at up to 106.25Gbps. This transceiver consists of two transmitter/receiver units, with each operating on a set of 4 wavelengths on the ITU G.694.2 CWDM grid near 1310nm.

2 Product Features

  • 0 to 2km over SMF with KP4 FEC supported at the Host side

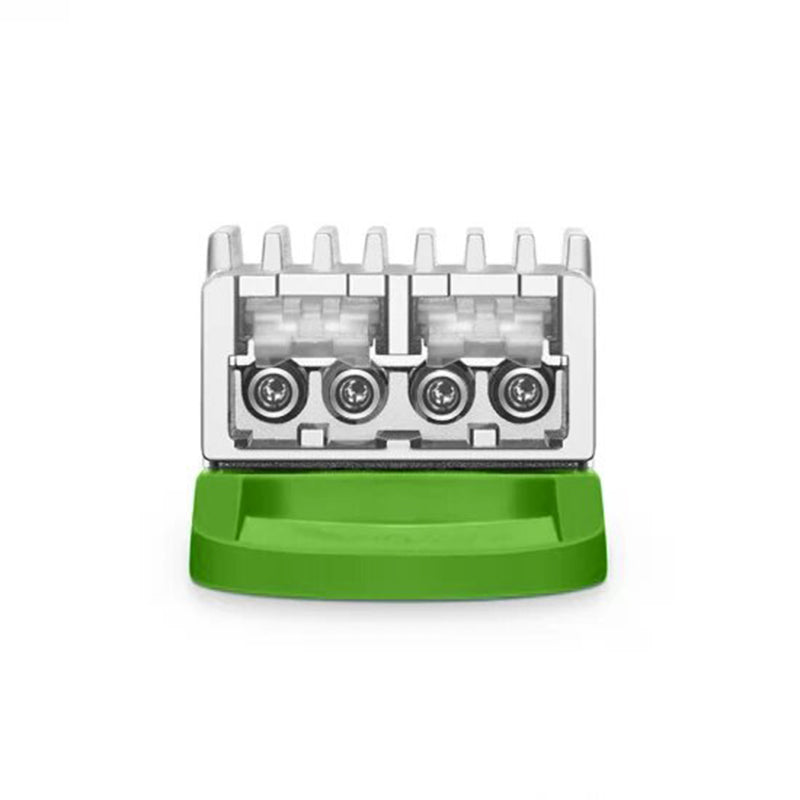

  • Dual SMF CS connector
  • Triple Rate operation: 106.25Gbps (PAM4), 53.125Gbps (PAM4), 26.5625Gbps (NRZ)
  • Cooled EML CWDM transmitter
  • PIN and TIA array on the receiver side
  • Power dissipation < 18W
  • Safety Certification: TUV/UL/FDA
  • RoHS Compliant
  • Application for 1x800G Ethernet, 2x400G Ethernet, 2x200G Ethernet

3 Application Scenario

  • 800G Ethernet
  • Data Center Interconnect
  • Infiniband Interconnects

4 Order Information

Part Number

Product Description

OSFP 800G 2FR4

OSFP 2x400G FR4 PAM4 CWDM4 2km DOM Dual CS SMF
