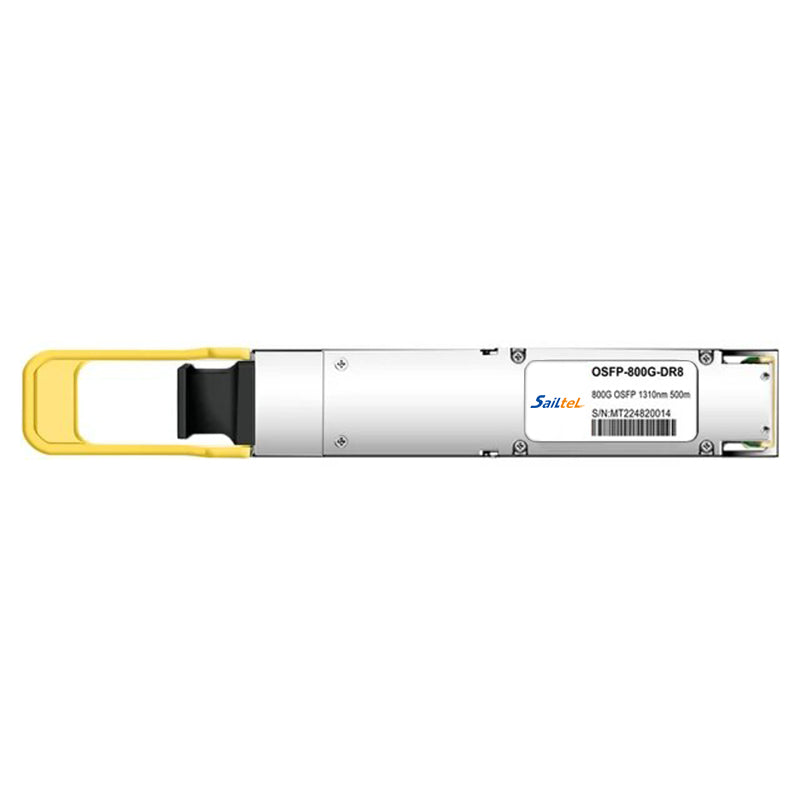

OSFP 800G DR8 Transceiver OSFP 8x100G DR PAM4 1310nm MPO-16 500m SMF DDM

1 Description

OSFP 8100G DR8 transceiver modules are designed for 800 Gigabit Ethernet links over 500m of single-mode fiber. The module has 8 independent channels of electrical input/output, each operating at up to 106.25Gbps. This transceiver consists of two transmitter/receiver units, with each operating on a set of wavelengths on the ITU G.694.2 CWDM grid at 1310nm. The module's transmitter path consists of a bidirectional PAM4 re-timer ASIC integrated with a silicon photonic laser and two 4-channel modulator drivers. On the receiver path, 8 photodiodes and two 4-channel TIA arrays are used, along with a PAM4 re-timer.

2 Product Features

• 0 to 500m over SMF with KP4 FEC supported at the Host side
• MPO16 connector
• Triple Rate operation: 106.25Gbps (PAM4), 53.125Gbps (PAM4), 26.5625Gbps (NRZ)
• Silicon Photonics 1310nm transmitter
• PIN and TIA array on the receiver side
• Power dissipation < 18W
• Case temperature range: 0°C to 70°C(commercial)
• Safety Certification: TUV/UL/FDA*1
• RoHS Compliant
• Application for 8x100G Ethernet, 2x400G Ethernet, 1x800G Ethernet, 2x200G Ethernet

3 Application Scenario

• 800G Ethernet
• Data Center Interconnect
• Infiniband Interconnects
