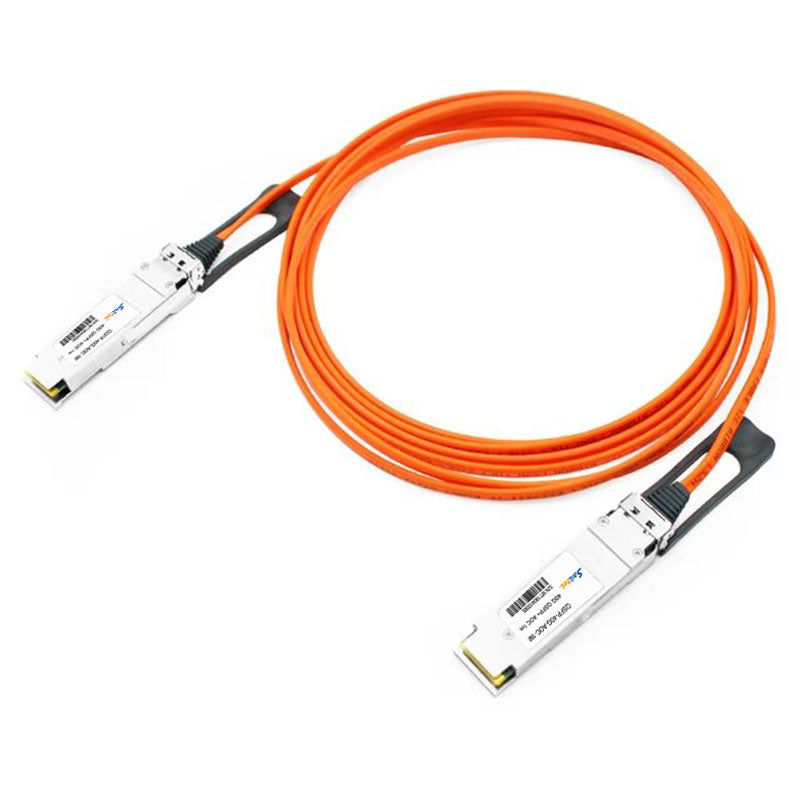

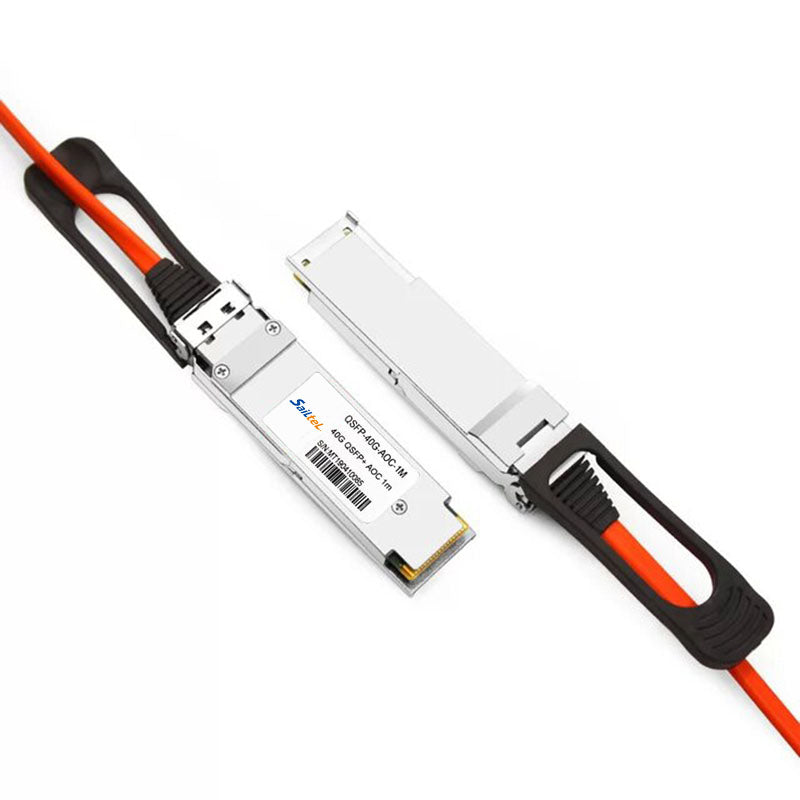

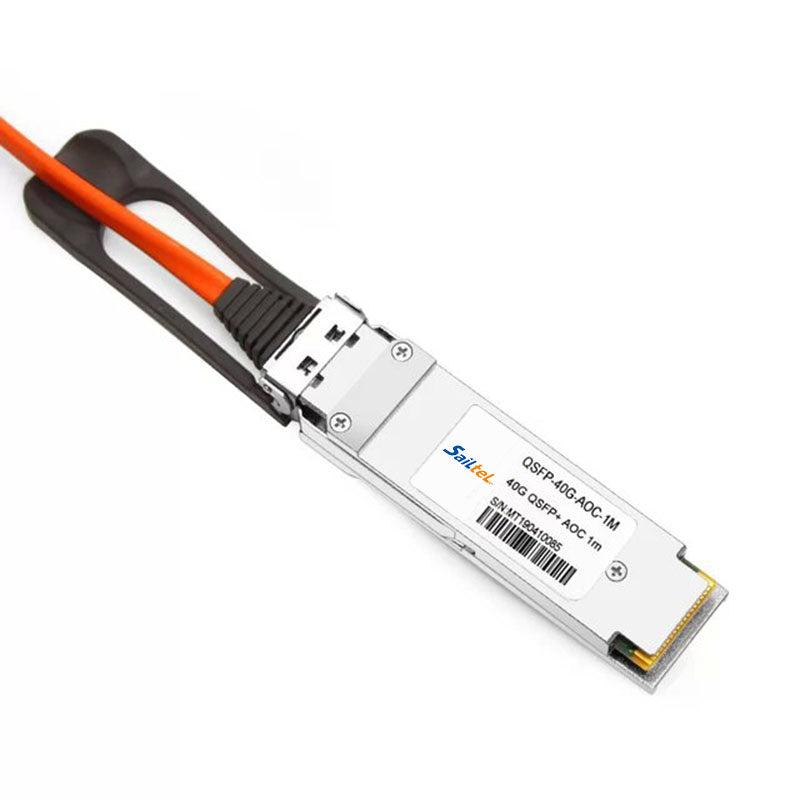

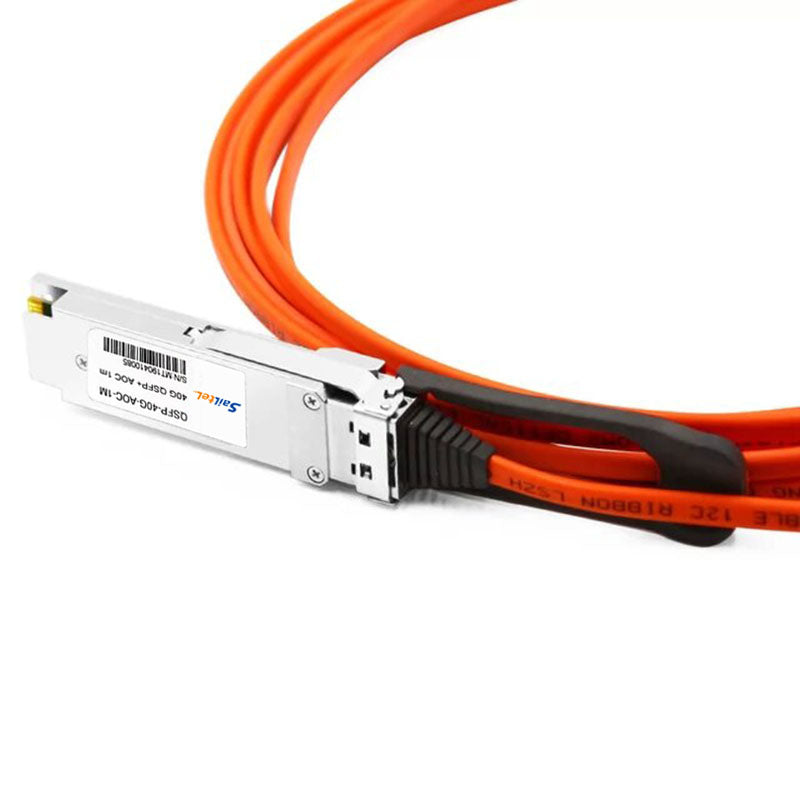

QSFP-40G-AOC-2M 40Gbps QSFP+ to QSFP+ Active Optical Cables
QSFP-40G-AOC-2M 40Gbps QSFP+ to QSFP+ Active Optical Cables
Regular price
$75.71 USD
Regular price
Sale price
$75.71 USD
Unit price
/
per
Couldn't load pickup availability
1 Description
The QSFP+ active optic cables are a high performance, low power consumption, long reachinterconnect solution supporting InfiniBand QDR/DDR/SDR,12.5G/10G/8G/4G/2G fiber channel ,PCIe and SAS. It is compliant with the QSFP MSA and IEEE P802.3ba. QSFP AOC is an assembly of 4 full-duplex lanes, where each lane iscapable of transmitting data at rates up to 11.3Gb/s, providing an aggregated rate of 45.2Gb/s.
QSFP+AOC is one kind of parallel transceiver which provides increased port density and total system cost savings.
2 Product Features
- Four-channel full-duplex active optical cable
- Transmission data rate up to 11.3Gbit/s per channel
- Reliable VCSEL array technology using multimode fiber
- Available in standard lengths of 3, 5, 10, 15, 20, 30, 50,100m
- Low power consumption <1.5W
- Operating case temperature 0°C to +70°C
- 3V power supply voltage
- RoHS 6 compliant
- Hot Pluggable QSFP form factor
3 Application Scenario
- Infiniband QDR/DDR/SDR
- Datacenter
- 40G Ethernet
- 4G/8G/10G Fibre Channel
4 Order Information
Part Number |
Product Description |
QSFP-4SFP-AOC2M |
40G QSFP+ to QSFP+ Active Optical Cable, 2m (7ft), 0ºC ~ +70ºC |
