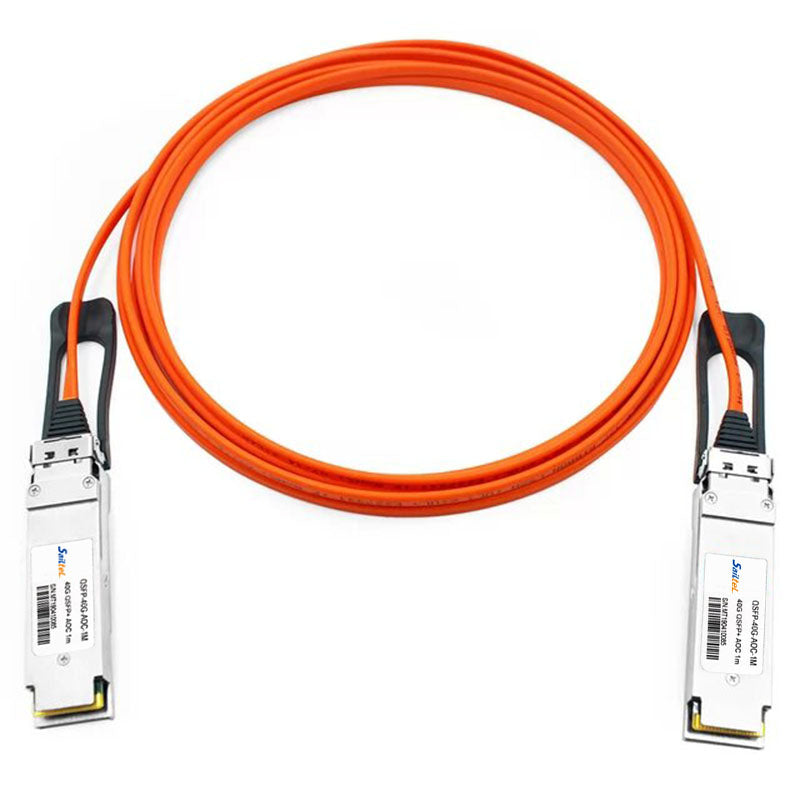

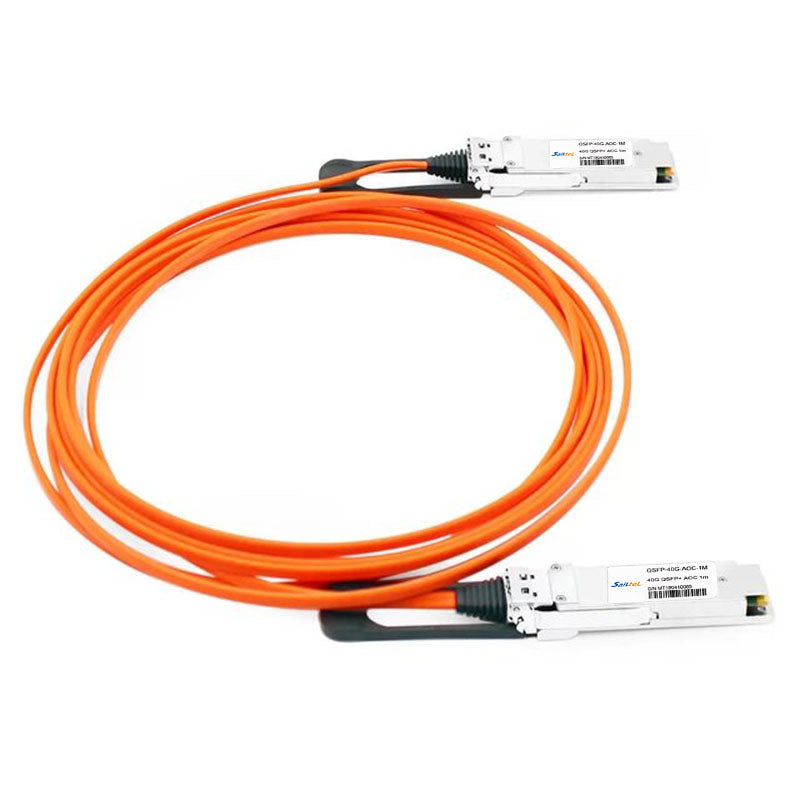

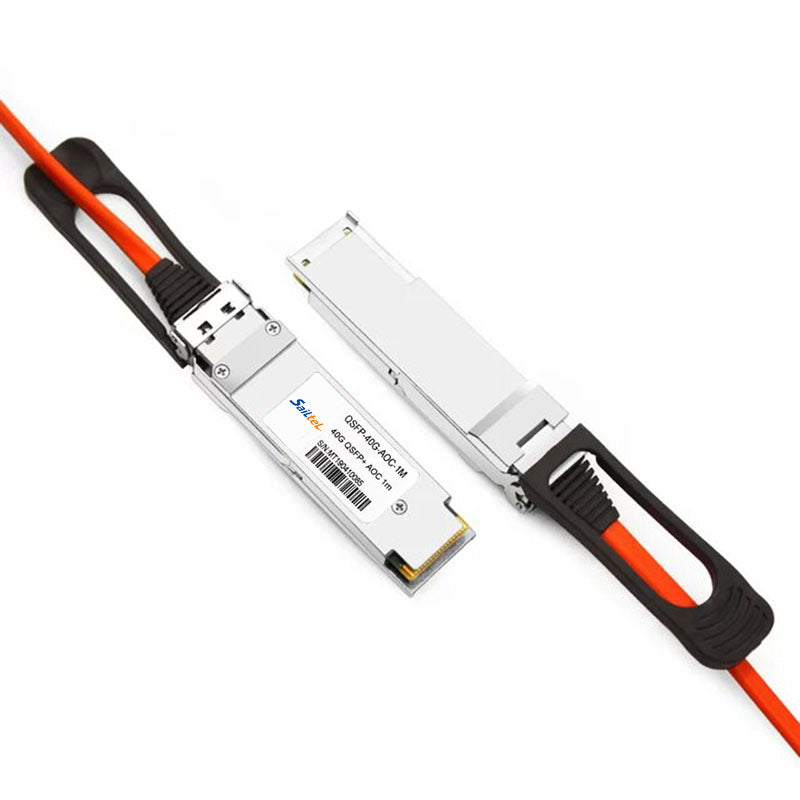

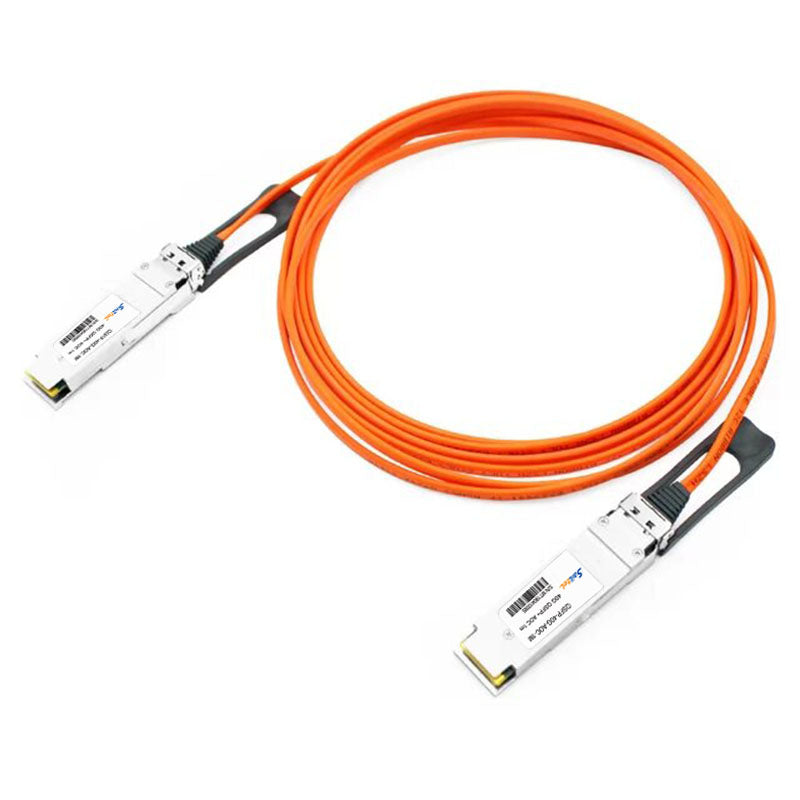

QSFP-40G-AOC-5M 40Gbps QSFP+ to QSFP+ Active Optical Cables

QSFP-40G-AOC-5M 40Gbps QSFP+ to QSFP+ Active Optical Cables

Regular price $80.00 USD
Regular price Sale price $80.00 USD
Sale Sold out

1 Description

The QSFP+ active optic cables are a high performance, low power consumption, long reachinterconnect solution supporting InfiniBand QDR/DDR/SDR,12.5G/10G/8G/4G/2G fiber channel ,PCIe and SAS. It is compliant with the QSFP MSA and IEEE P802.3ba. QSFP AOC is an assembly of 4 full-duplex lanes, where each lane iscapable of transmitting data at rates up to 11.3Gb/s, providing an aggregated rate of 45.2Gb/s.

QSFP+AOC is one kind of parallel transceiver which provides increased port density and total system cost savings.

2 Product Features

  • Four-channel full-duplex active optical cable
  • Transmission data rate up to 11.3Gbit/s per channel
  • Reliable VCSEL array technology using multimode fiber
  • Available in standard lengths of 3, 5, 10, 15, 20, 30, 50,100m
  • Low power consumption <1.5W
  • Operating case temperature 0°C to +70°C
  • 3V power supply voltage
  • RoHS 6 compliant
  • Hot Pluggable QSFP form factor

3 Application Scenario

  • Infiniband QDR/DDR/SDR
  • Datacenter
  • 40G Ethernet
  • 4G/8G/10G Fibre Channel

4 Order Information

Part Number

Product Description

QSFP-4SFP-AOC5M

40G QSFP+ to QSFP+ Active Optical Cable, 5m (16ft), 0ºC ~ +70ºC
