QSFP-8LC-AOC5M 40Gbps QSFP+ to 8x LC Active Optical Cables

1 Description

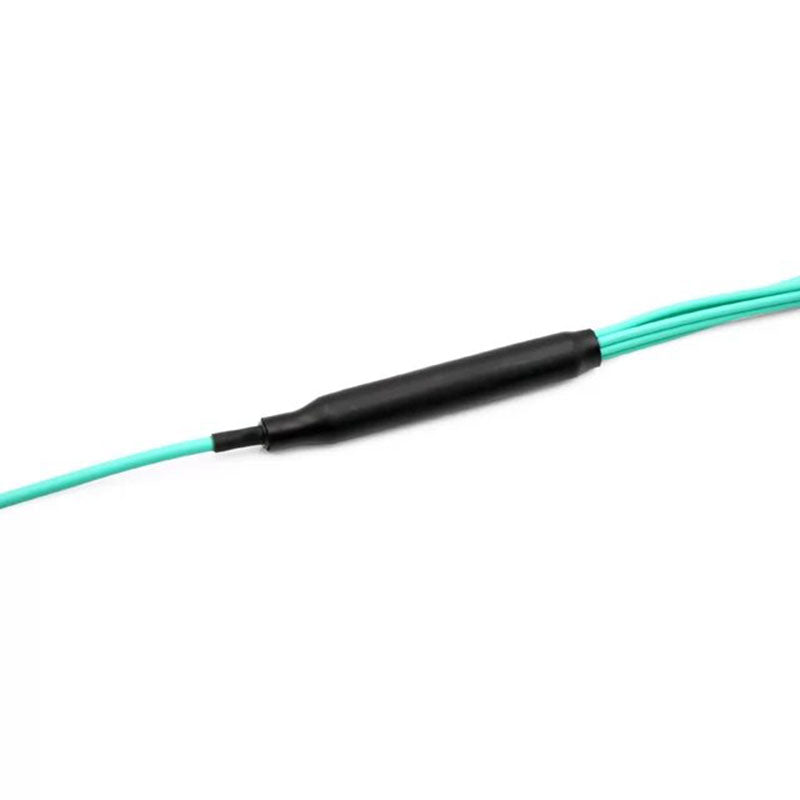

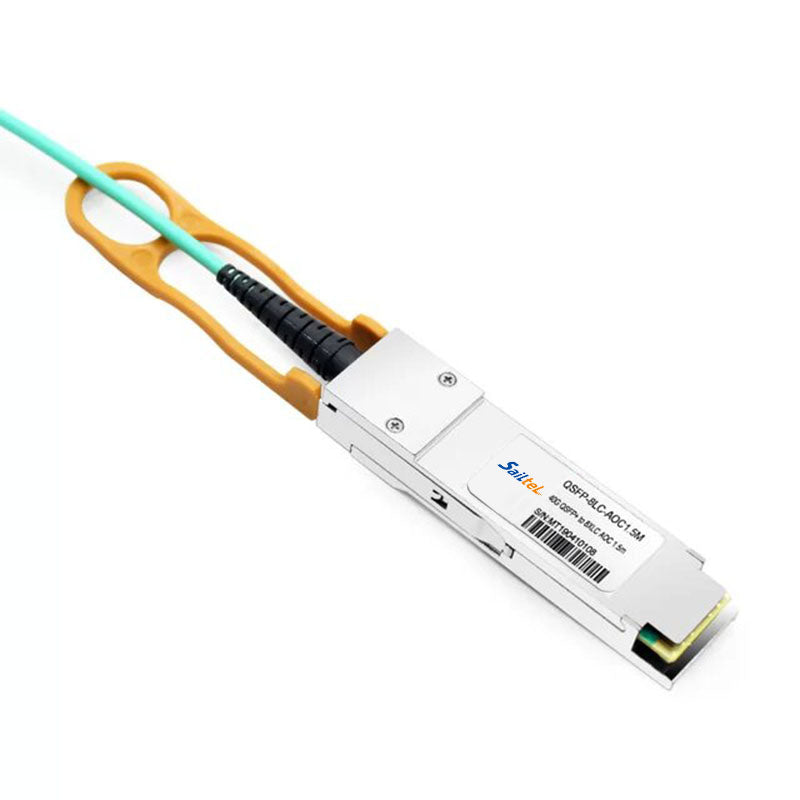

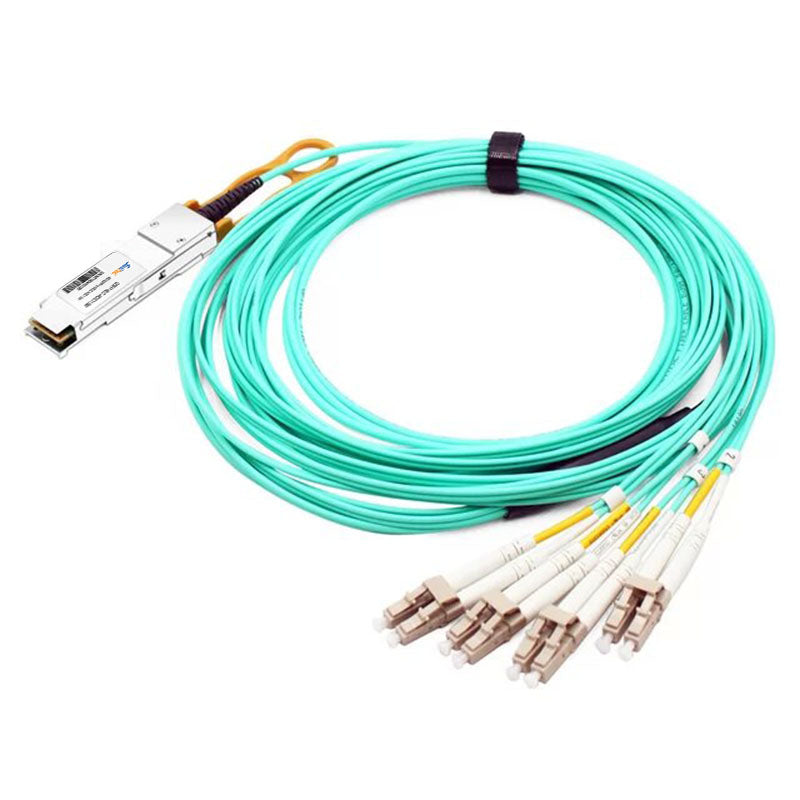

The QSFP-8LC-AOCxM is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ Active Optical Cable (AOC) to 4× double LC connect Cable break-out solution. This Breakout cable is intended for 40G to 4× 10G applications.

This AOC is a high performance cable for short-range multi-lane data communication and interconnect applications. It integrates four data lanes in each direction with 40 Gbps aggregate bandwidth. Each lane can operate at 10.3125 Gbps. These cables also support 4 x 10G InfiniBand QDR applications and are backwards compatible to the 4 × 5G IB DDR and 4 × 2.5G IB single IB SDR applications.

This product is leveraged from REALSEA QSFP+ to QSFP+ Active Optical Cable product and SFP+ Active Optical Cable product. Where applicable, consult these respective datasheets

This AOC incorporates REALSEA' proven integrated circuit and VCSEL technology to provide reliable long life, high performance, and consistent service.

2 Product Features

• Compliant to the 40GBASE-SR4 and XLPPI
• Specification per IEEE 802.3ba-2010 and supporting
• 40G-IB-QDR / 20G-IB-DDR / 10G-IB-SDR applications
• Compliant to the industry standard SFF-8436
• Power Level 1: Max Power < 1.5 W
• Operate at 10.3125 Gbps per channel with 64b/66b encoded data for 40GbE application and at 10 Gbps with 8b/10b compatible encoded data for 40G-IB-QDR application

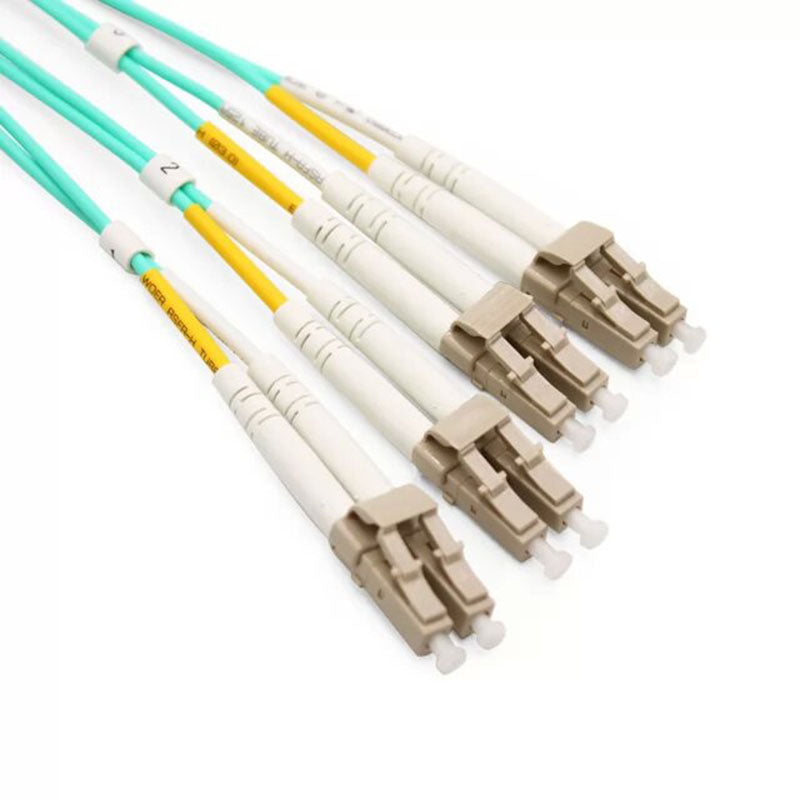

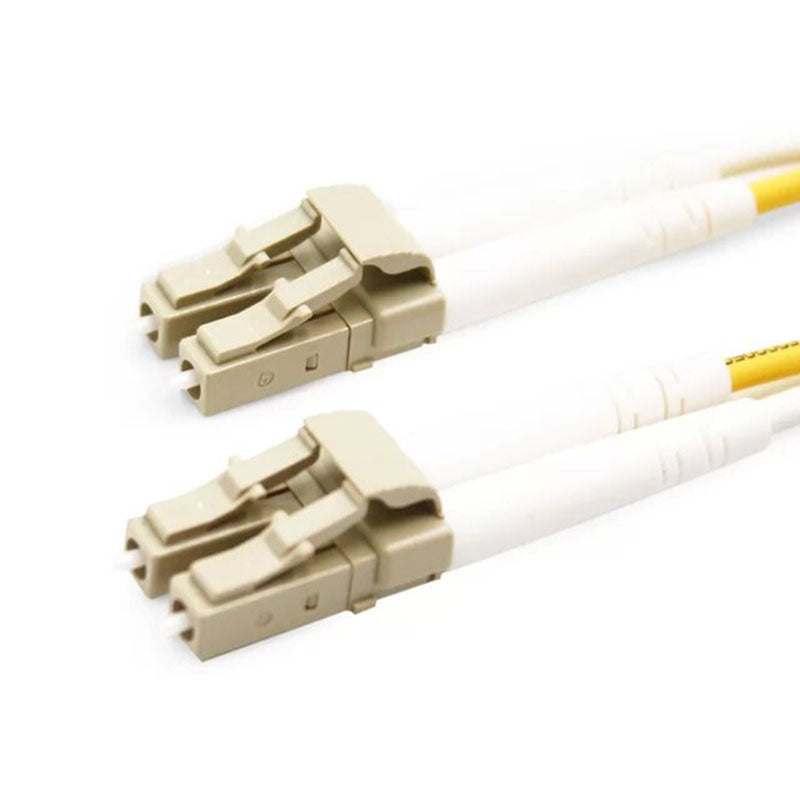

• Each 4× Double LC Connect end: with double LC Single Mode connect, or double LC Muti-mode connect
• 0 to 70 C degree case temperature operating range
• Proven High Reliability 850 nm technology: VCSEL transmitter and PIN receiver
• Hot pluggable for ease of servicing and installation
• Two Wire Serial interface
• Utilizes optical fiber for high density and thin, lightweight cable management

3 Application Scenario

• 40GbE and 10GbE break-out applications for Datacom switch and router connections
• 40G to 4×10G density applications for Datacom and Proprietary protocol applications
• Data center
