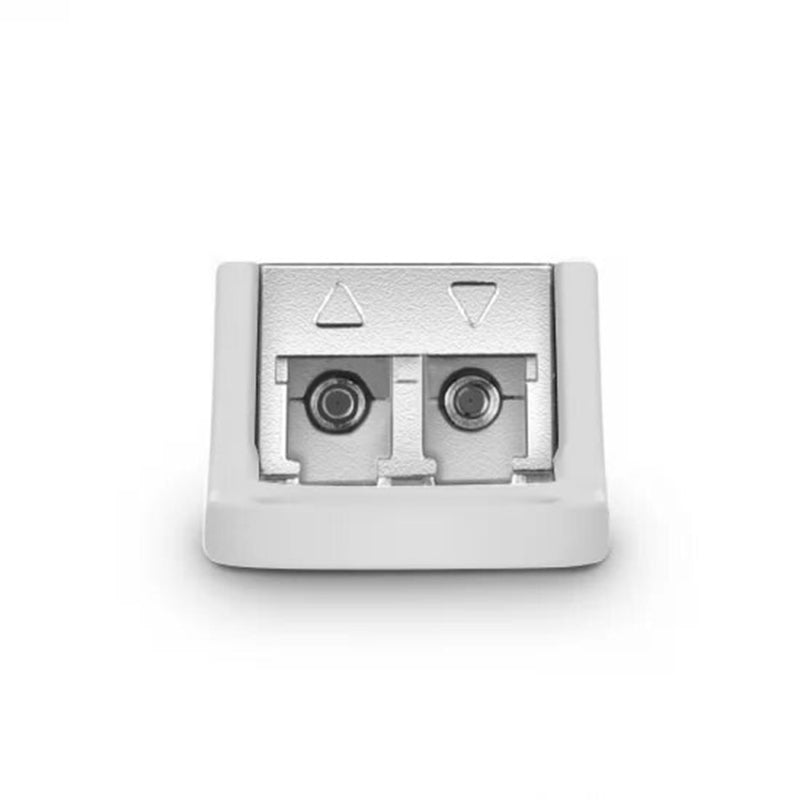

QSFP DD 400G DCO ZR+ Transceiver 400G Coherent QSFP DD DCO C-band Tunable

1 Description

The QSFP DD 400G DCO ZR+ Transceiver coherent module is capable of transmitting 400 Gbps over 120 km with excellent OSNR and power consumption in OIF 400ZR implementation protocol and QSFP-DD MSA-compliant designs. Utilizing the latest in-house Sipho Coherent Optical Assemblies (COSA) and nano-ITLA, the module provides excellent price/performance for a variety of applications ranging from data center interconnect to router-router connectivity and access networking needs.

2 Product Features

• Supports Line Side FEC mode: CFEC
• Duplex LC connector
• Full C-band 50GHz ITU-T transmitter
• 3V power supply voltage
• RoHS compliant
• QSFP-DD MSA Compliant
• Used in metro carriers, access, and Cloud/DCI applications
• Supports Line Side Modulation Format: DP-QPSK
• Supports 400 Gbps data center and other interconnects at up to 120 km

3 Application Scenario

• Metro/regional ROADM networks
• Data Center Interconnect

4 Order Information
