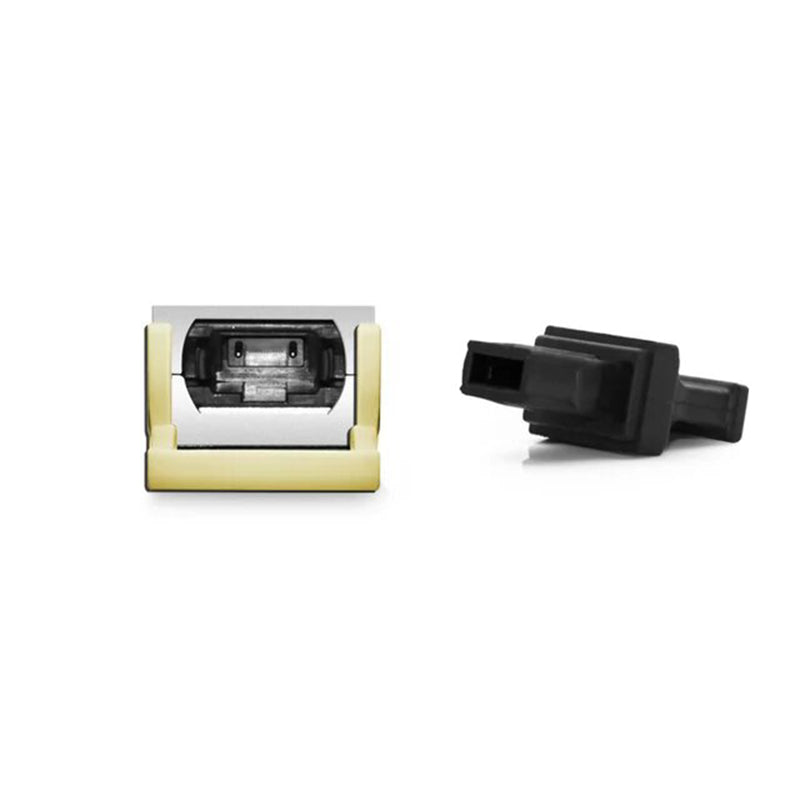

QSFP DD 400G DR4 Transceiver 400G QSFP DD DR4 PAM4 1310nm 500m MTP/MPO SMF FEC

1 Description

400G QSFP-DD DR4 optical module uses a standard MPO-12 connector to transmit up to 500m over single-mode fiber. The Transceiver is compliant with QSFP-DD MSA, IEEE 802.3bs protocol, and 400GAUI-8 standard. 400 Gigabit Ethernet signals are transmitted over four parallel channels on one wavelength per channel. It can also be connected to 100G DR optical modules. It adopts a 1310nm EML transmitter type and PAM4 pulse amplitude modulation mode. It is used in data centers, high-performance computing networks, enterprise core, and distribution layers, and service provider applications.

2 Product Features

• QSFP-DD MSA compliant
• Parallel 4 Optical Lanes
• IEEE 802.3bs 400GBASE-DR4 Specification compliant
• 125Gb/s electrical interface (400GAUI-8)
• Data Rate 106.25Gbps (PAM4) per channel
• Maximum power consumption 12W
• Supports Data Center Interconnect, 400G Ethernet, Infiniband interconnects, Enterprise networking
• RoHS compliant

3 Application Scenario

• 400G Ethernet
• Data Center Interconnect
• Infiniband Interconnects

4 Order Information
