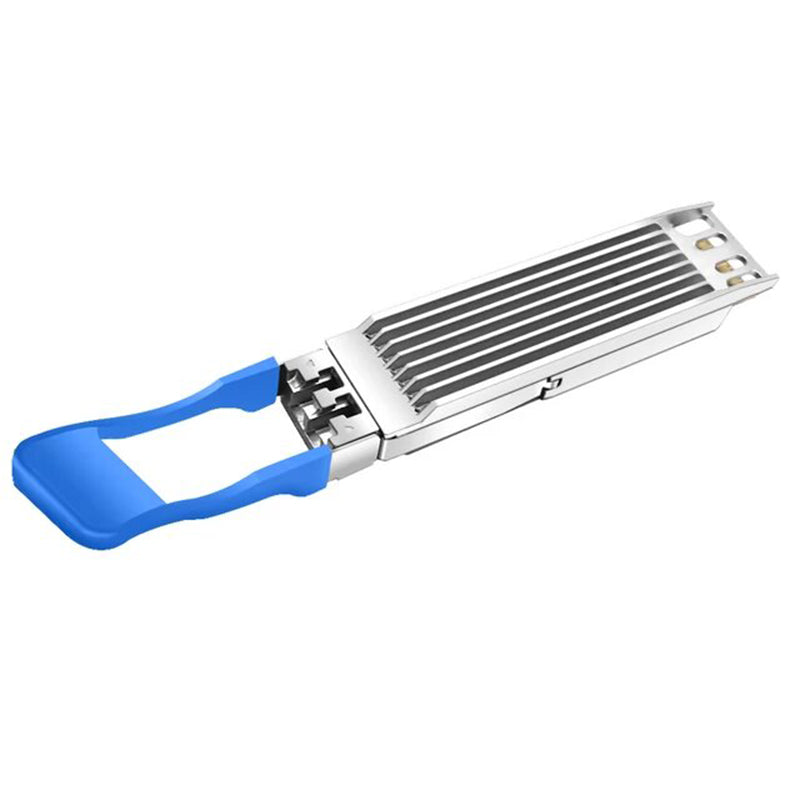

QSFP DD 400G LR4 Transceiver 400G QSFP DD LR4 PAM4 CWDM4 10km LC SMF FEC
QSFP DD 400G LR4 Transceiver 400G QSFP DD LR4 PAM4 CWDM4 10km LC SMF FEC
Regular price
$1,581.43 USD
Regular price
Sale price
$1,581.43 USD
Unit price
/
per
1 Description
The 400G QSFP-DD LR4 modules support link lengths up to 10 km over a pair of standard G.652 single-mode fiber (SMF) with duplex LC connectors. It complies with the IEEE 802.3bs protocol and 400GAUI-8/CEI-56G-VSR-PAM4 standard. It uses built-in CWDM mux/demux and duplex LC connectors to aggregate 4 channels with 100G capacity per channel, using 1271 to 1331nm CWDM lasers.
2 Product Features
- QSFP-DD MSA and RoHS compliant
- 4 CWDM lanes MUX/DEMUX design
- 100G Lambda MSA 400G-LR4 Specification compliant
- 8x 53.125Gb/s electrical interface (400GAUI-8)
- Data Rate 106.25Gbps (PAM4) per channel.
- Maximum power consumption 12W
- Supports Data Center Interconnect, 400G Ethernet, Infiniband interconnects, Enterprise networking
3 Application Scenario
- 400G Ethernet
- Data Center Interconnect
- Infiniband Interconnects
4 Order Information
Part Number |
Product Description |
QSFP DD 400G LR4 |
400G QSFP DD LR4 PAM4 CWDM4 10km LC SMF FEC |
