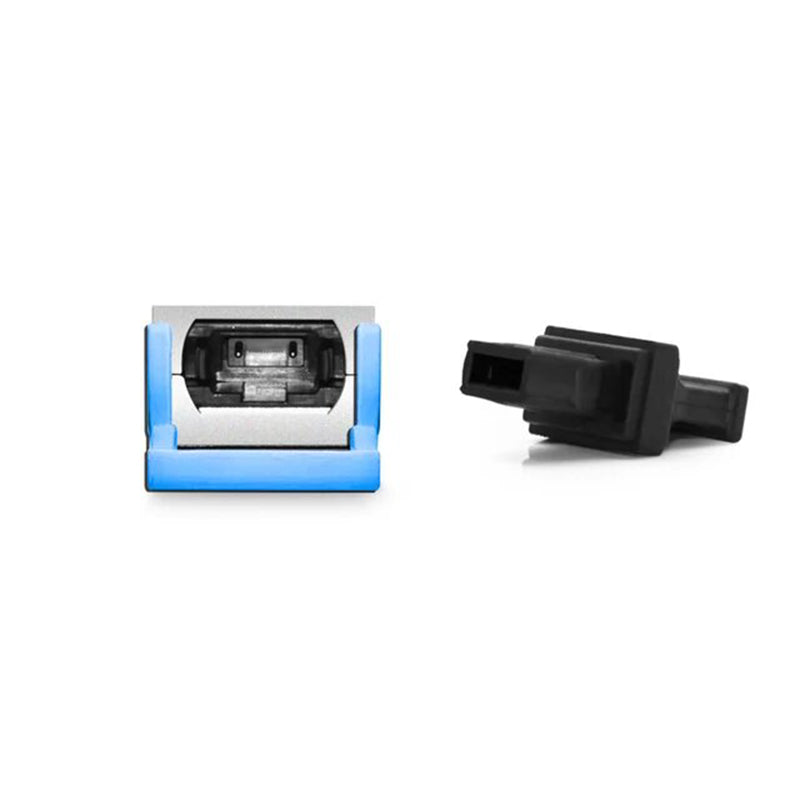

QSFP DD 400G XDR4 Transceiver 400G QSFP DD XDR4 PAM4 1310nm 2km MTP/MPO-12 SMF FEC

1 Description

400G QSFP-DD XDR4 modules support parallel SMF link lengths of up to 2 km using MTP/MPO-12 connectors. It complies with IEEE 802.3bs protocol and 400GAUI-8 standard. The 400 Gigabit Ethernet signal is carried over four parallel lanes, one wavelength per lane. It can be used as a 4x100G breakout of QSFP28-FR-100G.

2 Product Features

• QSFP-DD MSA and RoHS compliant
• Parallel 4 Optical Lanes
• 100G Lambda MSA 100G-FR Specification compliant
• Up to 2km transmission on single mode fiber (SMF) with FEC
• 8x 53.125Gb/s electrical interface (400GAUI-8)
• Data Rate 106.25Gbps (PAM4) per channel.
• Maximum power consumption 12W
• Supports Data Center Interconnect, 400G Ethernet, Infiniband interconnects, Enterprise networking

3 Application Scenario

• 400G Ethernet
• Data Center Interconnect
• Infiniband Interconnects

4 Order Information
