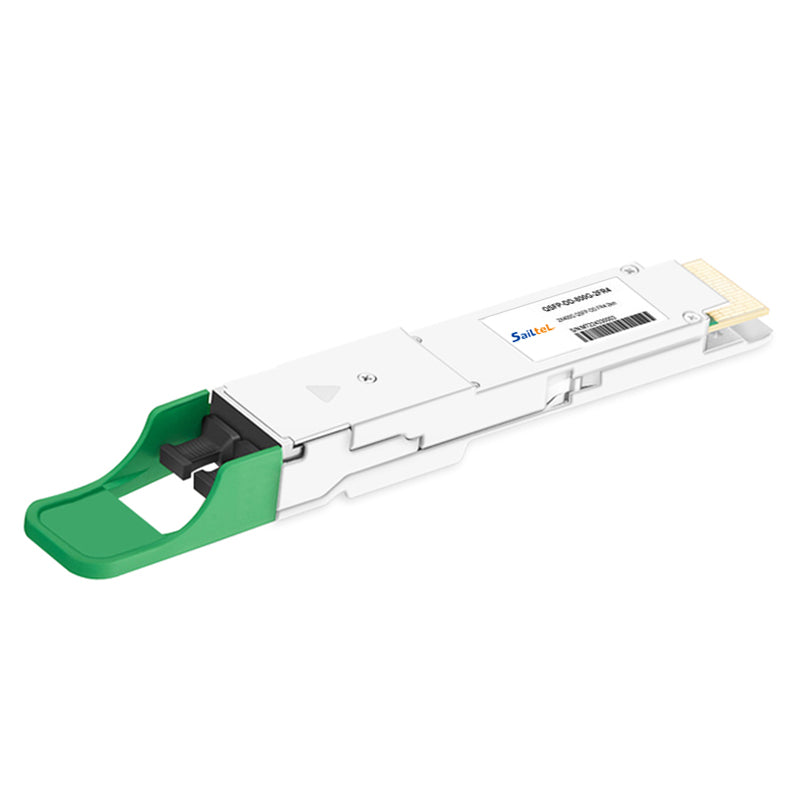

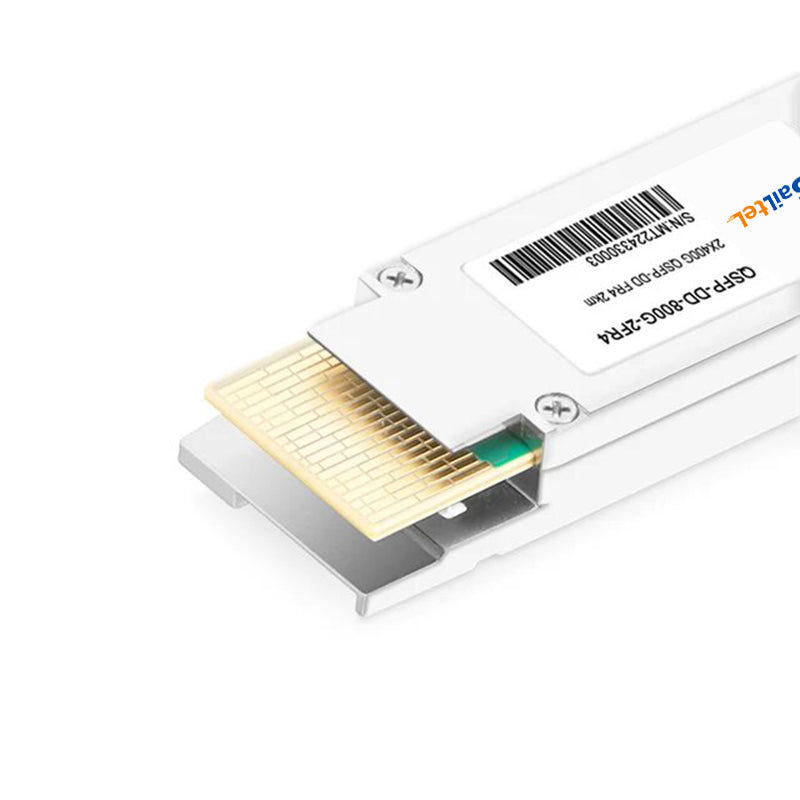

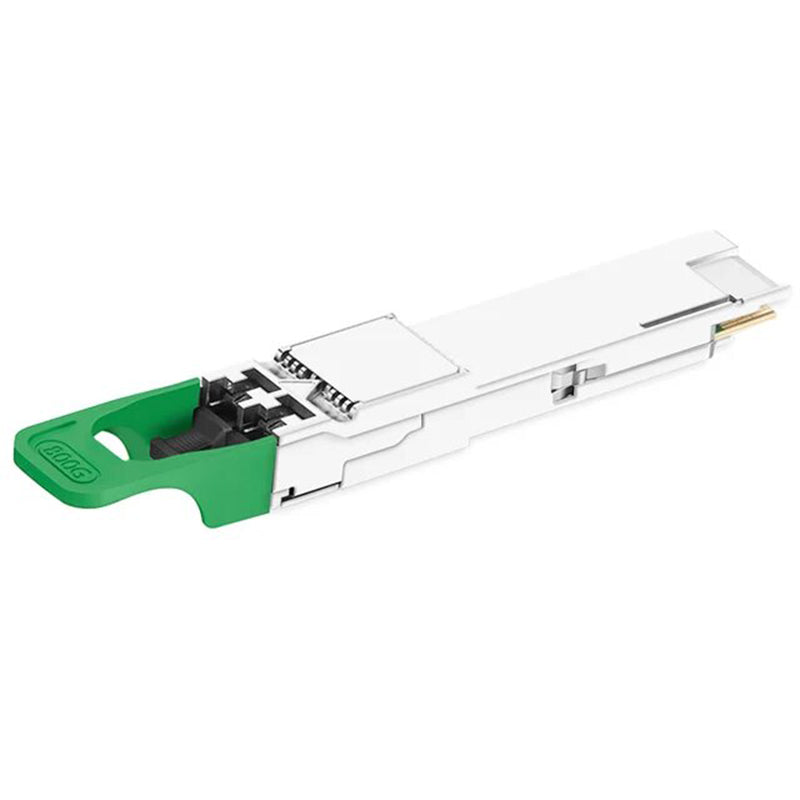

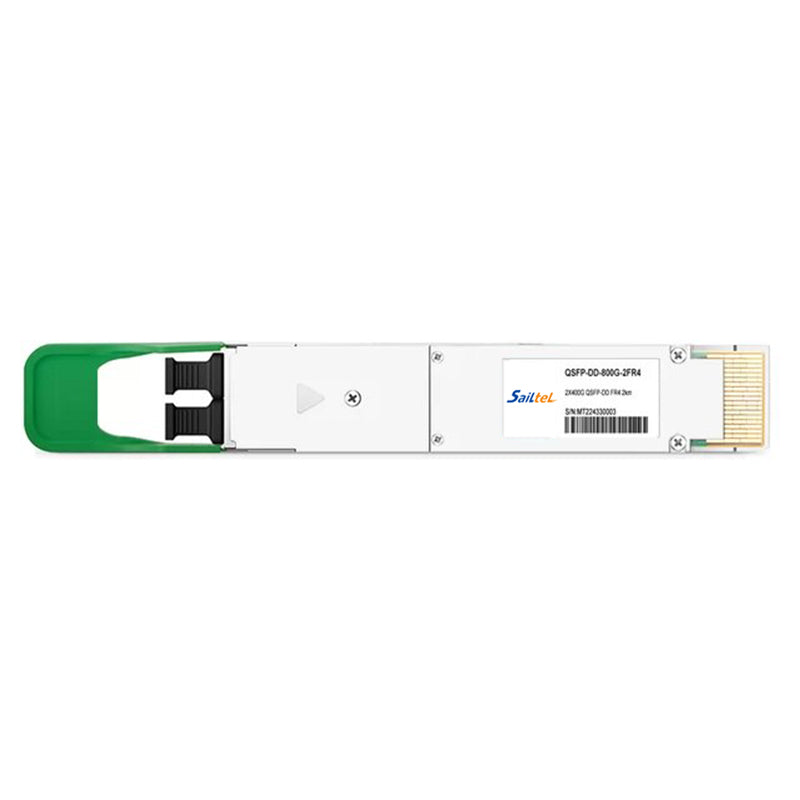

QSFP DD 800G 2FR4 Transceiver 800G QSFP DD 2FR4 PAM4 1310nm 2km DOM Dual CS SMF

1 Description

QSFP DD 800G 2FR4 Transceiver supports up to 2km link lengths over single-mode fiber (SMF) via dual CS connectors. This transceiver is compliant with IEE802.3ck, IEEE 802.3cu and QSFP-DD MSA standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. It is suitable for 800G Ethernet, Breakout 2x 400G FR4, Data Center and Cloud Networks.

2 Product Features

• Built-in Broadcom 7nm DSP Chip, Max. Power Consumption 18W
• Self-developed 53G EML Laser Chip to Ensure Production
• Parameter Tests for Superior Performance, Quality, and Reliability
• High-speed Connectivity Compliant to IEEE 802.3ck and IEEE 802.3cu-2021
• Hot Pluggable QSFP-DD MSA Compliant
• Support 2x400G Breakout for Higher Port Density
• 25G PAM4 Retimed 2x400GAUI-4 Electrical Interface
• Digital Optical Monitoring Capability for Strong Diagnostic Capabilities

3 Application Scenario

• 800G Ethernet
• Data Center Interconnect
• Infiniband Interconnects

4 Order Information
