800G-DR8 QSFP-DD transceiver module can be used for 800 Gigabit Ethernet connections over 500m of single-mode fiber. The module includes eight parallel channels with a central wavelength of 1310nm and the operating rate of each channel is 106.25Gbps.
2 Product Features
Supports 850Gbps
Single 3.3V Power Supply
Up to 500m over SMF with KP4 FEC supported at the Host side
MTP/MPO-16 connector
25Gbps (PAM4) electrical interface
PIN and TIA array on the receiver side
Power dissipation < 16W
Safety Certification: TUV/UL/FDA*1
RoHS Compliant
Application for 8x100G Ethernet, 2x400G Ethernet, 1x800G Ethernet
3 Application Scenario
800G Ethernet
Data Center Interconnect
Infiniband Interconnects
4 Order Information
Part Number
Product Description

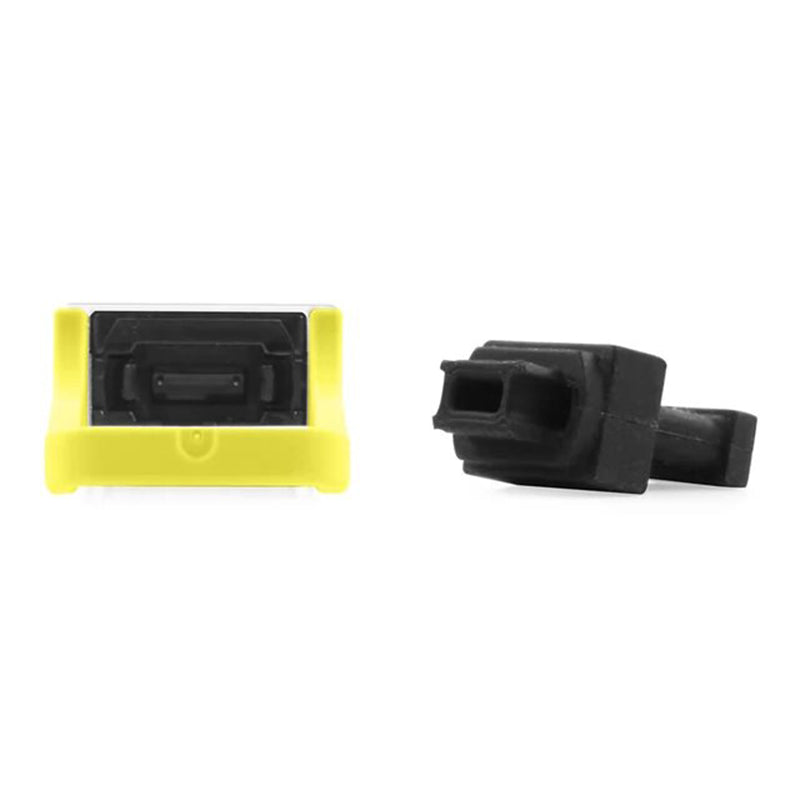

QSFP DD 800G DR8
800G DR8 QSFP DD PAM4 1310nm 500m DOM MTP/MPO-16 SMF
