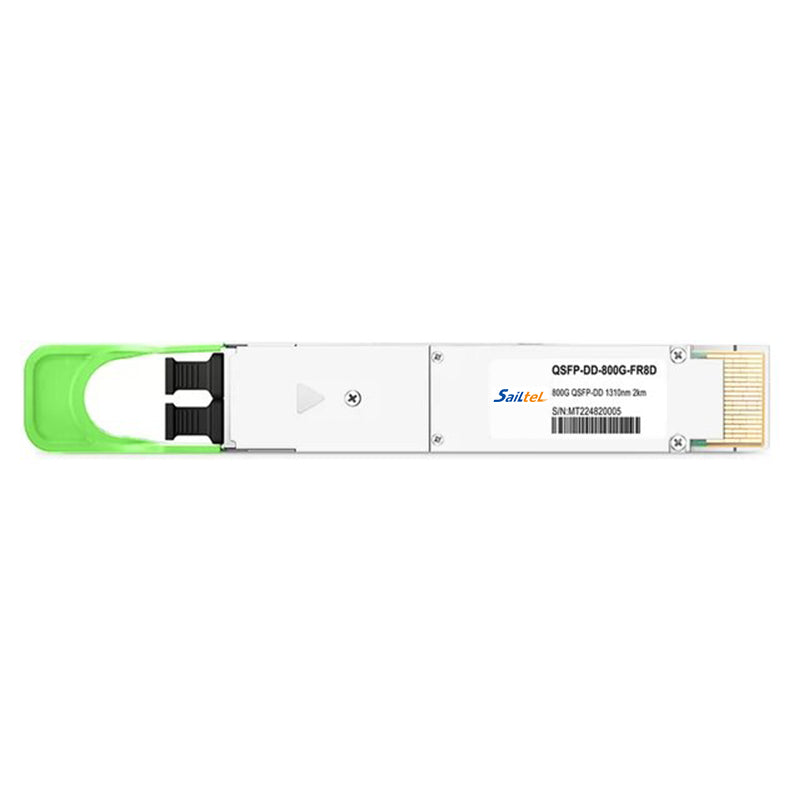

QSFP DD 800G FR8D Transceiver QSFP DD 8x100G FR/DR8+ PAM4 1310nm 2km DOM Dual MPO-12 SMF

1 Description

QSFP-DD 800G FR8D transceiver module is designed for 800 Gigabit Ethernet links over 2km of single-mode fiber. The module contains 8 parallel channels at a center wavelength of 1310nm, each operating at 106.25G. The electrical interface of the module complies with the 800GAUI-8 interface defined by IEEE 802.3ck and complies with QSFP-DD MSA.

2 Product Features

• Supports 850Gbps
• Single 3.3V Power Supply
• Up to 2km over SMF with KP4 FEC supported at the Host side
• Dual MPO-12 connector
• 25Gbps (PAM4) electrical interface
• PIN and TIA array on the receiver side
• Power dissipation < 18W
• Safety Certification: TUV/UL/FDA*1
• RoHS Compliant
• Application for 8x100G Ethernet, 2x400G Ethernet, 1x800G Ethernet

3 Application Scenario

• 800G Ethernet
• Data Center Interconnect
• Infiniband Interconnects

4 Order Information
