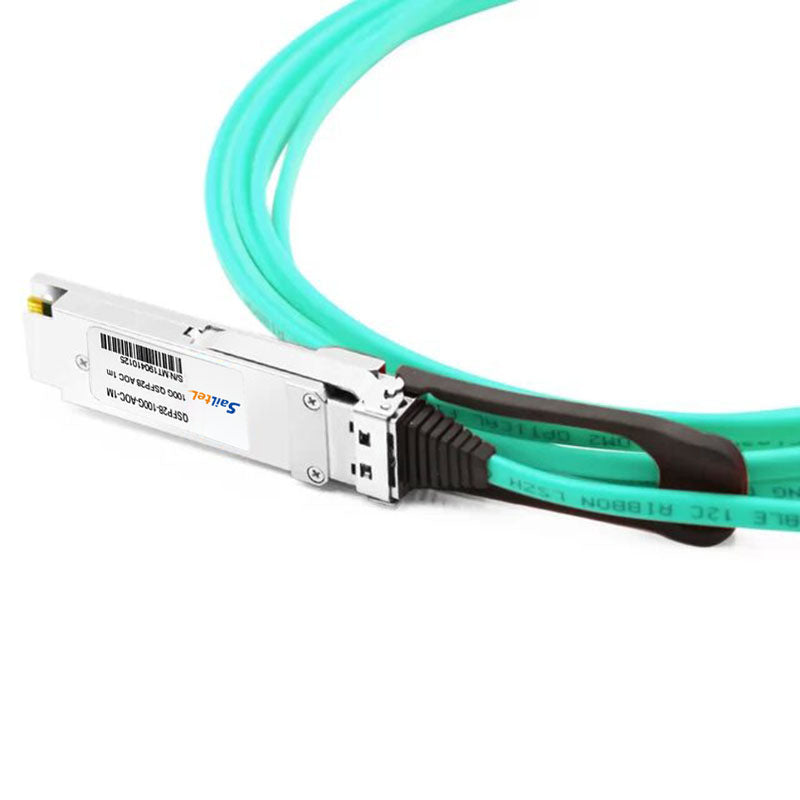

QSFP28-100G-AOC-3M 100G QSFP28 to QSFP28 Active Optical Cables

1 Description

This is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ AOC for 100 Gigabit Ethernet and Infiniband EDR Applications. This AOC is a high performance module for short-range multi-lane data communication and interconnect applications. It integrates four data lanes in each direction with 100 Gbps bandwidth. Each lane can operate at 25.78125 Gbps up to 70 m using OM3 fiber or 100 m using OM4 fiber. These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 38 contact edge type connector. The optical interface uses an 12 fiber MTP (MPO) connector. This module incorporates HTD proven circuit and VCSEL technology to provide reliable long life, high performance, and consistent service.

2 Product Features

• 4 channels full-duplex transceiver modules
• Supports 100Gbps total data rate
• Transmission data rate up to 28.05Gbps per channel
• 4 channels 850nm VCSEL array
• 4 channels PIN photo detector array
• Low power consumption <3.5W
• Hot Pluggable QSFP form factor
• Maximum link length of 70m on OM3 Multimode Fiber (MMF)and 100m on OM4 MMF
• Single MPO connector receptacle
• Built-in digital diagnostic functions
• Operating case temperature 0°C to +70°C
• 3V power supply voltage
• RoHS 6 compliant(lead free)

3 Application Scenario

• IEEE 802.3bm 100GBASE SR4
• Infiniband EDR
• Fibre Channel
• 40G/100G Ethernet

4 Order Information
