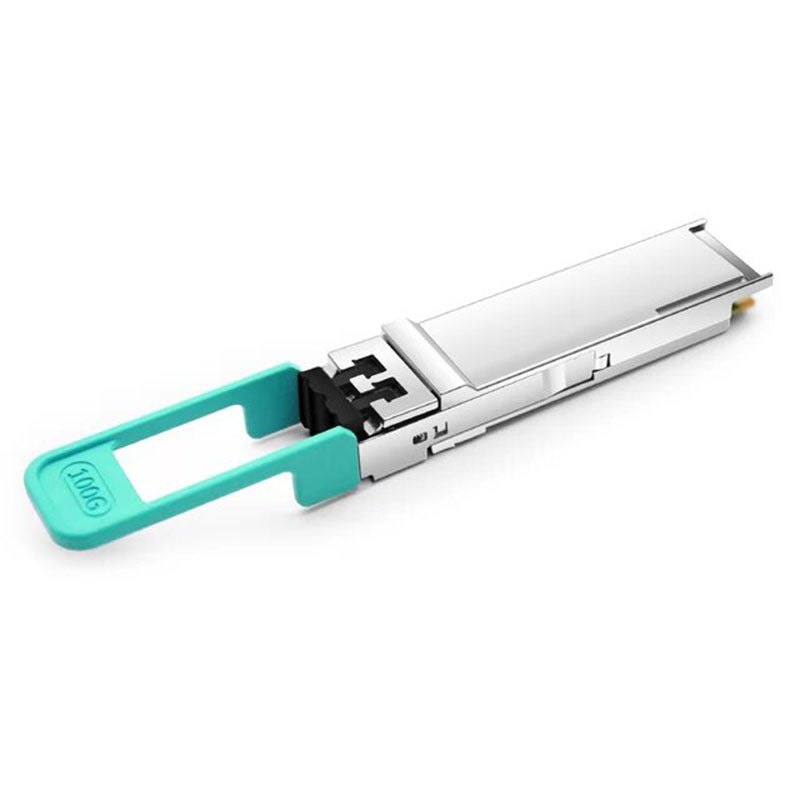

QSFP28-100G-LR1-C31 100Gbps CWDM QSFP28 Single Lambda LR Transceiver Single Mode, 1311nm, 10km Reach

QSFP28-100G-LR1-C31 100Gbps CWDM QSFP28 Single Lambda LR Transceiver Single Mode, 1311nm, 10km Reach

Regular price $1,142.86 USD
Regular price Sale price $1,142.86 USD
Sale Sold out

1 Description

Sailtel’s CWDM Single Lambda QSFP28 transceiver module is designed for use in 100 Gigabit Ethernet links over 10km single mode fiber. The module incorporates one channel optical signal, on 1271, 1291, 1311 or 1331nm center wavelength, operating at 50Gbaud data rate. The electrical interface of the module is compliant with the OIF CEI- 28G-VSR and compliant with QSFP28 MSA.

2 Product Features

  • Supports 100Gbps
  • 100G Lambda MSA 100G-LR Specification Compliant
  • Single 3.3V Power Supply
  • Power Dissipation < 4.5W
  • Up to 10km over SMF with FEC
  • QSFP28 MSA Compliant
  • SFF-8636 Rev 2.10a Compliant
  • 4x25G Electrical Interface

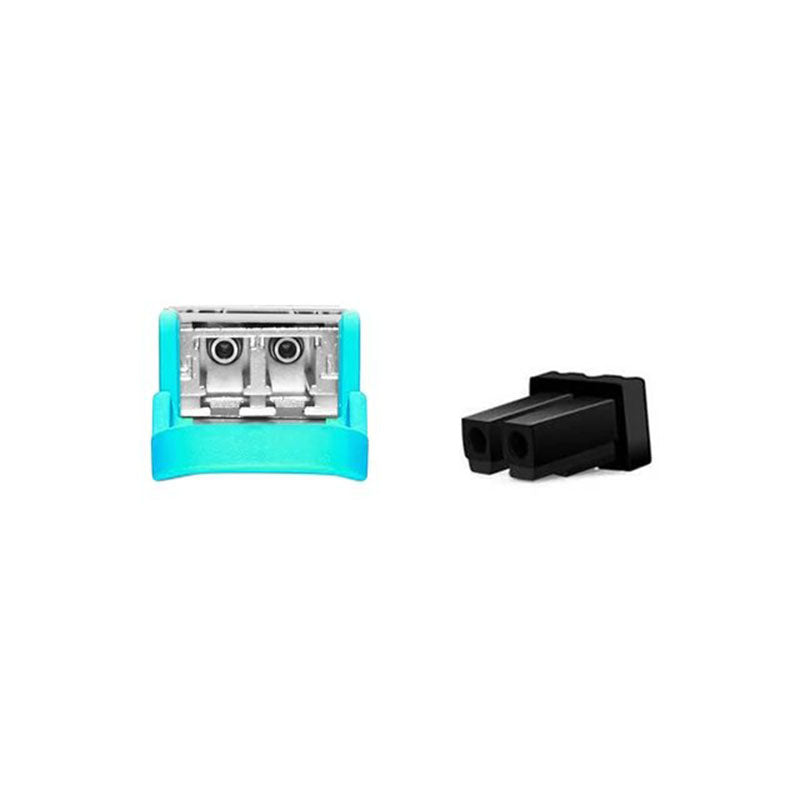

  • LC Duplex Connector
  • Commercial Case Temperature Range of 0°C to 70°C
  • I 2 C Interface with Integrated Digital Diagnostic Monitoring
  • Safety Certification: TUV/UL/FDA
  • RoHS Compliant

3 Application Scenario

  • Data Center Interconnect
  • 100G EthernetLocal Area Network (LAN)

4 Order Information

Part Number

Product Description

QSFP28-100G-LR1-C31

100Gbps QSFP28 LR Single Lambda, 1311nm, LC Connector, 10km, 0°C~+70°C, with DDM
