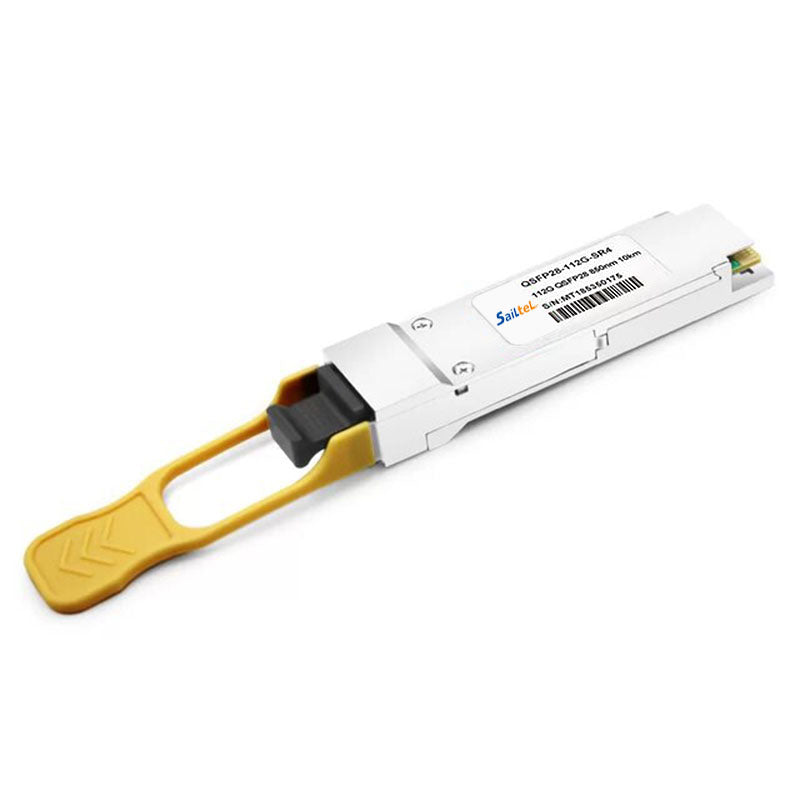

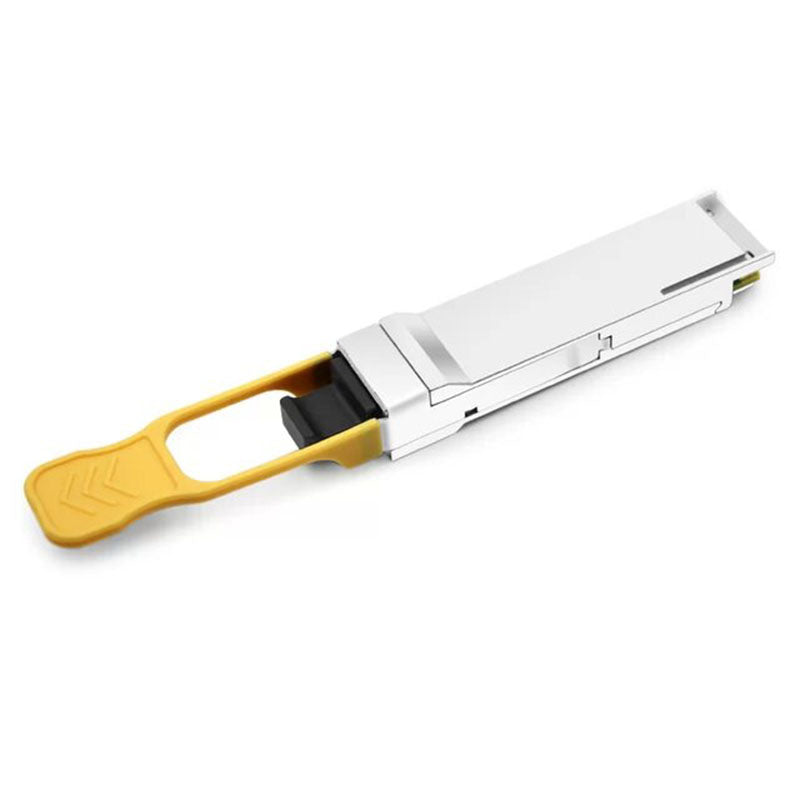

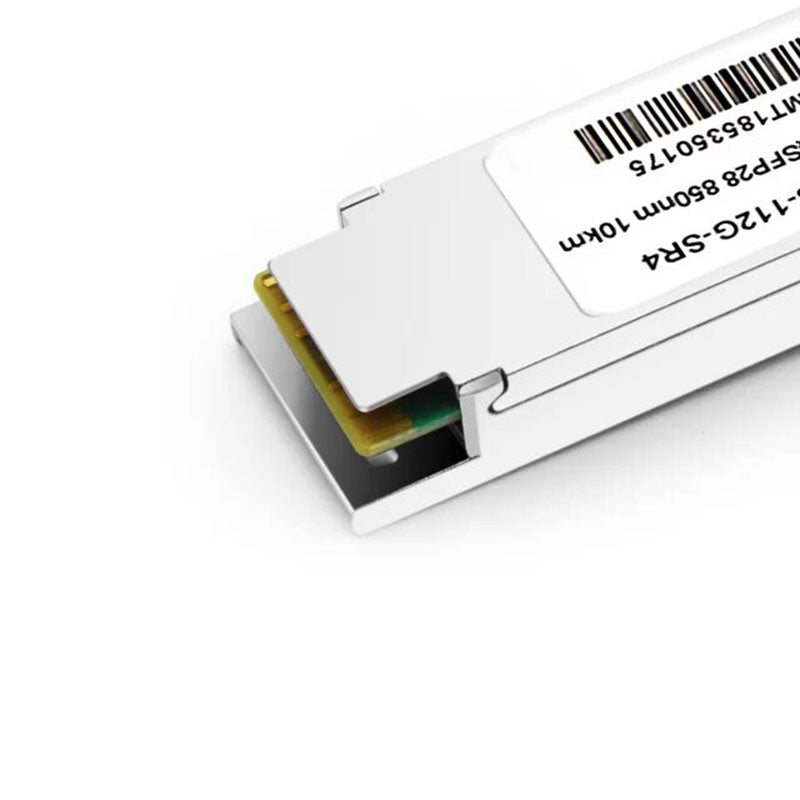

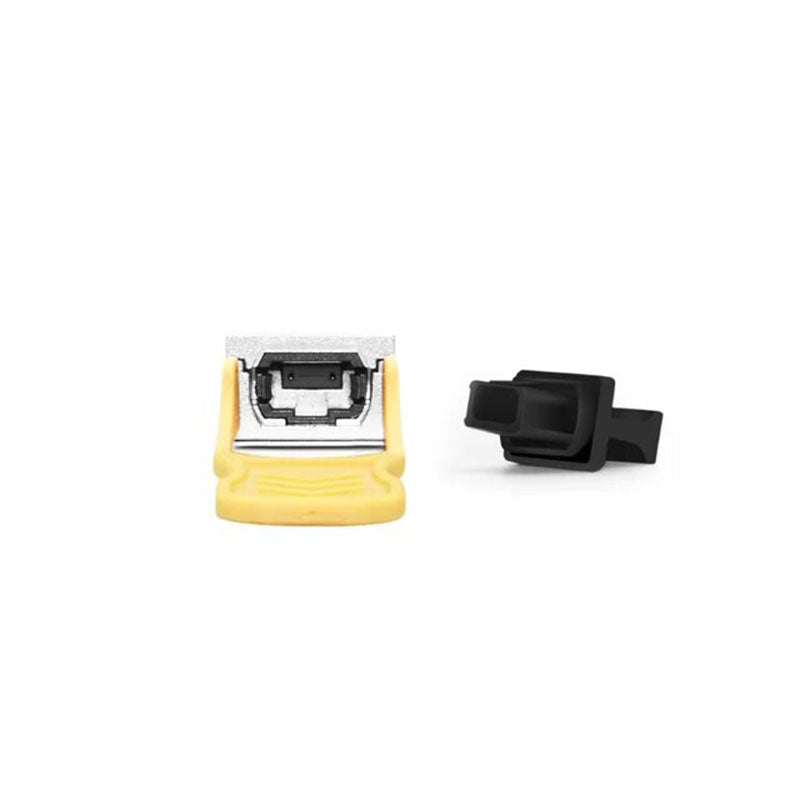

QSFP28-100G-SR4 100Gbps QSFP28 SR4 Transceiver, Multi Mode, 100m Reach

QSFP28-100G-SR4 100Gbps QSFP28 SR4 Transceiver, Multi Mode, 100m Reach

Regular price $38.57 USD
Regular price Sale price $38.57 USD
Sale Sold out

1 Description

The 100G QSFP28 transceiver modules are designed for use in 100 Gigabit Ethernet links over multimode fiber. They are compliant with the IEEE 802.3bm 100GBASE-SR4 and CAUI-4. Digital diagnostics functions are available via the I2C interface as specified by the QSFP28 MSA.

2 Product Structure

  • Hot-pluggable QSFP28 form factor
  • Supports 103.1Gb/s aggregate bit rates
  • Power dissipation < 3.5W
  • RoHS-6 compliant
  • Commercial case temperature range of 0°C to 70°C
  • Single 3.3V power supply
  • Maximum link length of 100m on OM4 Multimode Fiber (MMF)
  • 4x25Gb/s 850nm VCSEL-based transmitter
  • 4x25G electrical interface
  • Single MPO12 receptacle
  • I2C management interface

3 Application Scenario

  • 100GBASE-SR4 100G Ethernet
  • Data Center Interconnect
  • Infiniband QDR and DDR interconnects
  • Enterprise networking

4 Order Information

Part Number

Product Description

QSFP28-100G-SR4

100G QSFP28 SR4 Transceiver,850nm, MTO/MPO, 100m,0°C~+70°C, with DDM
