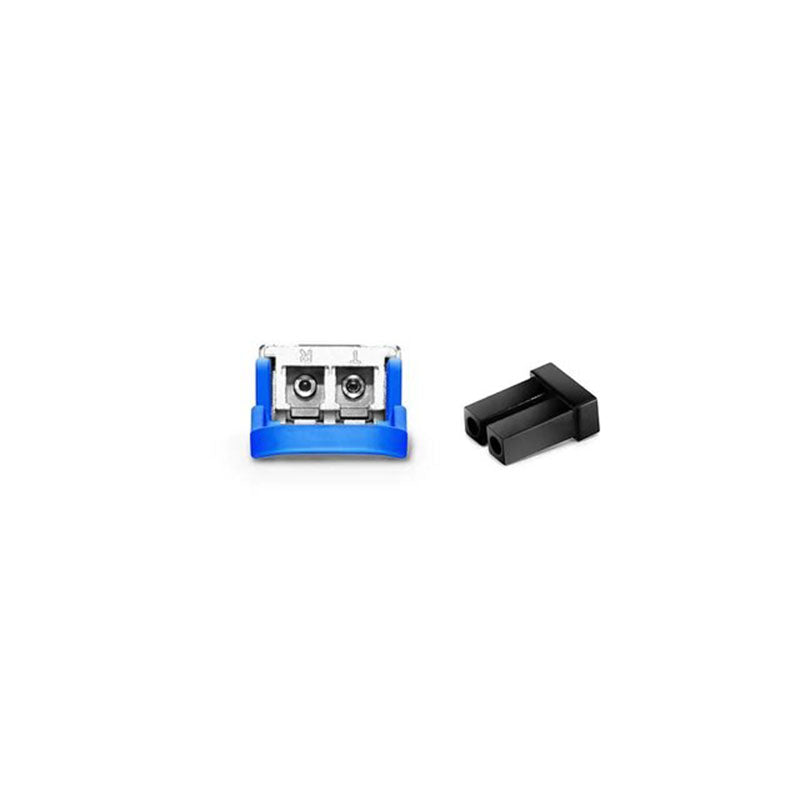

QSFP28-112G-LR4 112Gbps QSFP28 Transceiver, Single Mode, 10km Reach

1 Product Features

• Supports multi-rate (100GBASE 100GE and OTU4); from 103.1Gb/s to 111.8Gb/s aggregate;
• Lane bit rate 25.78 Gb/s 100GE, 27.95 Gb/s OTU4;
• Up to 10km transmission on SMF;
• LAN WDM DML laser and PIN receiver;
• High speed I/O electrical interface (CAUI-4);
• I2C interface with integrated Digital Diagnostic monitoring;
• QSFP28 MSA package with duplex LC connector;
• Single +3.3V power supply;
• Support HW TX_DIS and RX_LOS for telecom application;
• Maximum power consumption 3.5 W;
• Operating case temperature: 0 to +70 °C;
• Compliant to IEEE 802.3bm, SFF-8665 and SFF-8679;
• Complies with EU Directive 2011/65/EU (RoHS 6/6).

2 Application Scenario

• 100GBASE-LR4

3 Order Information
