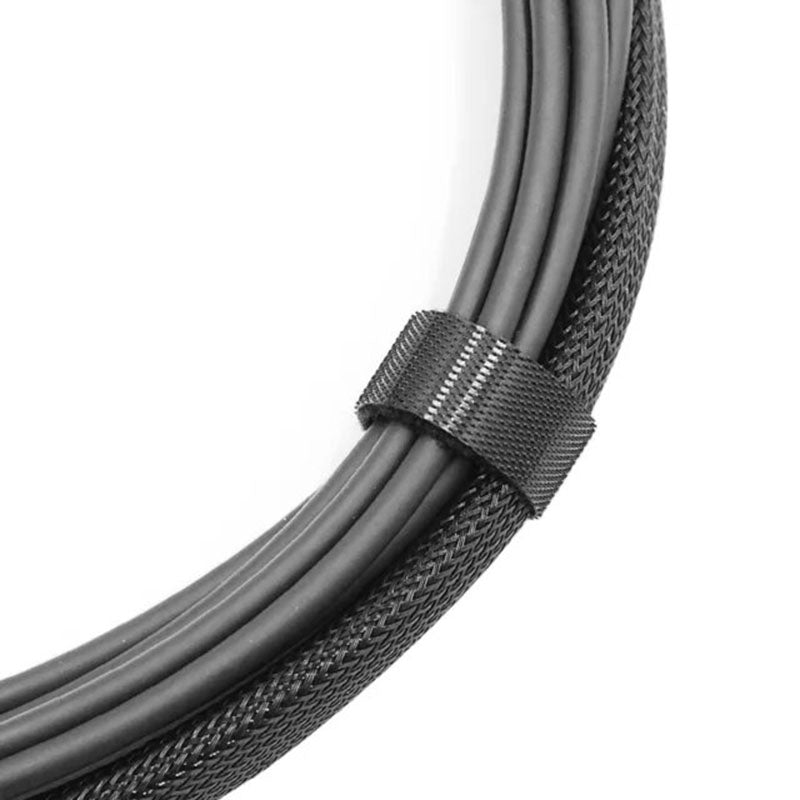

QSFP28-4SFP28-PC1M 100Gbps QSFP28 to 4xSFP28 Direct Attach Cables

QSFP28-4SFP28-PC1M 100Gbps QSFP28 to 4xSFP28 Direct Attach Cables

Regular price $55.43 USD
Regular price Sale price $55.43 USD
Sale Sold out

1 Description

QSFP28 passive copper cable assembly feature eight differential copper pairs,providing four data transmission channels at speeds up to 28Gbps per channel,and meets 100G Ethernet,25G Ethernet and Infini Band Enhanced Data Rate(EDR) requirements.Available in a broad rang of wire gages-from 26AWG through 30AWG-this 100G copper cable assembly features low insertion loss and low cross talk.

2 Product Features

  • Compatible with IEEE 802.3bj,IEEE 802.3by and InfiniBand EDR
  • Supports aggregate data rates of 100Gbps
  • Optimized construction to minimize insertion loss and cross talk
  • Backward compatible with existing QSFP+ connectors and cages
  • Pull-to-release slide latch design
  • 26AWG through 30AWG cable
  • Straight and break out assembly configurations available
  • Customized cable braid termination limits EMI radiation
  • Customizable EEPROM mapping for cable signature
  • RoHS compliant

3 Application Scenario

  • Switches,servers and routers
  • Data Center networks
  • Storage area networks
  • High performance computing
  • Telecommunication and wireless infrastructure
  • Medical diagnostics and networking
  • Test and measurement equipment

4 Order Information

Part Number

Product Description


100G QSFP28 to 4xSFP28 Direct Attach Cable, 1m (3ft), AWG 30, 0ºC ~ +70ºC
