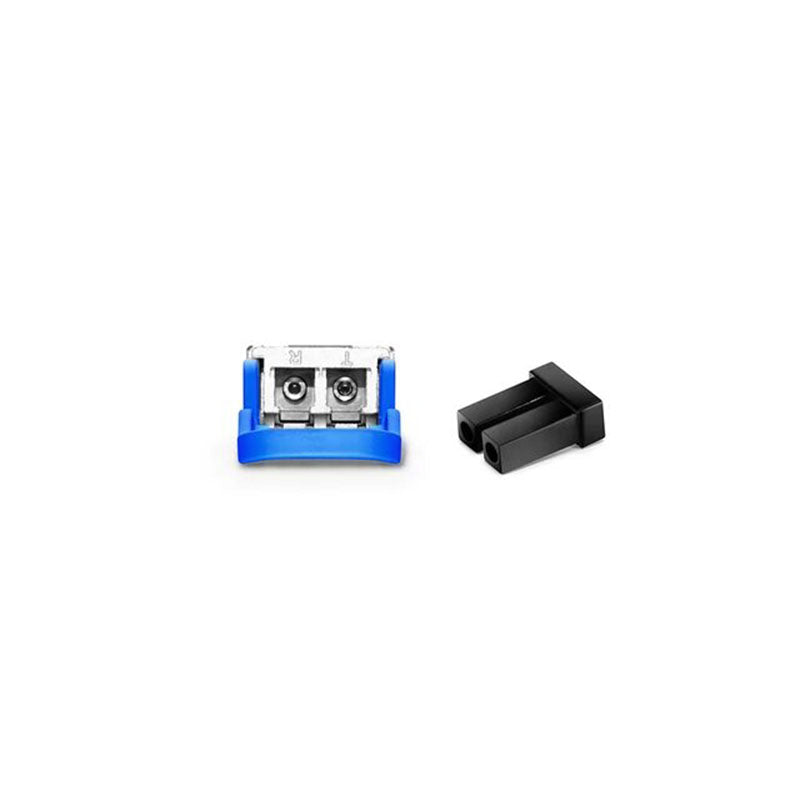

QSFPP-40G-IR4 40Gbps QSFP+ Transceiver, Single Mode, 2km Reach

QSFPP-40G-IR4 40Gbps QSFP+ Transceiver, Single Mode, 2km Reach

Regular price $137.14 USD
Regular price Sale price $137.14 USD
Sale Sold out

1 Description

The QSFPP-40G-IR4 is a transceiver module designed for 2km optical communication applications. The design is compliant to 40GBASE-IR4 of the IEEE P802.3ba standard. The module converts 4 inputs channels (ch) of 10Gb/s electrical data to 4 CWDM optical signals, and multiplexes them into a single channel for 40Gb/s optical transmission.

Reversely, on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4 CWDM channels signals, and converts them to 4 channel output electrical data.

The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311 and 1331nm as members of the CWDM wavelength grid defined in ITU-T G694.2. It contains a duplex LC connector for the optical interface and a 38-pin connector for the electrical interface. To minimize the optical dispersion in the long-haul system, single-mode fiber (SMF) has to be applied in this module.

The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.

The module operates from a single +3.3V power supply and LVCMOS/LVTTL global control signals such as Module Present, Reset, Interrupt and Low Power Mode are available with the modules. A 2-wire serial interface is available to send and receive more complex control signals and to obtain digital diagnostic information. Individual channels can be addressed and unused channels can be shut down for maximum design flexibility.

2 Product Features

  • 4 CWDM lanes MUX/DEMUX design
  • Up to 11.2Gbps per channel bandwidth
  • Aggregate bandwidth of > 40Gbps
  • Duplex LC connector
  • Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-IR4 Standard
  • QSFP MSA compliant
  • Up to 2km transmission
  • Compliant with QDR/DDR Infiniband data rates
  • Single +3.3V power supply operating
  • Built-in digital diagnostic functions
  • Temperature range: 0°C to 70°C
  • RoHS Compliant Part

3 Application Scenario

  • Rack to rack
  • Data centers Switches and Routers
  • Metro networks
  • Switches and Routers
  • 40G BASE-LR4 Ethernet Links

4 Order Information

Part Number

Product Description


1310nm, 40Gbps, LC, 2km, 0°C~+70°C, with DDM
