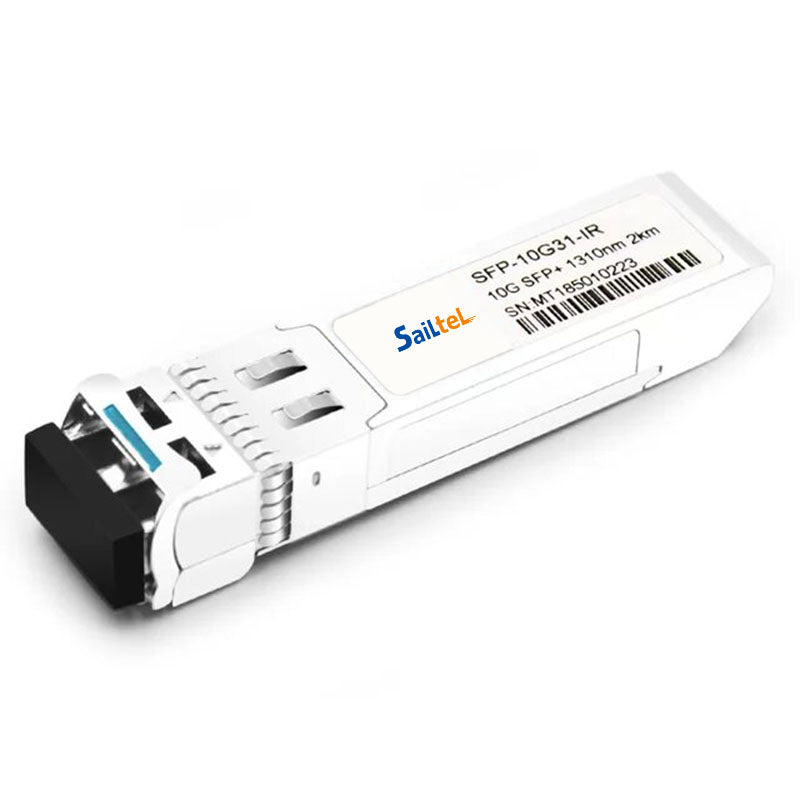

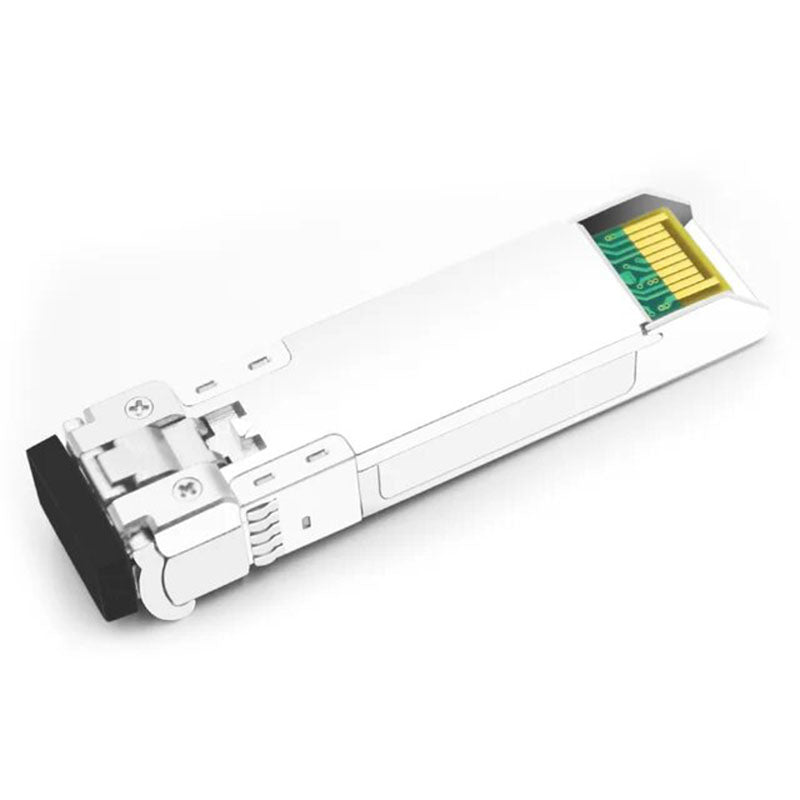

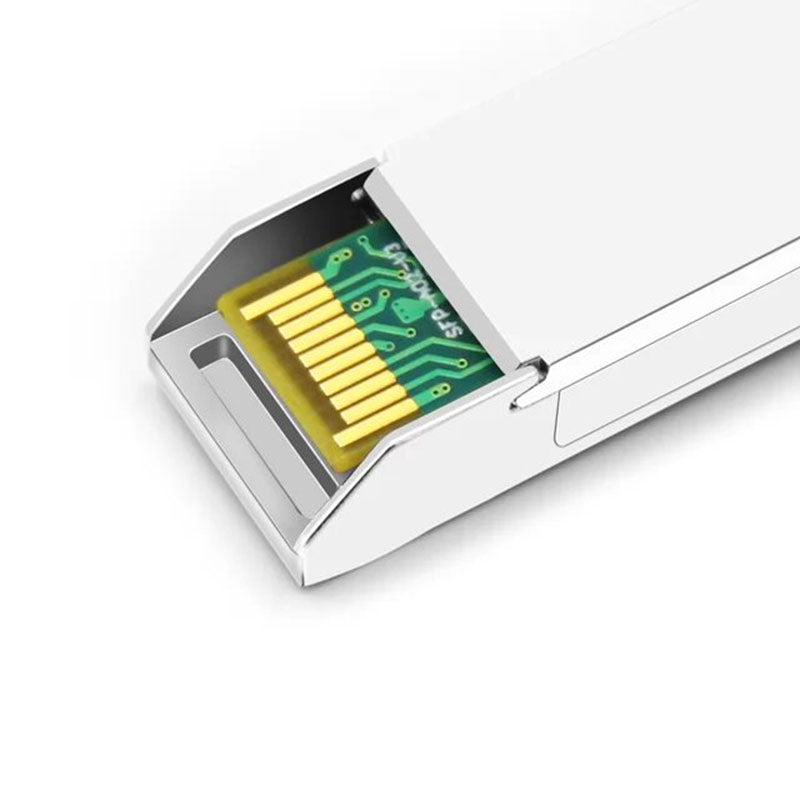

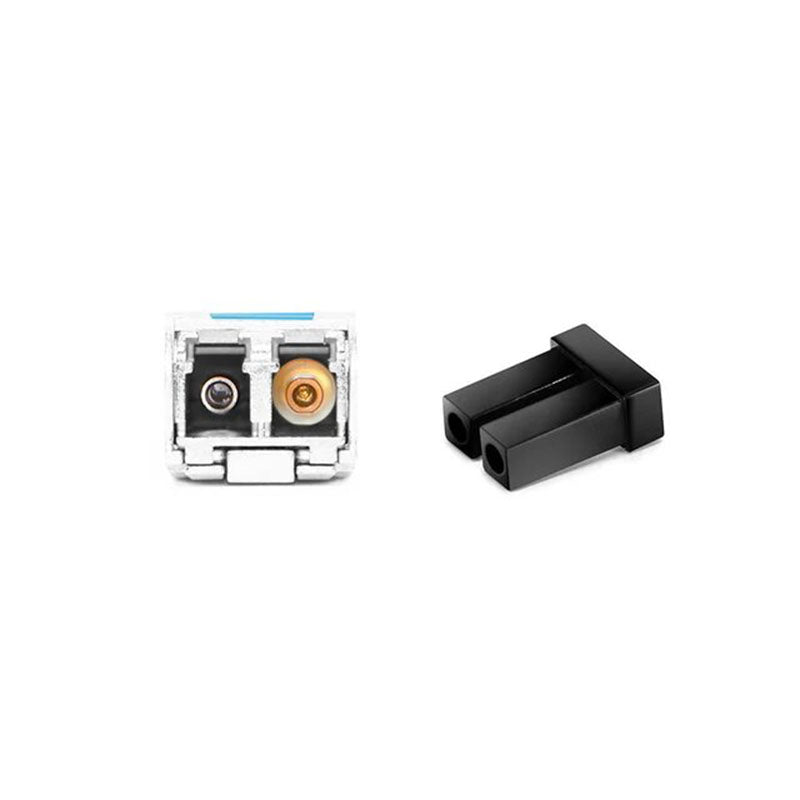

SFP-10G31-IR 10.3Gbps SFP+ Transceiver, Single Mode, 2km Reach

1 Description

The SFP+ transceivers are high performance, cost effective modules supporting data rate of 10Gbps and 2km transmission distance with SMF.

The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.

2 Product Features

• Supports 10.3Gbps bit rates
• Hot-pluggable SFP+ footprint
• Un-cooled 1310nm FP laser and PIN photo detector, Up to 2km for SMF transmission
• Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle
• Compatible with RoHS
• Single +3.3V power supply
• Real Time Digital Diagnostic Monitoring
• Operating case temperature: Standard: 0 to +70°C Industrial: -40 to +85°C

3 Application Scenario

• 10Gbps Optical systems
• LTE systems
• Other Optical links

4 Order Information
