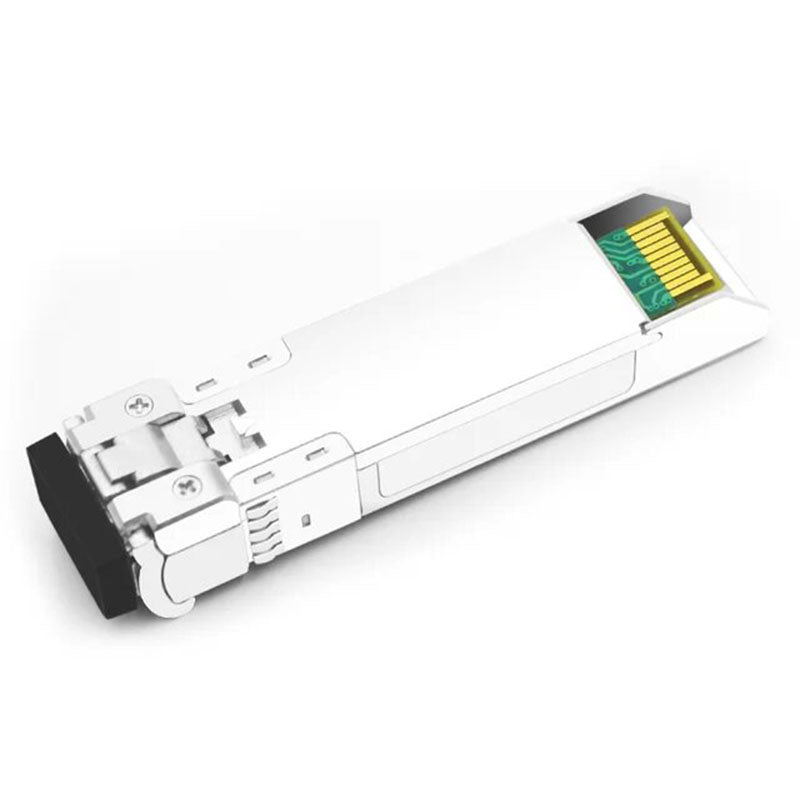

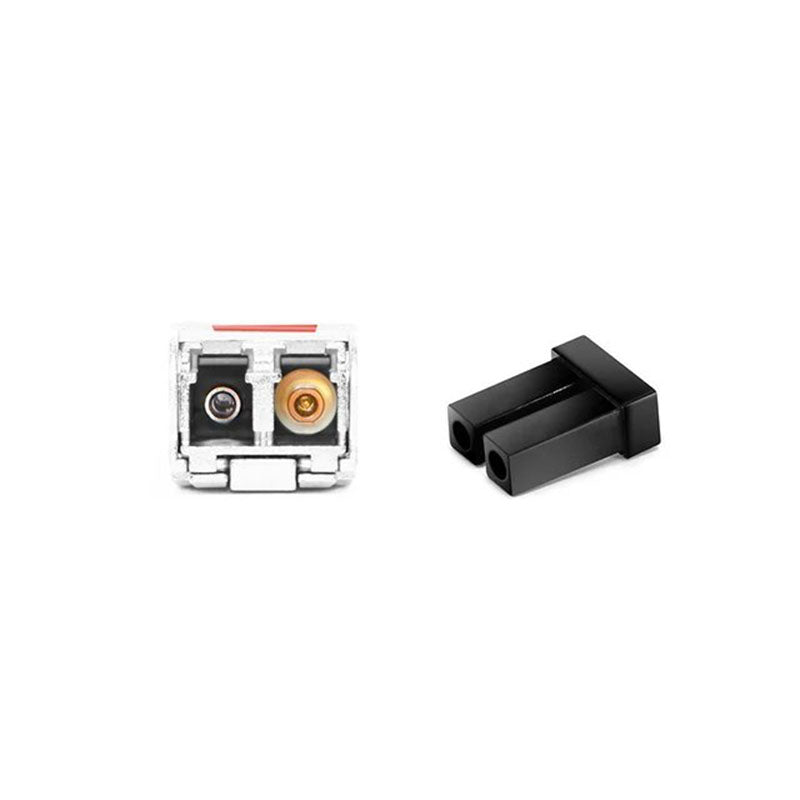

SFP-10G31-LRM 10.3Gbps SFP+ Transceiver, Multi Mode, 220m Reach

1 Description

The SFP+ transceivers are high performance, cost effective modules supporting data rate of 10Gbps and 220m transmission distance with MMF.

The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.

2 Product Features

• Supports up to 10.7Gbps bit rates
• Hot-pluggable SFP+ footprint
• 1310nm FP laser and PIN photodiode, Up to 220m for MMF transmission
• Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle
• Compatible with RoHS
• Single +3.3V power supply
• Real Time Digital Diagnostic Monitoring
• Operating case temperature: Standard: 0 to +70°C

3 Application Scenario

• 10Gbps Optical systems
• 10GBASE-LRM at 10.3125Gbps
• Other Optical links
