Required Host Support
Use a compatible 10G SFP+ port that supports 10GBASE-ZR optical transceivers.
Technical Specifications
| Parameter | Value |
|---|---|
| Reach | 120km |
Application Scenarios
Typical applications for extended-reach 10Gbps optical connections using single-mode fiber.
Data Center Interconnects
Designed for long-distance 10GbE connections between distributed data center facilities.
Enterprise Backbone Networks
Provides reliable high-speed backbone connectivity over single-mode fiber infrastructure.
Telecommunication Networks
Suitable for metro and access network applications requiring extended optical reach.
Connectivity Solutions
Typical network deployment scenarios using compatible optical transceivers and fiber connections.
Compatible Components
Connect two network switches using compatible optical transceivers and fiber cabling for reliable high-speed data transmission.
Compatible Components
Enable high-speed connectivity between network switches and servers through compatible optical transceivers and fiber cabling.
Compatible Components
Extend fiber networks to Ethernet devices using optical transceivers, media converters, and copper Ethernet connections.
Compatibility & Device Support
Compatibility requirements for 10GBASE-ZR SFP+ optical transceivers
Port Compatibility
A matching SFP+ form factor alone does not guarantee compatibility. Verify host-device support and vendor-specific transceiver requirements.
Cabling & Connection Guide
Recommended cabling path for 10GBASE-ZR SFP+ single-mode fiber links
Use a compatible SFP+ host and duplex LC single-mode fiber for extended optical links up to 120km.
Connection Path

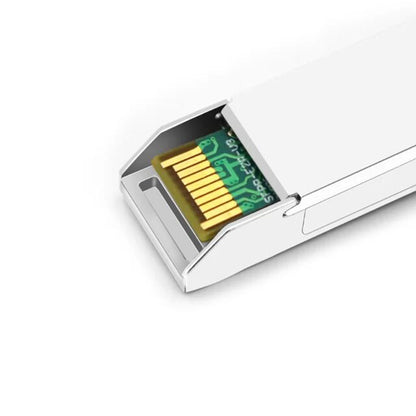

SFP+ Host Port

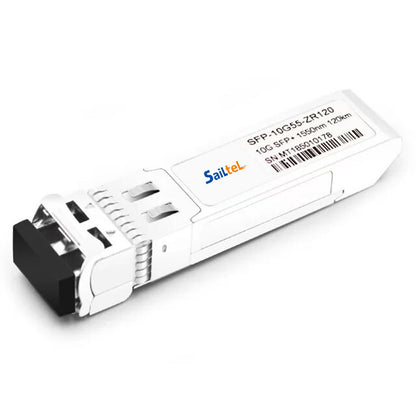

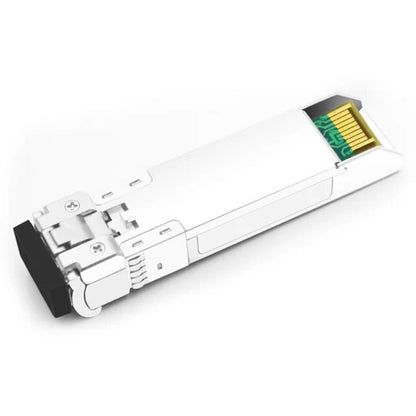

10GBASE-ZR SFP+

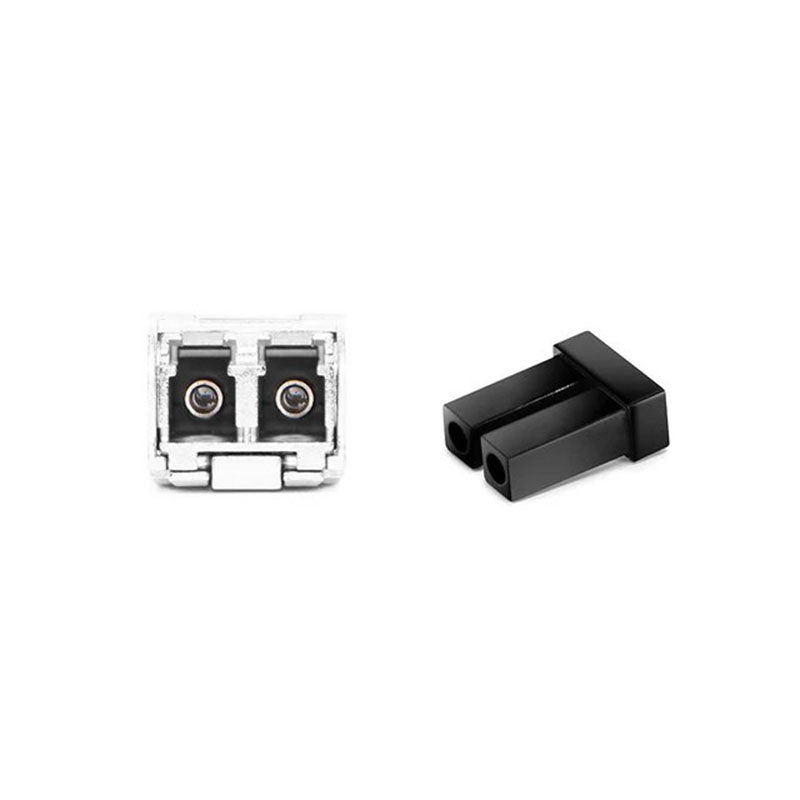

Duplex LC
Single-Mode Fiber
Up to 120km
Q&A
What is a ZR-class 10G SFP+ transceiver used for? ⌄
ZR-class 10G SFP+ transceivers are designed for long-distance 10GbE optical links over single-mode fiber. The exact supported reach depends on the selected model.
How do I choose between 80km, 100km, and 120km ZR SFP+ models? ⌄
Select the model according to the required link distance and optical link budget. Check the Reach and optical specifications of the exact product before ordering.
What fiber type should I use with a ZR SFP+ transceiver? ⌄
ZR-class SFP+ transceivers are designed for single-mode fiber links. Check the exact product specifications for the required connector and optical parameters.
Can a ZR SFP+ transceiver be used for short-distance links? ⌄
Check the optical power budget and receiver overload specifications before using a long-reach ZR transceiver on a short link. Optical attenuation may be required depending on the model and link conditions.
What parameters must match at both ends of a ZR optical link? ⌄
Both ends should use compatible data rates, wavelengths, fiber types, connector interfaces, and optical power budgets. Host-device compatibility and transceiver coding should also be verified.
